ARCSTRAP
ARCSTRAP is a vertical linking element used for flying double row ARCS configurations. The main U-
channel section is used to physically link ARCOUPL bars (front and rear) between the top row of
ARCS enclosures (bottom ARCOUPL bars) and bottom row ARCS enclosures (top ARCOUPL bars).
Locking nuts with cotter pin safeties are then used to secure ARCSTRAP.

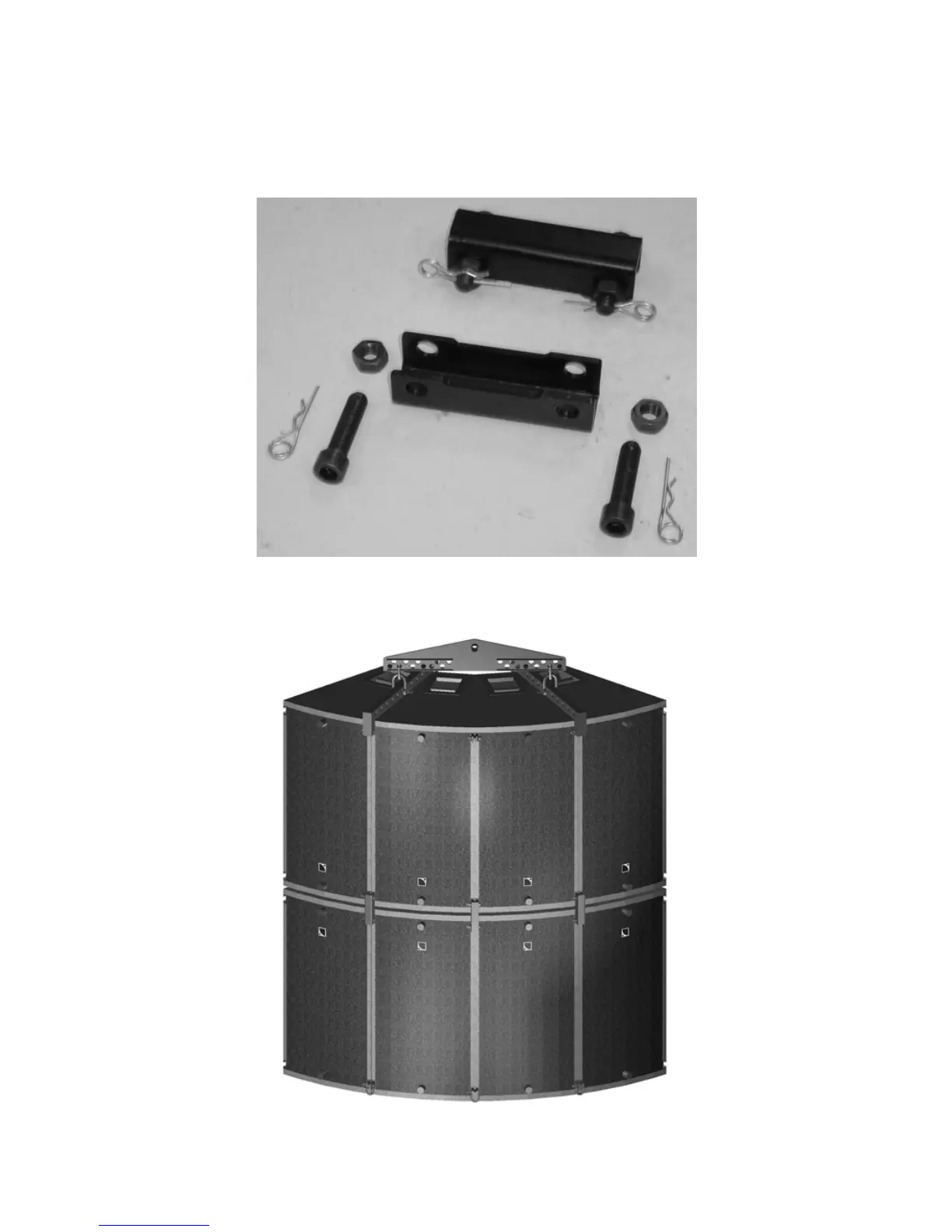

Figure 12: ARCSTRAP
Figure 13: Example of ARCSTRAP, BUMP3, LIFTBAR Requirements for a 2 row x 4 element ARCS Array
