L-Acoustics ARCS - Figure 14: MLS Switches on the Rear Panel of La24 A and La48 A Amplifiers; Table 3: L-ACOUSTICS La24 A and La48 A Power Amplifier Specifications

L-ACOUSTICS ARCS Manual V2.0 2/13/2003 17

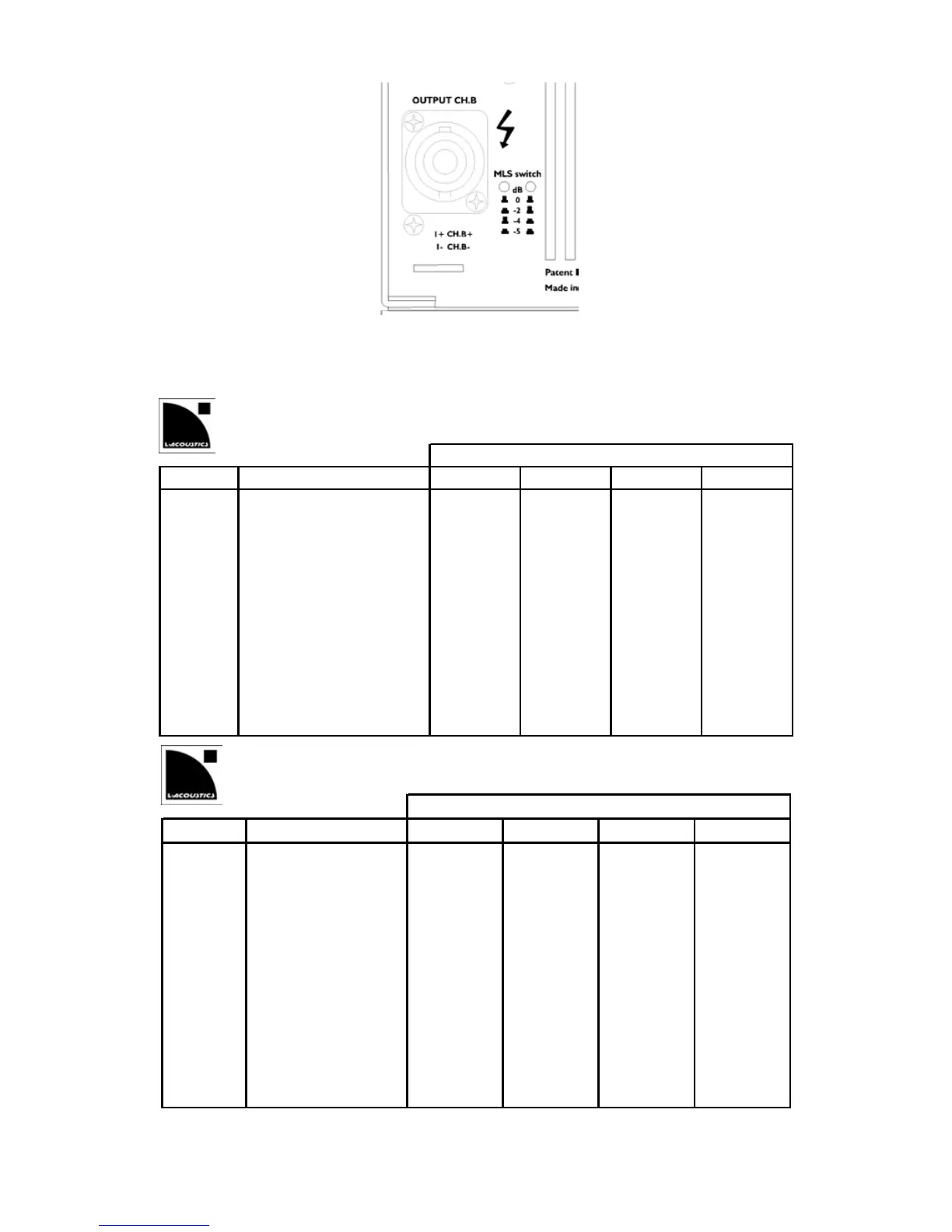

Figure 14: MLS switches on the rear panel of LA24a and LA48a amplifiers
Table 3: L-ACOUSTICS LA24a and LA48a Power Amplifier Specifications
L-ACOUSTICS LA 24a POWER MATRIX
MLS SWITCH SETTING
LOAD CONFIGURATION -5 dB -4 dB -2 dB 0 dB
16 ohms Stereo (2 channel) 160 200 340 520
8 ohms Stereo (2 channel) 300 400 700 1100
4 ohms Stereo (2 channel) 600 750 1300 1500
2.7 ohms Stereo (2 channel) 1000 1180 1465 1635
2 ohms Stereo (2 channel) 1200 1400 1550 1700
L-ACOUSTICS LA 48a POWER MATRIX
MLS SWITCH SETTING
LOAD CONFIGURATION -5 dB -4 dB -2 dB 0 dB
16 ohms Stereo (2 channel) 220 260 410 650
8 ohms Stereo (2 channel) 430 520 820 1300
4 ohms Stereo (2 channel) 830 1000 1600 2300
2.7 ohms Stereo (2 channel) 1380 1665 2130 2700
2 ohms Stereo (2 channel) 1660 2000 2400 2900
