L-Acoustics ARCS - Figure 25: ARCBUMP Rigging Procedure for a 3 Enclosure Horizontal ARCS Array

L-ACOUSTICS ARCS Manual V2.0 2/13/2003 45

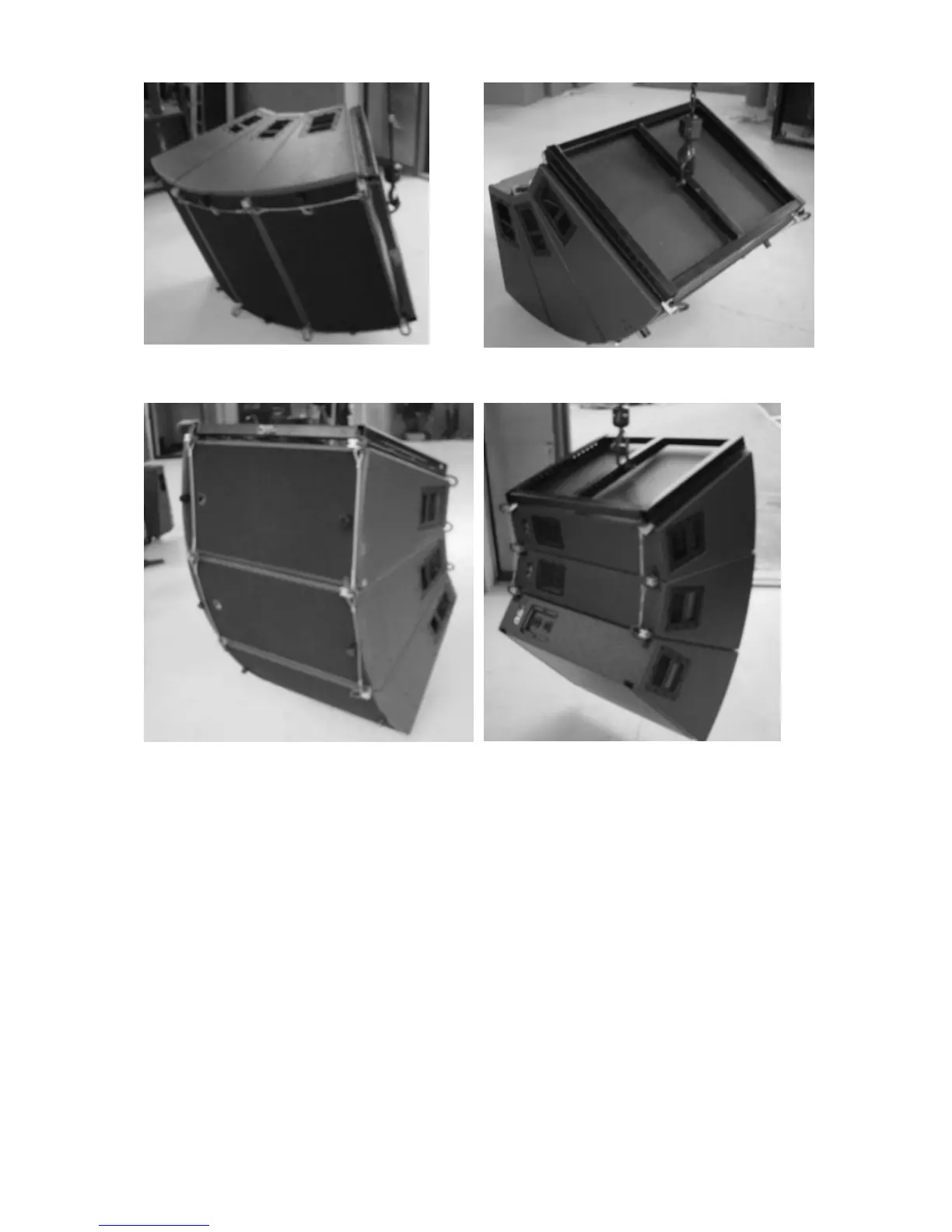

(11) Motor attached to pick point – start to raise
the array
(12) As the array is raised, use the rear handles to
rotate the system into the correct orientation
(13) The final flown assembly (front view)
(14) The final flown assembly (rear view)
Figure 25: ARCBUMP rigging procedure for a 3 enclosure horizontal ARCS array
