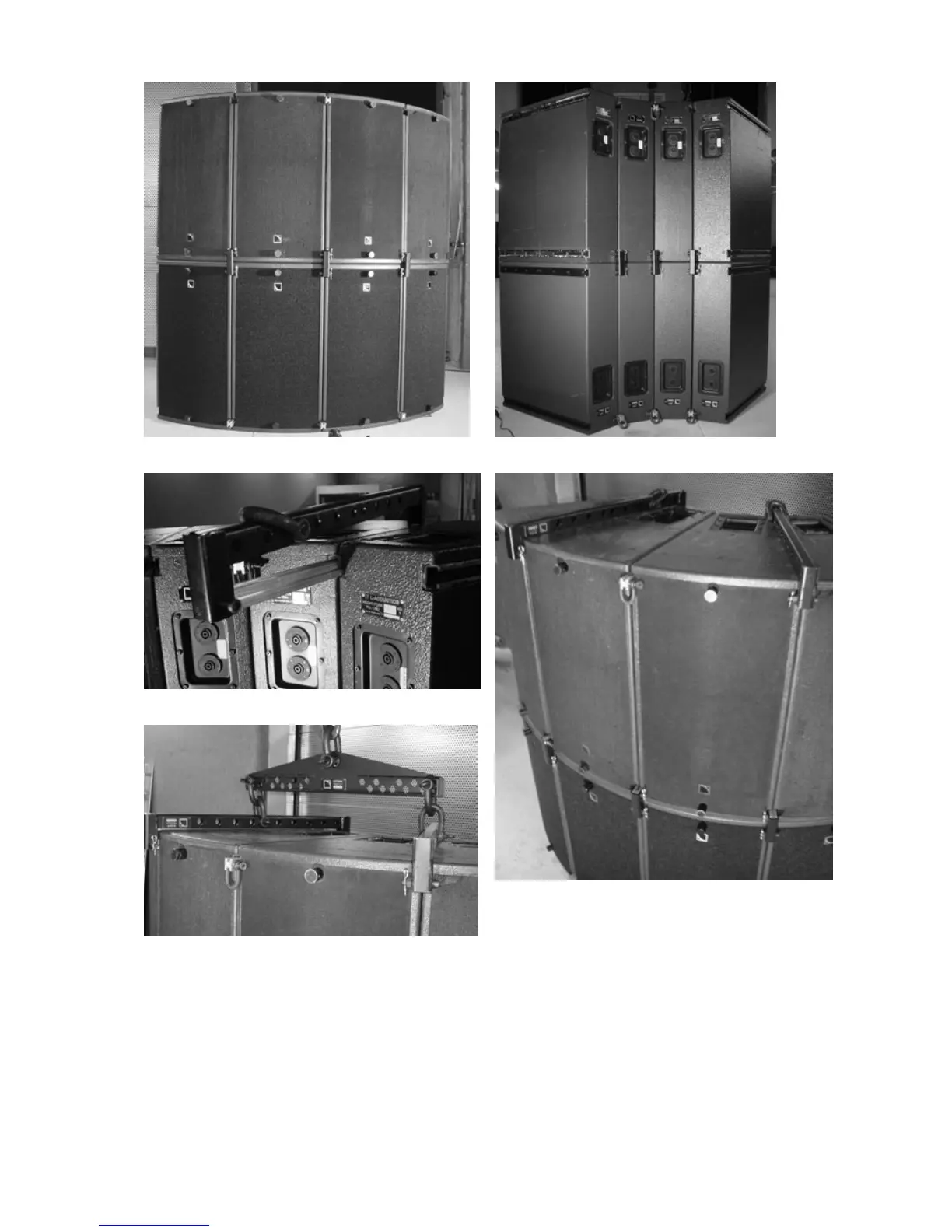

L-ACOUSTICS ARCS Manual V2.0 2/13/2003 42
(5) Front detail of ARCSTRAP attachment
(6) Rear detail of ARCSTRAP attachment
(7) BUMP3 slides into position from the rear
(9) LIFTBAR attached to 2 x BUMP3 (refer to
Rigging Reference Chart for hole selection)
(8) 2 x BUMP3 required
To Next Page
