Corrective maintenance
D/R - Trapdoors
Tools
• torque screwdriver
• T25 Torx bit
• at plastic tool
Repair kit
G03646 - KR compression driver 3" L2(D)
G03650 - KR diaphragm 3'' L2(D)
×8
S100033
M5×25 Torx
Prerequisite
Rear grill removed. See D/R - Rear grill (p.102).

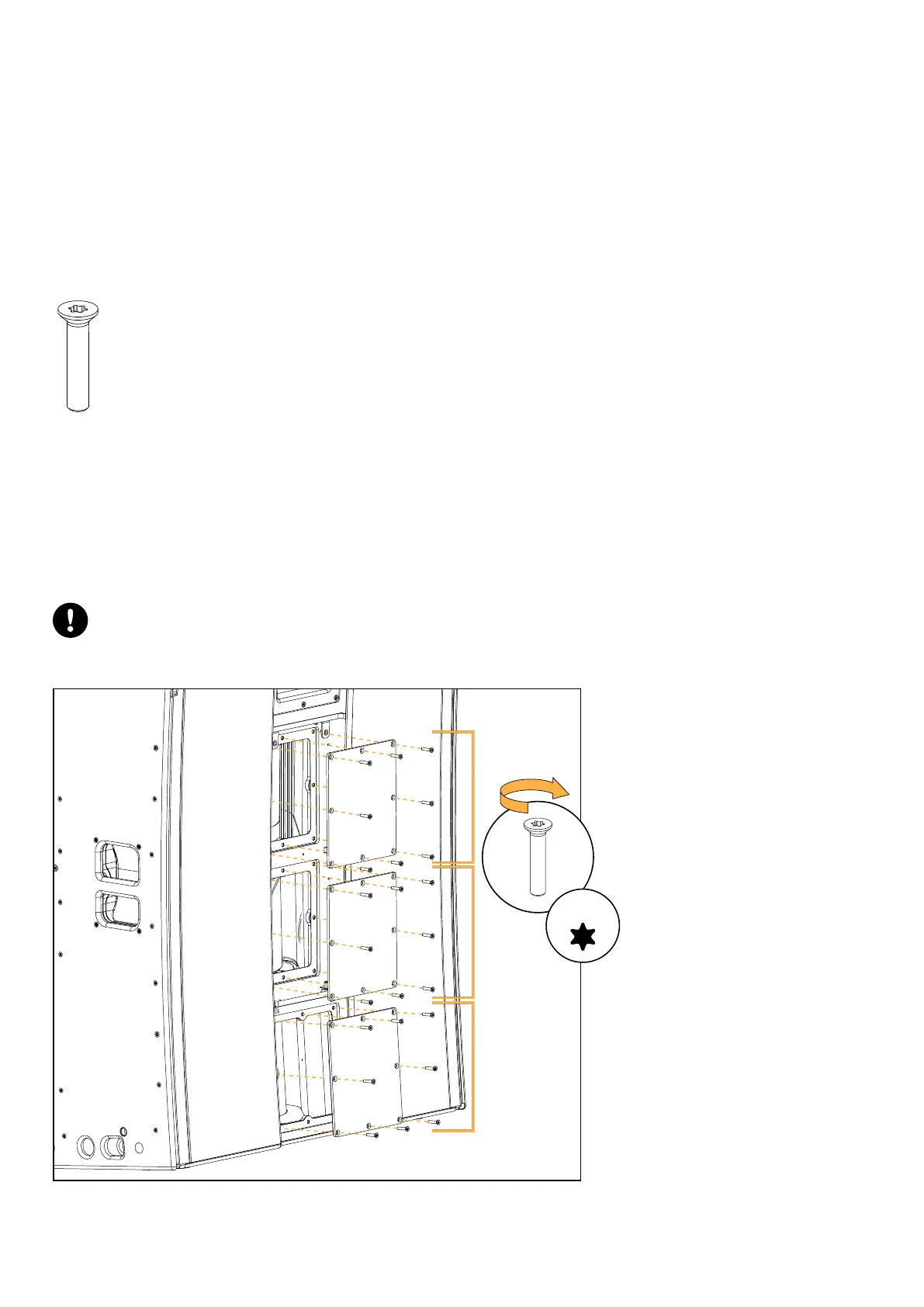

Exploded view
For safety reasons, always use the new screws and spare parts provided in the KR.
If no new screws are available, use blue threadlocker.
Use a at plastic tool as a lever to remove the trapdoors.
x8
3 N.m
T25
L2 owner's manual (EN) version 2.0 103
