Rigging procedures
Adjusting L2-CHARIOT site angle with K2-JACK
Type of deployment stacked array
Rigging accessories K2-JACK
L2-CHARIOT
Min number of operators 2
Prerequisite
K2-JACK is secured to L2-CHARIOT/L2D-
CHARIOT.
See Attaching K2-JACK stabilizers to L2-CHARIOT/L2D-CHARIOT (p.74).
Procedure

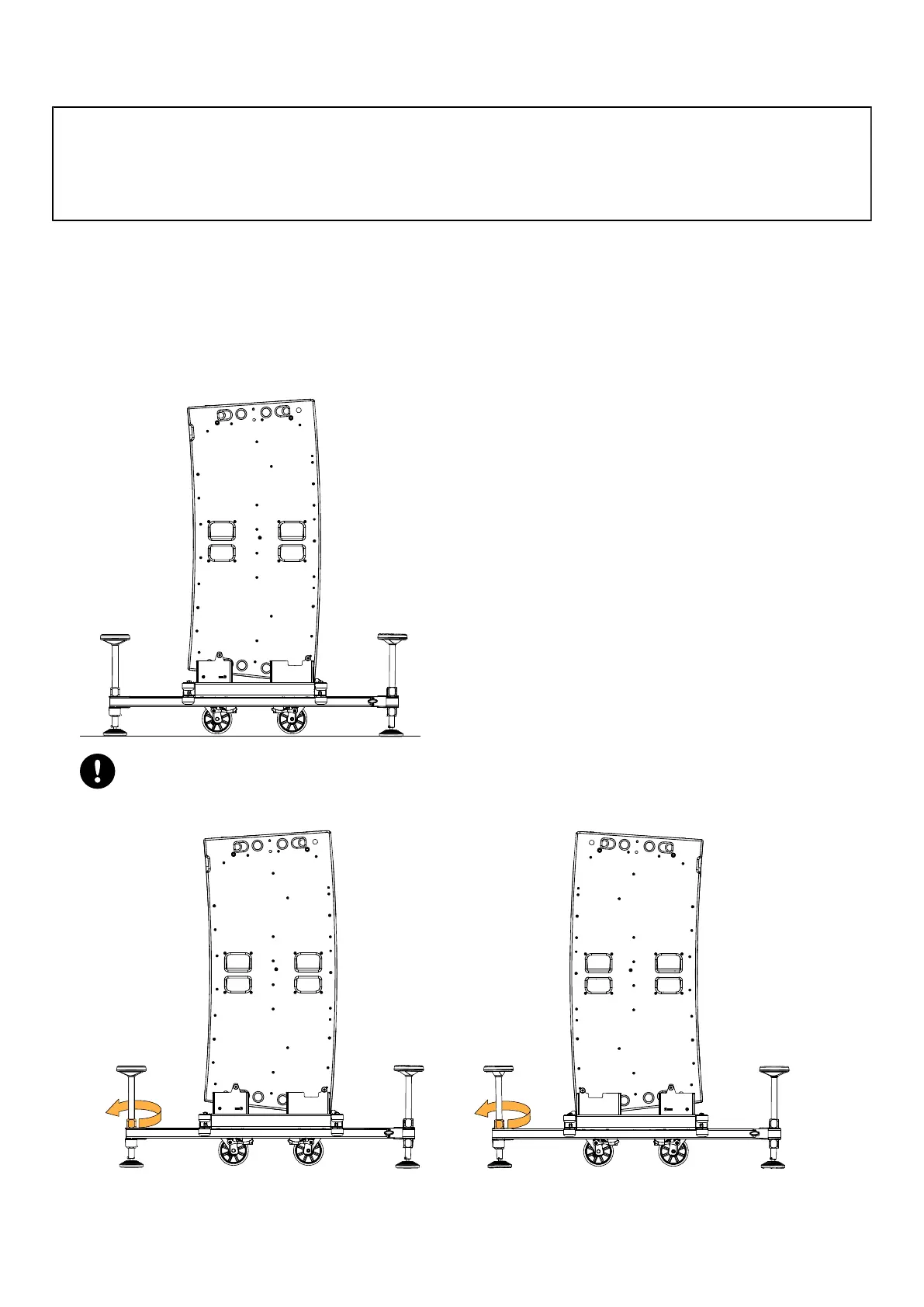

1. Verify the wheels are as close as possible to the ground without touching it.
Loosen the bolts by hand only.
2. Loosen the front or the rear stabilizer bolts, depending on the target site angle.
Negative site angle Positive site angle
L2 owner's manual (EN) version 2.0 77
