Electro-acoustical description
Connectors
L2
1 × 37-point male connector (32 points used)
L2D
1 × 37-point male connector (32 points used)

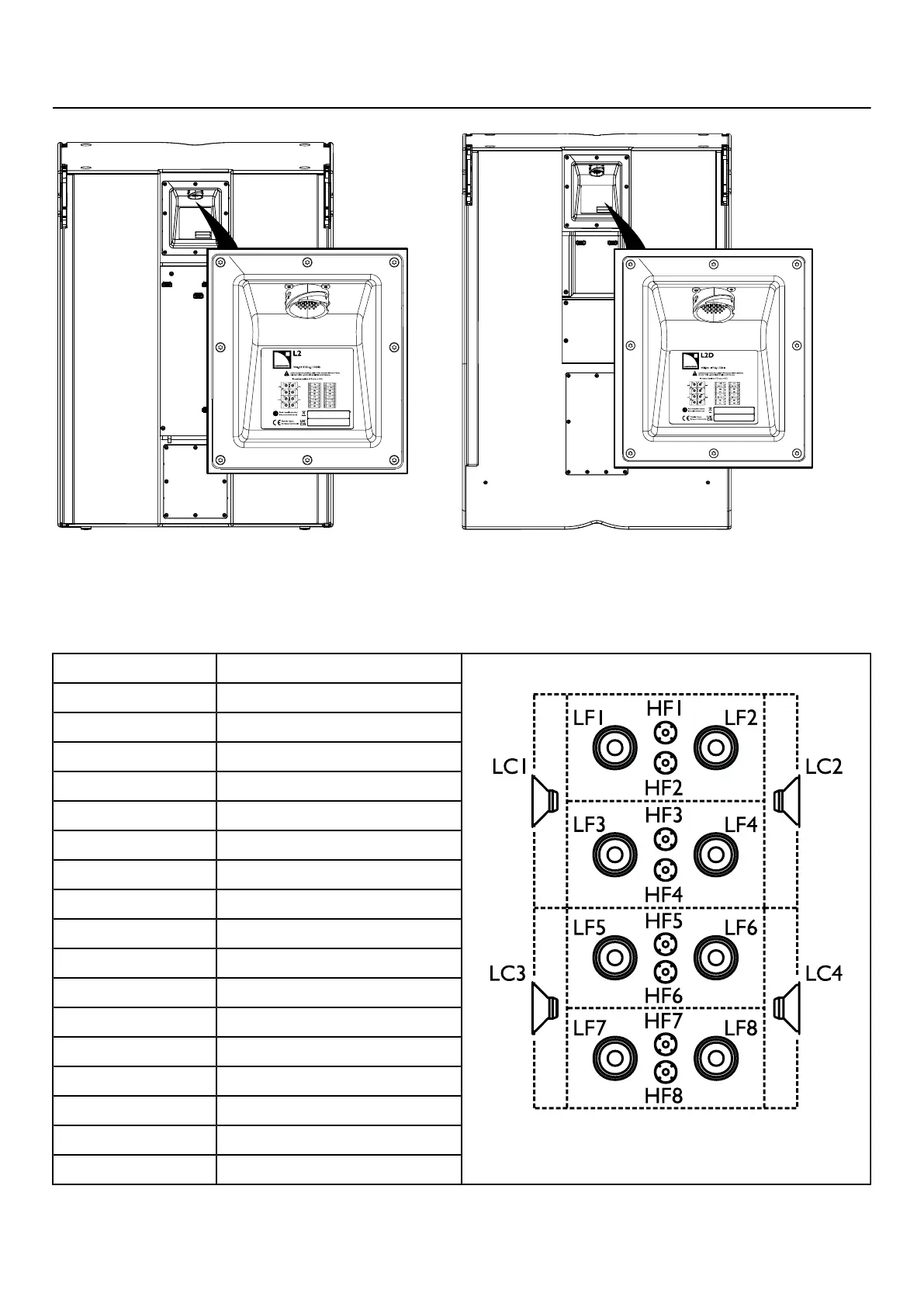

Internal pinout for L-Acoustics active 16-channel enclosures
connector points Transducer connectors
A/B LC1
C/D LF1/LF2
E/F HF1
G/H HF2
J/K LC2
L/M LF3/LF4
N/P HF3
R/S HF4
T/U LC3
V/W LF5/LF6
X/Y HF5
a/b HF6
c/d LC4
e/f LF7/LF8
g/h HF7
j/k HF8
m/n/p/r/s not used
viewed from the front
L2 owner's manual (EN) version 2.0 23
