Corrective maintenance

D/R - Rear grill

Tools

• torque screwdriver

• T25 Torx bit

Repair kit

G03646 - KR compression driver 3" L2(D)

G03650 - KR diaphragm 3'' L2(D)

×16

S100086

M5×16 Torx

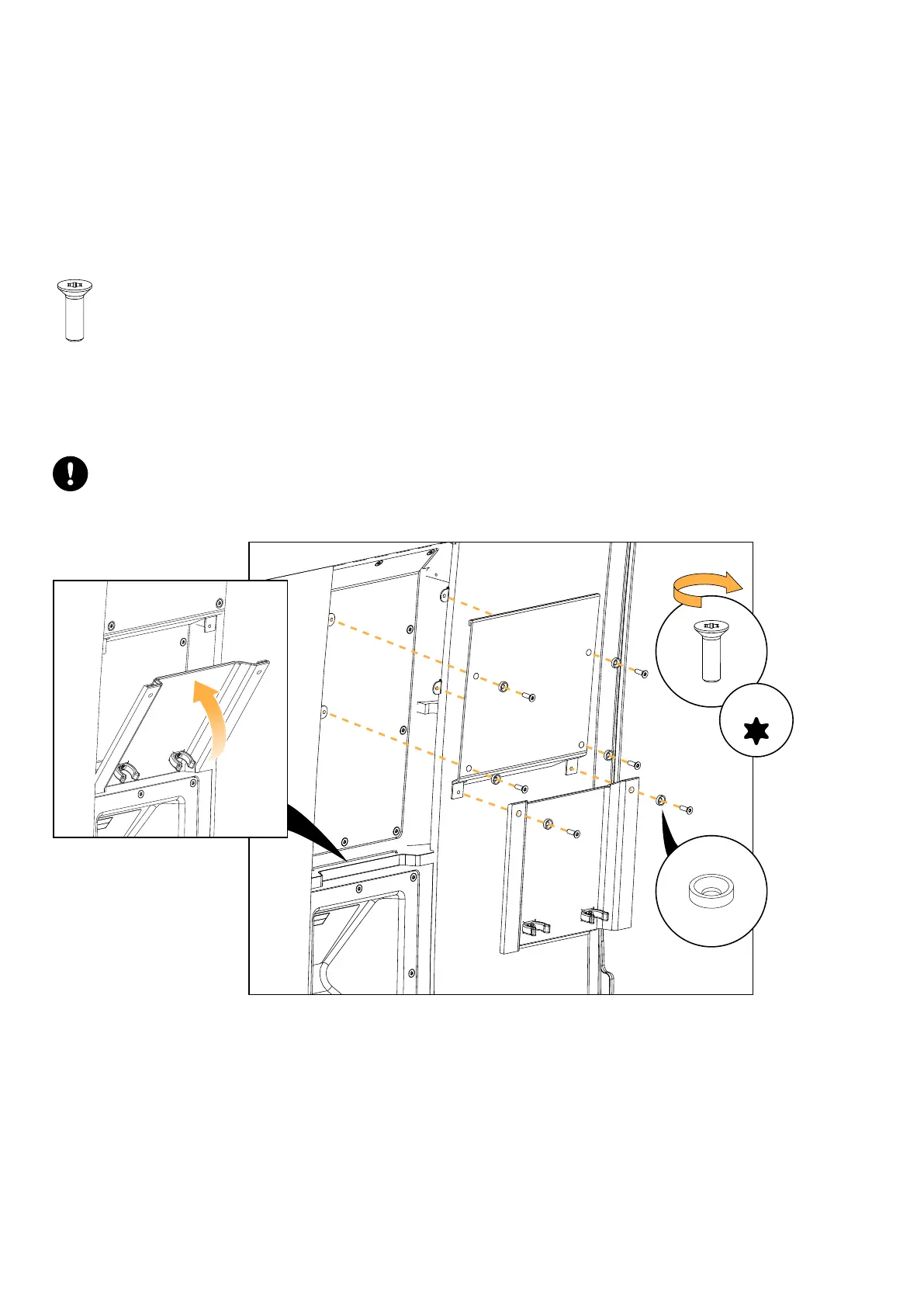

Exploded view

For safety reasons, always use the new screws and spare parts provided in the KR.

If no new screws are available, use blue threadlocker.

Keep the washers for reassembly.

3 N.m

T25

L2 owner's manual (EN) version 2.0 119

Table of Contents3
Safety6
Instructions6
Introduction8
L2/L2D 16-Channel Active Progressive Curvature WST Enclosures8
How to Use this Manual9
Revision History9
System Components10
System Component Illustrations11
Electro-Acoustical Description14
Polar Pattern14
Adjustable Ns15
Directivity19
Preset Description22
Connectors23
Rigging System Description24
L2/L2D24
Rigging Elements28
L2-Bump28
L2-Bar30
L2-Rigbar31
Delta 1.5T33
La-Rakmount34
K2-Jack35
L2-Lasermount36
Storage and Handling37
L2-Roll37
L2-Chariot38
L2D-Chariot39
L2-Chariotcov40
L2D-Chariotcov41
L2-Chariotlid42
L2D-Chariotlid43
L2-Bumpflight44
Mechanical Safety45
Loudspeaker ConGurations47
Line Source47
Line Source with Low-Frequency Element48
Rigging Procedures51
Securing L2/L2D on L2-CHARIOT/L2D-CHARIOT51
Flying57
Securing LA-RAK III on L2-BUMP with LA-RAKMOUNT57
Flying an L2/L2D Array with L2-BUMP and L2-BAR60
Flying an L2/L2D Array with L2-RIGBAR70
Adding a Pullback with L2-RIGBAR72
Stacking74
Attaching K2-JACK Stabilizers to L2-CHARIOT/L2D-CHARIOT74
Adjusting L2-CHARIOT Site Angle with K2-JACK77
Adjusting L2D-CHARIOT Site Angle with K2-JACK79
Transporting81
Mounting L2-CHARIOTLID/L2D-CHARIOTLID on L2/L2D81
Stacking Multiple L2-CHARIOT/L2D-CHARIOT84
Stacking Multiple L2-CHARIOTLID/L2D-CHARIOTLID85
Connection to la AmpliEd Controllers86
Corrective Maintenance87
Preparing Enclosures for Maintenance88
L2D106
SpeciCations124
L2D126
Ks28128
L2-Bump130
L2-Bar131
L2-Rigbar132
La-Rakmount133
Bpchain 1.5T134
K2-Jack135
L2-Lasermount136
Delta 1.5T137
L2-Chariot138
L2D-Chariot139
APPENDIX A: Recommendation for Speaker Cables142
APPENDIX B: Installing a Laser Inclinometer143
L2-Lasermount143
L2-Bump144
