L-Acoustics L Series User Manual

Rigging procedures

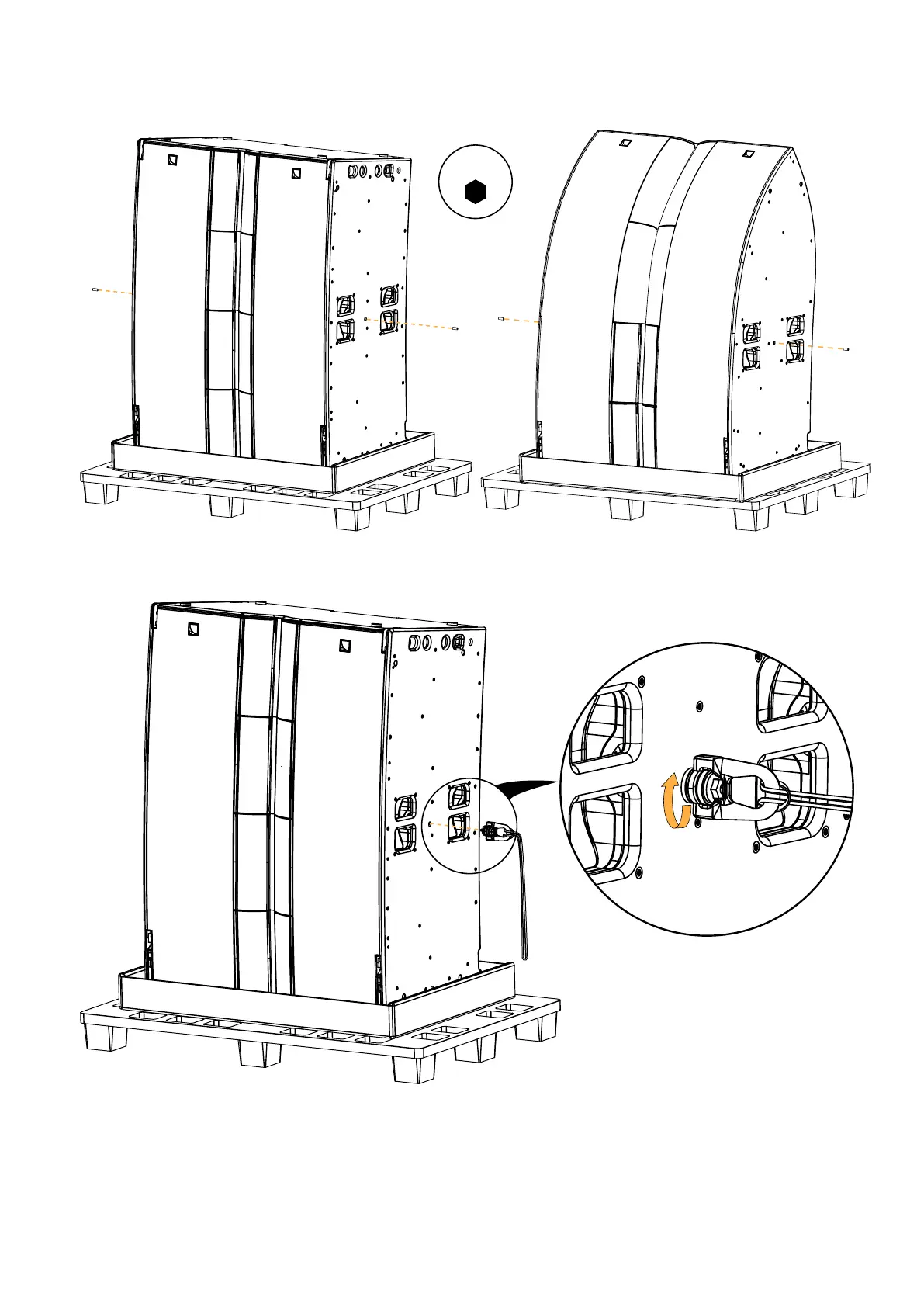

2. On each side of the enclosure, remove the screw at the center of gravity.
Use the screwdriver with a 8 mm hex socket.
8 mm
Retain the screws for reassembly.
3. Tighten the L2-ROLL rings to the enclosure by hand.
4. Secure L2-RIGBAR to BPCHAIN 1.5T and slightly raise the assembly.
52 L2 owner's manual (EN) version 2.0
