Corrective maintenance

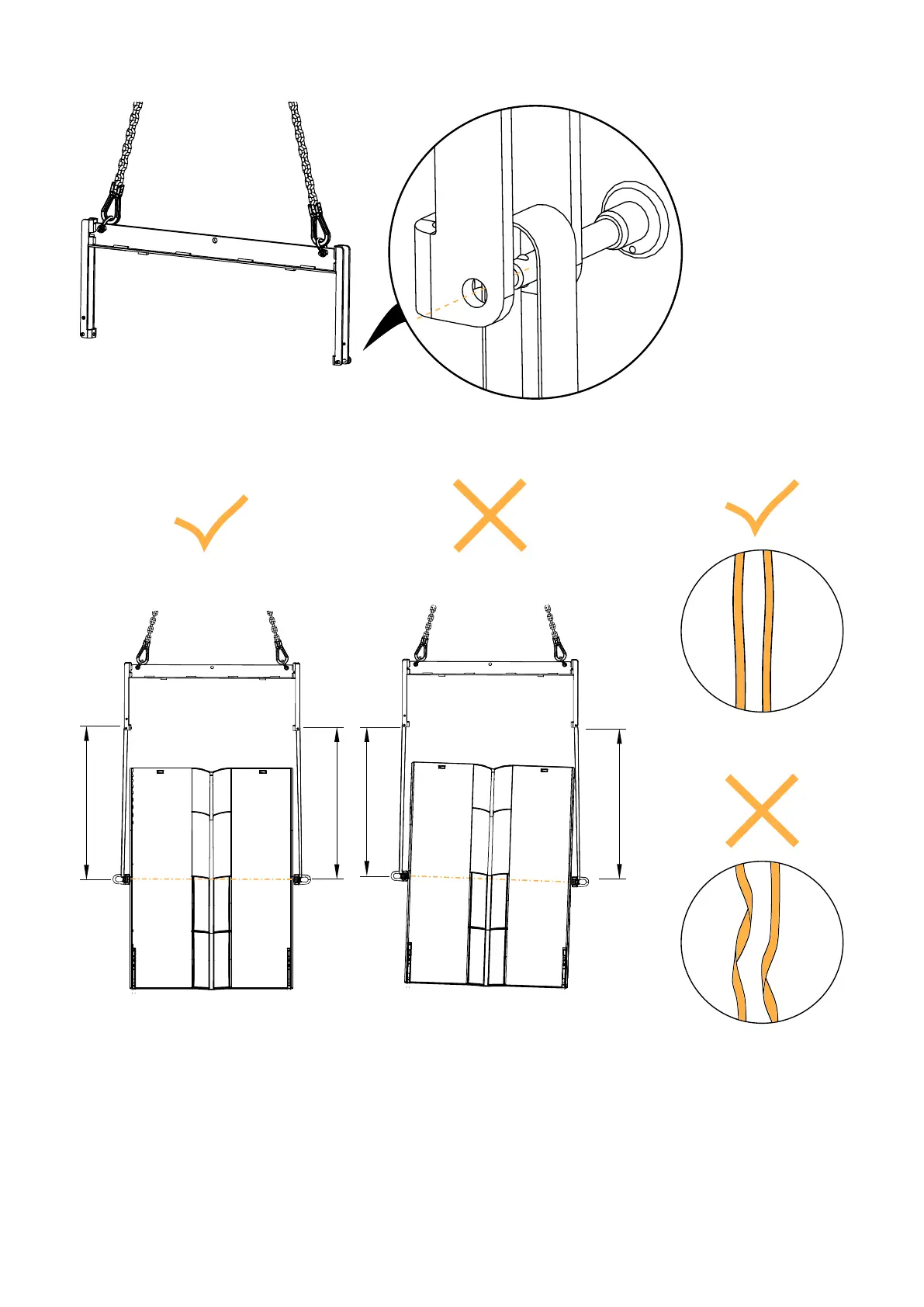

5. Secure the other ends of the straps to L2-RIGBAR through the ball-locking pins in their storage position.
6. Adjust the height so that the straps are taut but the enclosure is still on the ground.
Make sure the straps are the same length on both sides, and are not twisted.
7. Remove the chariot from the enclosure:
a) Slightly raise the array.
b) Hold the chariot with one hand. Remove both back pins.
c) Hold the chariot with one hand. Remove both front pins.
8. Slowly and carefully raise the enclosure about 40 cm / 1.33 ft from the ground.
90 L2 owner's manual (EN) version 2.0
