L-Acoustics LA4X Maintenance Manual

Disassembly and Reassembly procedures
4 Disassembly and Reassembly procedures
D/R 001 – REAR BRACKETS
Spare parts
KR LABRACKET
N
o
Description
Qty
1
rear bracket
2
Disassembly procedure
This procedure describes how to replace the REAR BRACKETS of an LA4X amplified controller.
Remove the two REAR BRACKETS pulling on them, see Figure 1.

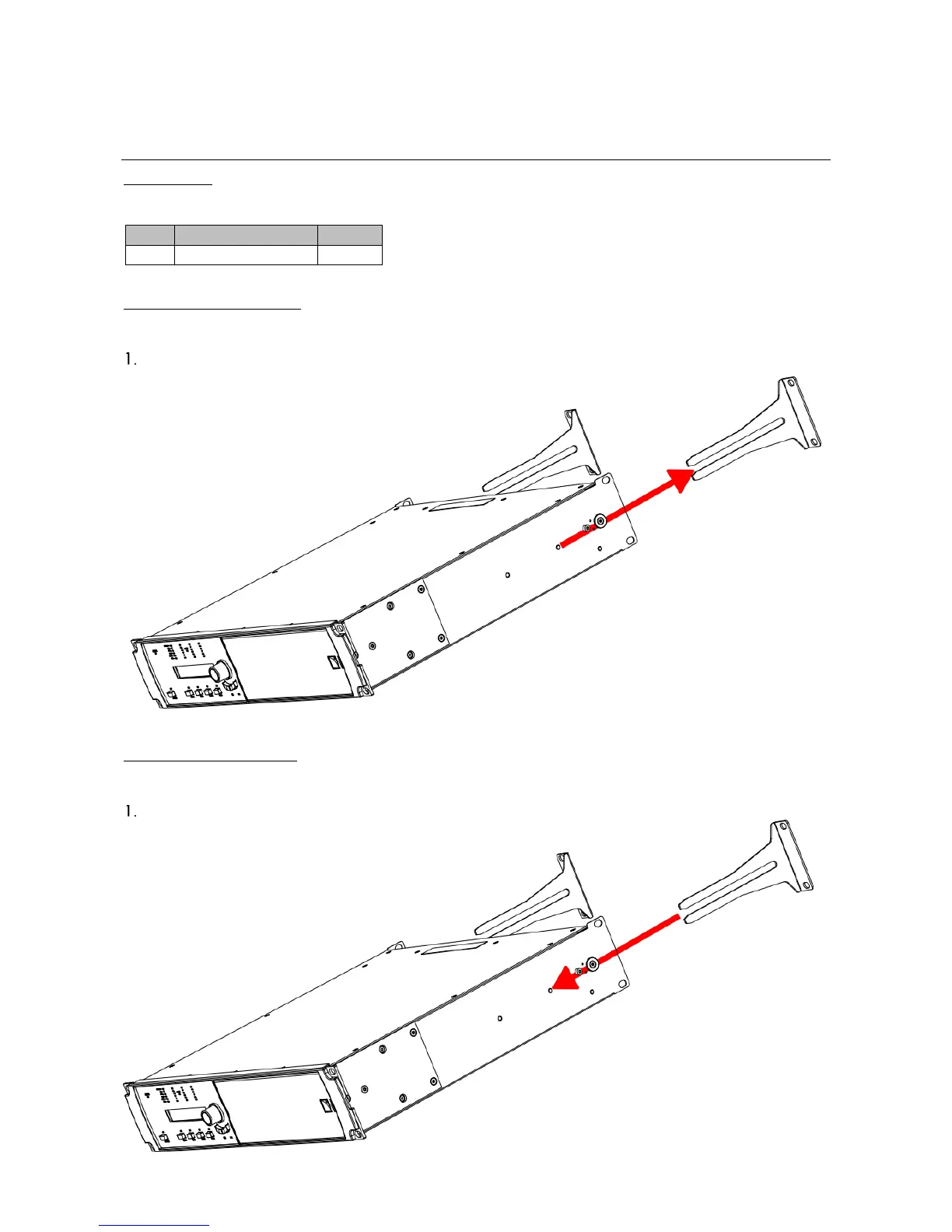

Figure 1: Removing the REAR BRACKETS
Reassembly procedure
This procedure describes how to mount the REAR BRACKETS kit to an LA4X amplified controller.
Insert the two REAR BRACKETS pushing on them until they are locked, see Figure 2.
Figure 2: Mounting the REAR BRACKETS
