L-Acoustics LA4X Maintenance Manual

Disassembly and Reassembly procedures
D/R 002 – SIDE BRACKETS
Tools
Name
Reference
Distributor
electric screwdriver
DW920K
DeWalt
Torx
®
T10 bit
EX.010
Facom
Spare parts
KR LA4XEQAV
N°
Description
Qty
1
side bracket
2
2
large Torx
®
screw
8

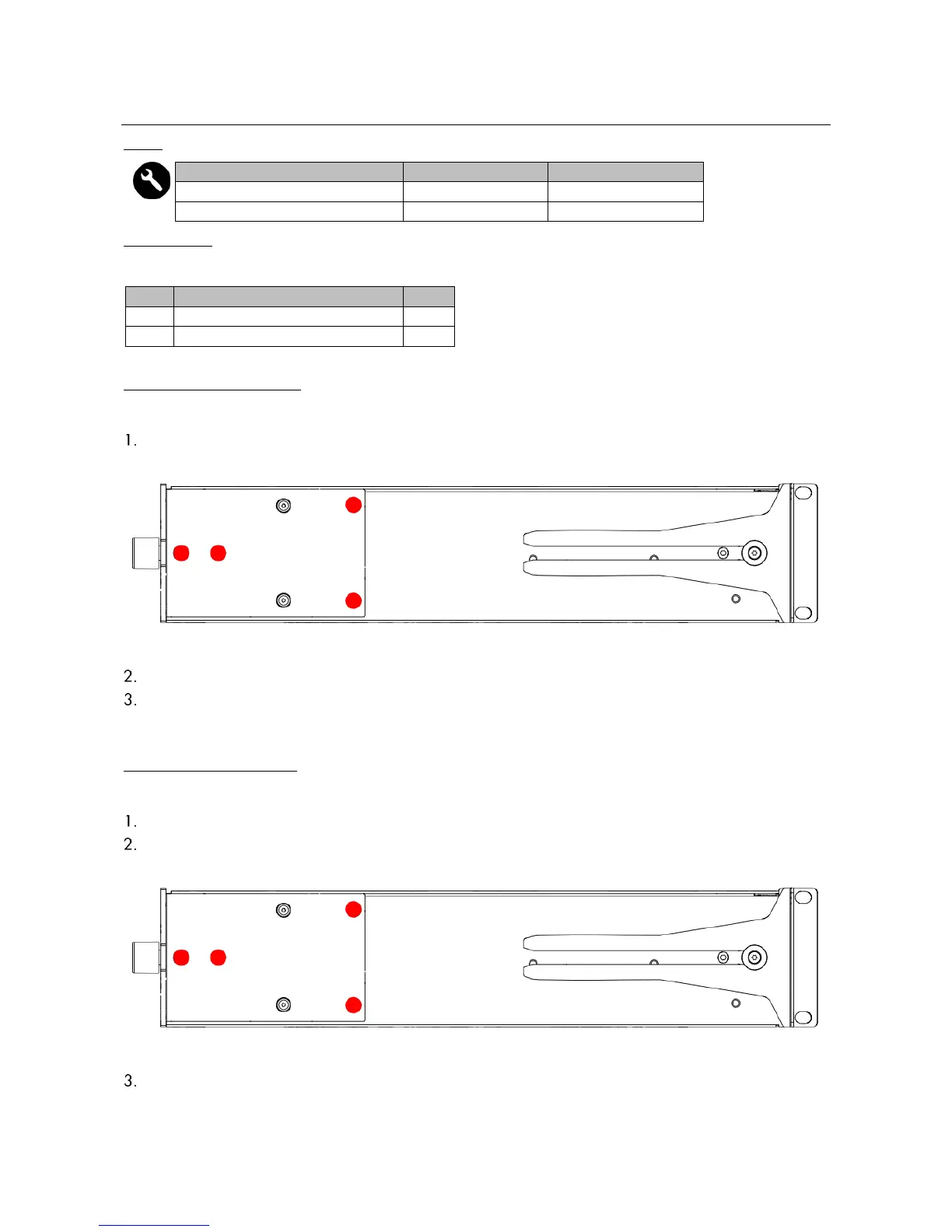

Disassembly procedure
This procedure describes how to remove the SIDE BRACKETS from an LA4X amplified controller.
Undo the four Torx
®
screws from the locations indicated in Figure 3.
Use the electric screwdriver with the Torx
®
T10 bit.
Figure 3: Removing a SIDE BRACKET
Remove the SIDE BRACKET from the controller.
Repeat these steps for the other SIDE BRACKET.
Reassembly procedure
This procedure describes how to mount a SIDE BRACKETS kit to an LA4X amplified controller.
Position a SIDE BRACKET on the controller.
Drive four Torx
®
screws to the locations indicated in Figure 4.
Use the electric screwdriver with the Torx
®
T10 bit. Torque to 1 N.m.
Figure 4: Mounting a SIDE BRACKET
Repeat these steps with a second SIDE BRACKET on the other side of the controller.
