Maintenance
D/R - MF loudspeaker
Tools
— torque screwdriver
— 3 mm hex bit
Repair kits
G03317
KR medium loudspeaker 5'' Syva
×1 ×4
17664 S100145
5" MF speaker - 8 ohms M4x20 hex
Pre-requisite
Grill disassembled. See Grills (p.25).
For safety reasons, always use the new screws and spare parts provided in the KR.
If no new screws are available, use blue threadlocker.

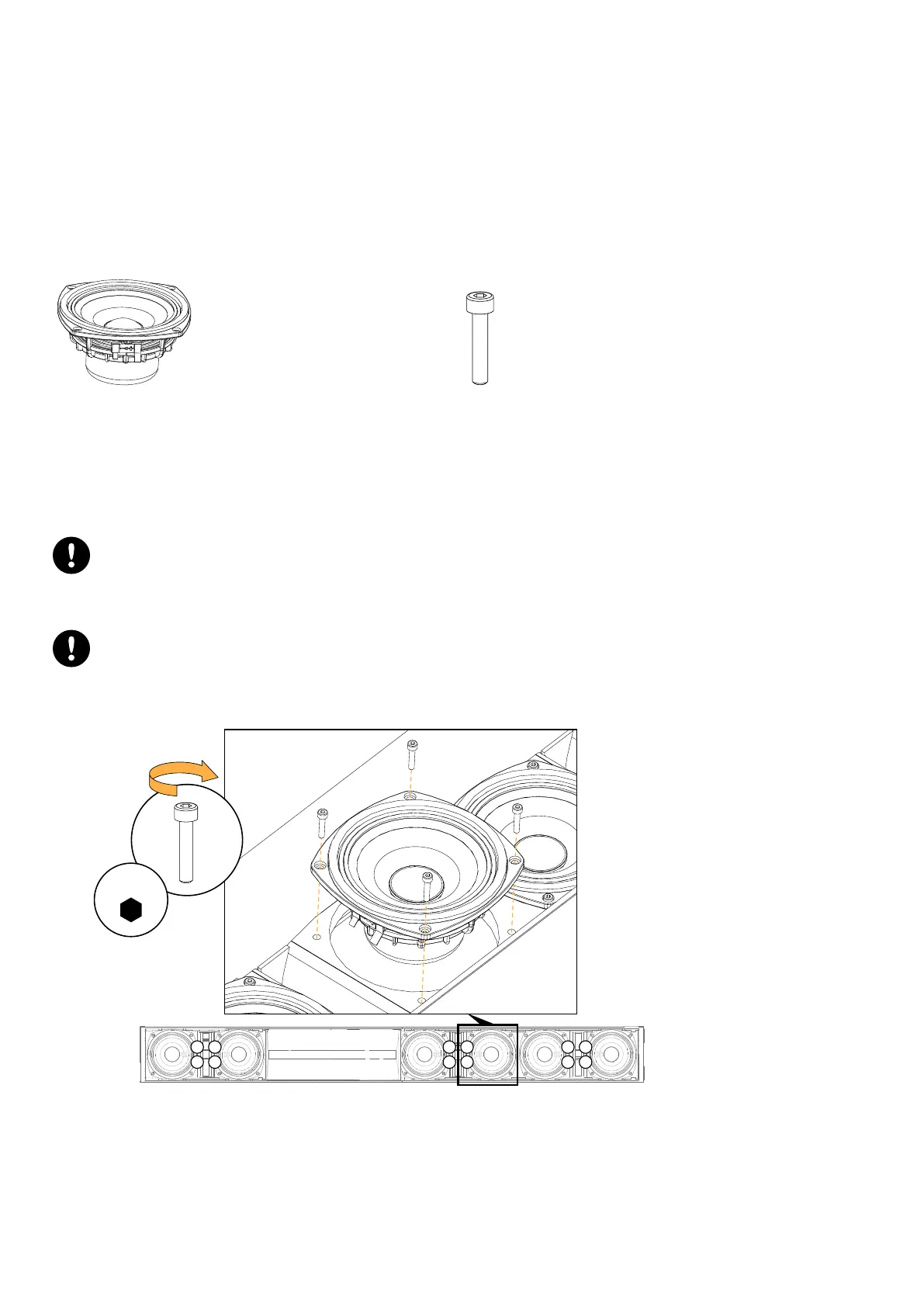

Exploded view
Gradually tighten the screws following a star pattern.
Place the connectors toward the vents.
x4
1.8 N.m
3 mm
+
-
+
-
+
-
+
-
+
-
+
-
What to do next
Perform the Acoustical check (p.36) procedures.
Syva user manual (EN) version 1.0 26
