Maintenance
D/R - Trapdoor
Tools
— torque screwdriver
— T25 Torx bit
— lever
Repair kits
G03316 - KR diaphragm 1.75'' Syva
or G03315 - KR compression driver 1.75'' Syva
×4
S100086
M5x16 Torx
Pre-requisite
The enclosure is placed on its front face.
Place protective material between the enclosure and the floor to avoid scratching the fins.
For safety reasons, always use the new screws and spare parts provided in the KR.
If no new screws are available, use blue threadlocker.

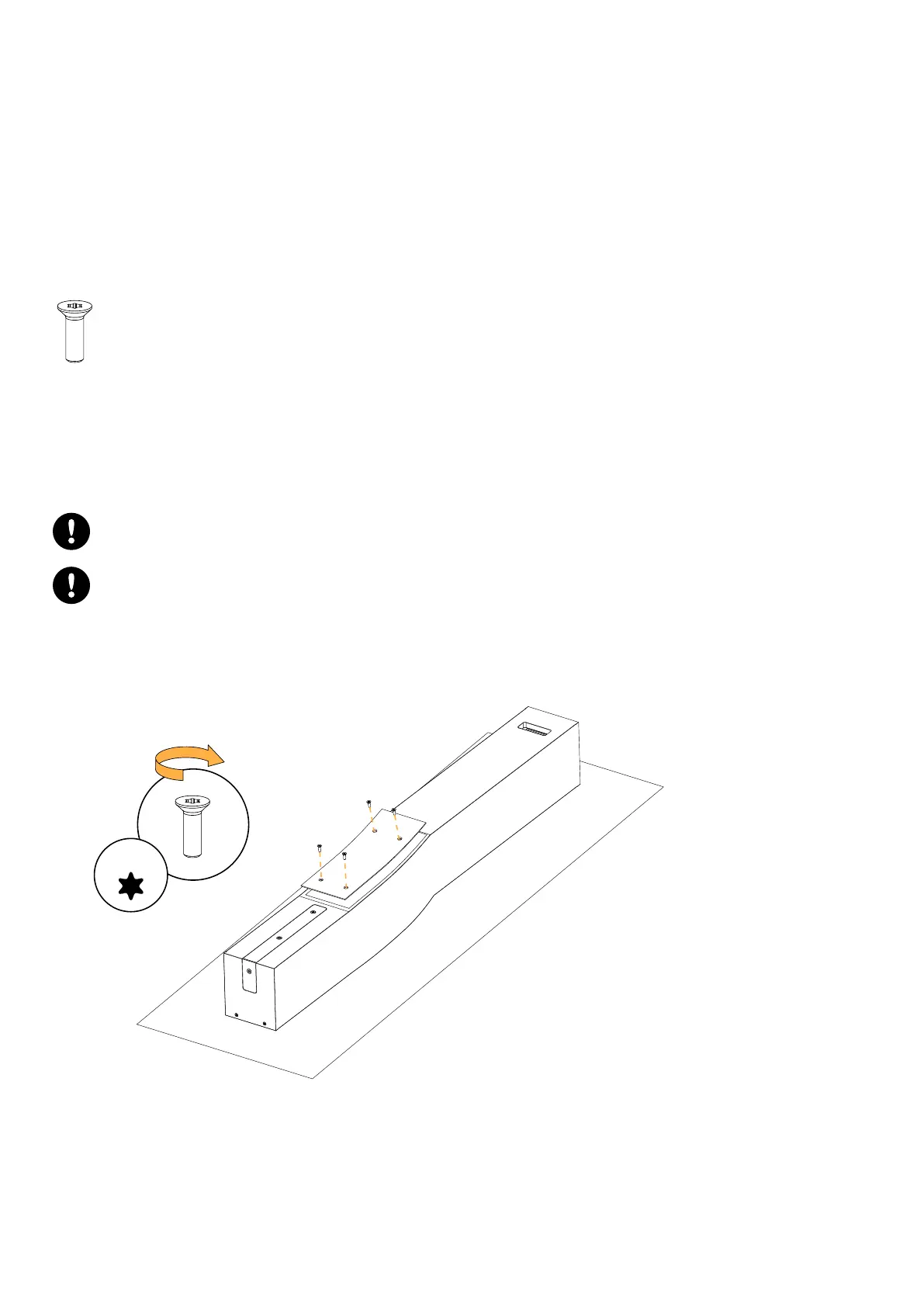

Exploded view
Use a lever to remove the trapdoor.
x4
3 N.m
T25
