Maintenance
D/R - HF diaphragm
Tools
— torque screwdriver
— T20 Torx bit
— compressed air blower
— double face adhesive tape
Repair kits
G03316
KR diaphragm 1.75'' Syva
×1 ×6
17736 S17736
diaphragm kit for 1.75" driver - 16 Ω M4x8 Torx
Pre-requisite
Trapdoor removed. See Trapdoor (p.27).
HF loudspeaker disassembled. See HF loudspeaker (p.28)
For safety reasons, always use the new screws and spare parts provided in the KR.
If no new screws are available, use blue threadlocker.

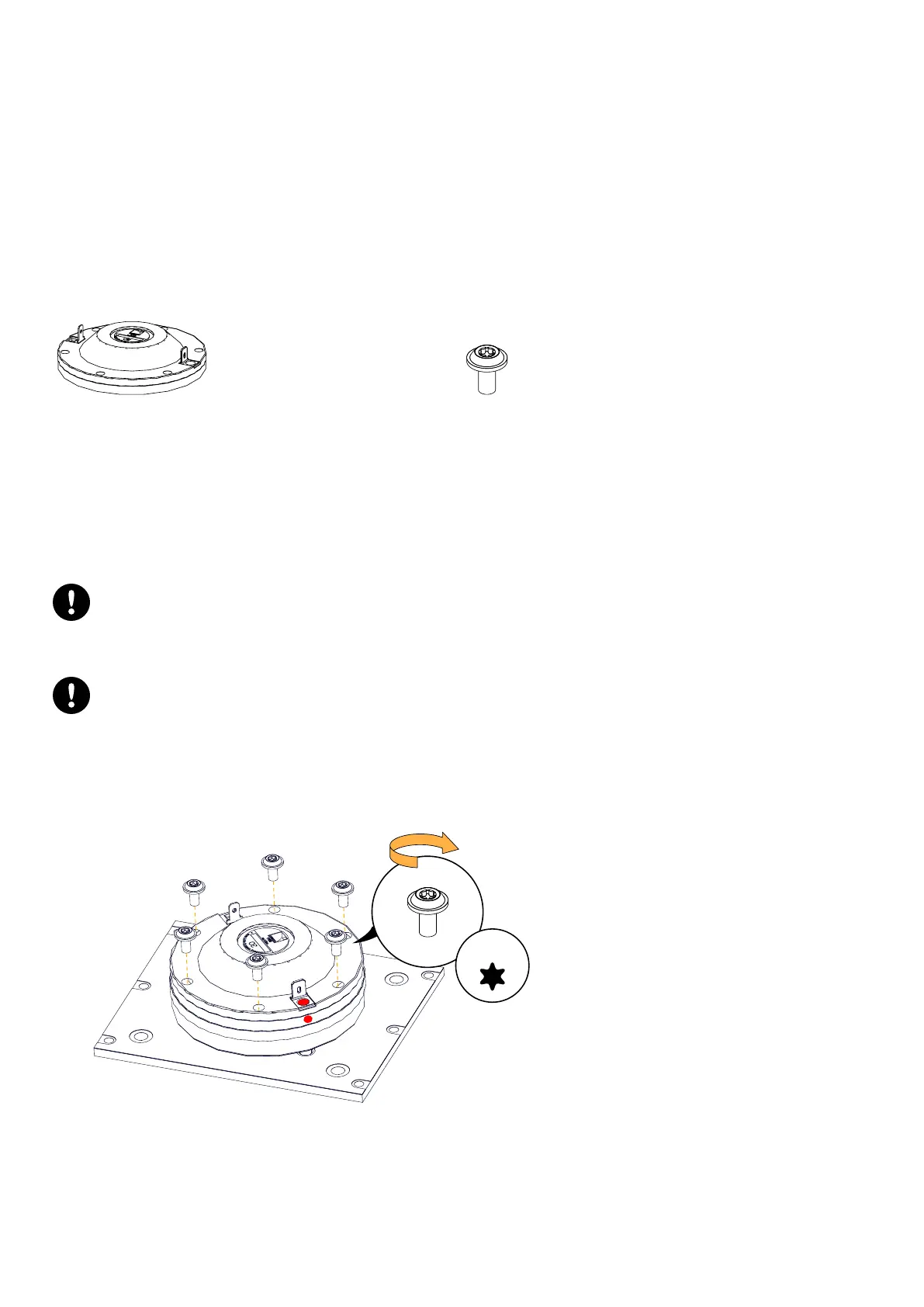

Exploded view
Make sure the air gap is perfectly clean before reassembly.
Use a blower or double face adhesive to remove any particle.
Position the diaphragm assembly with the positive (red) connector aligned with the red mark.
Gradually tighten the screws following a star pattern.
T20
x6
1.7 N.m
What to do next
Perform the Acoustical check (p.36) procedures.
