Rigging system description
Syva Wall
Syva on Syva Wall applies a load of 350 N on the anchoring points.

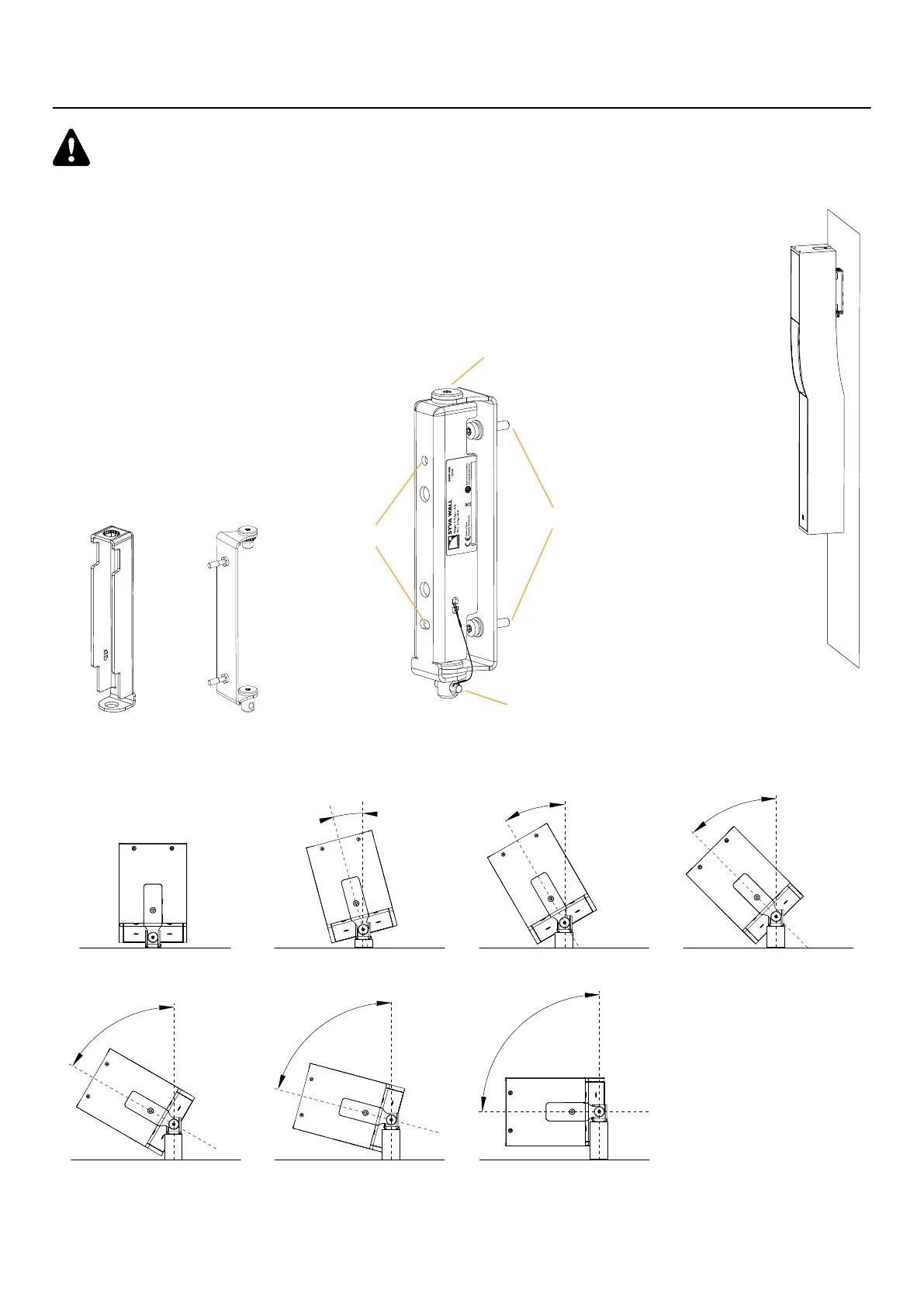

Syva Wall is a wall-mount for Syva. It consists in two parts, a base and a bracket:
— The base is mounted on a wall or a wedge.
— The bracket is secured to the enclosure.
It features a toothed wheel to set the azimut angle up to 90° by steps of 15°.
A safety pin secures the assembly.
base
bracket
wall-mount
linking points
angle selector
safety pin
To set an azimut angle, use a wedge. The wedge depth limits the maximum angle.
15°
30°
45°
16 mm / 0.6 in 32 mm / 1.2 in 45 mm / 1.8 in
60°
75°
90°
55 mm / 2.2 in 70 mm / 2.8 in 80 mm / 3.1 in
