Electro-acoustical description
Connectors
Syva

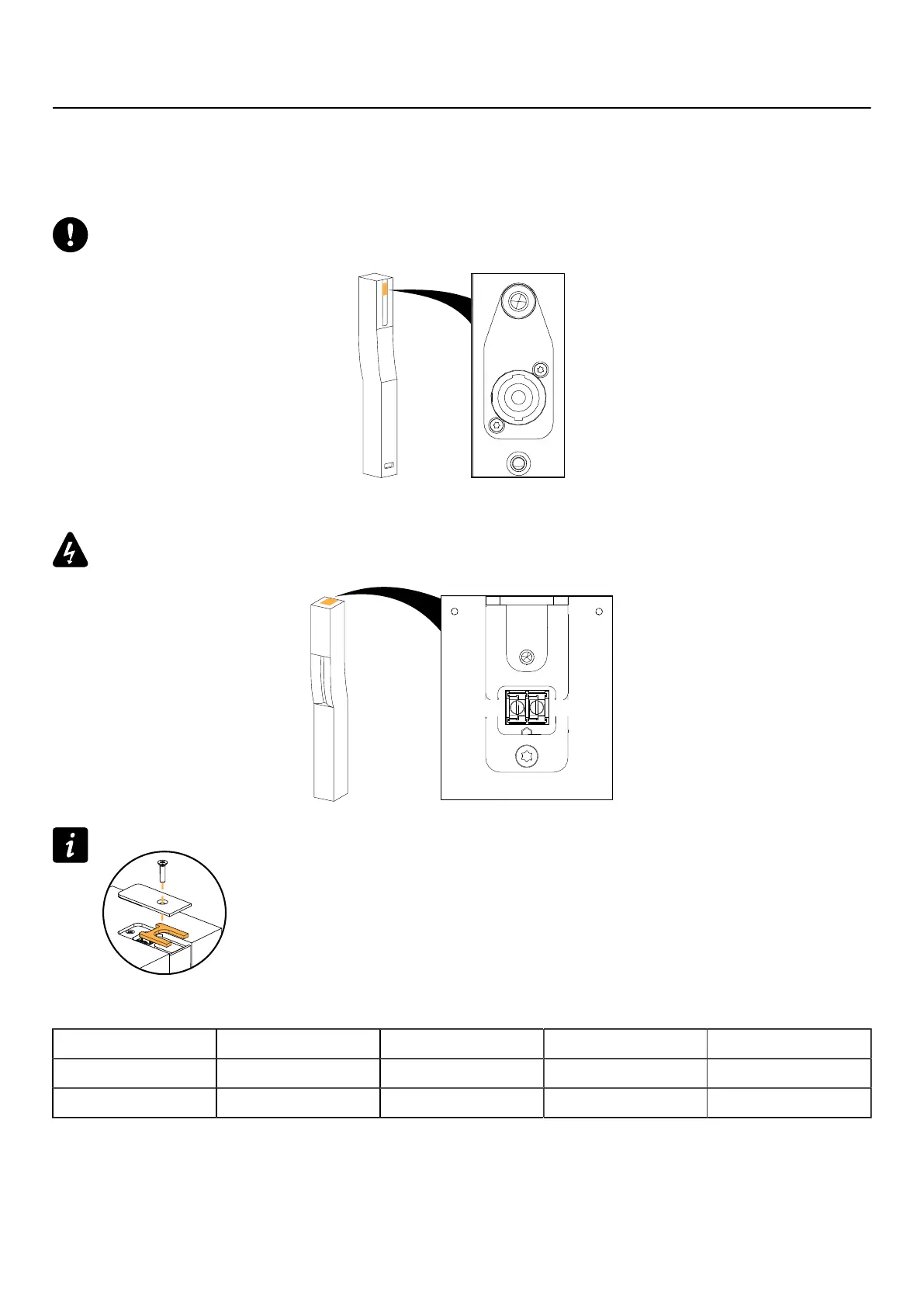

Syva offers multiple types of connectors. Use one type of connector at a time.
Use the speakON connector to connect the enclosure with an SP cable.
The speakON connector is only accessible if Syva Wall is used with a wedge.
Refer to Wall-mounting Syva (p.44).
IN
Use the screw terminal to connect the enclosure with speaker wire.
Put the gasket and cover back on the connector once the wire is installed.
IN +
IN -
When the screw terminal is not in use, put the gasket and cover back on to avoid leaks.
Internal pinout for L-Acoustics 2-way passive enclosures
screw terminal points IN + IN - / /
speakON points 1 + 1 - 2 + 2 -
transducer connectors + - Not linked Not linked
14 Syva owner's manual (EN) version 1.0
