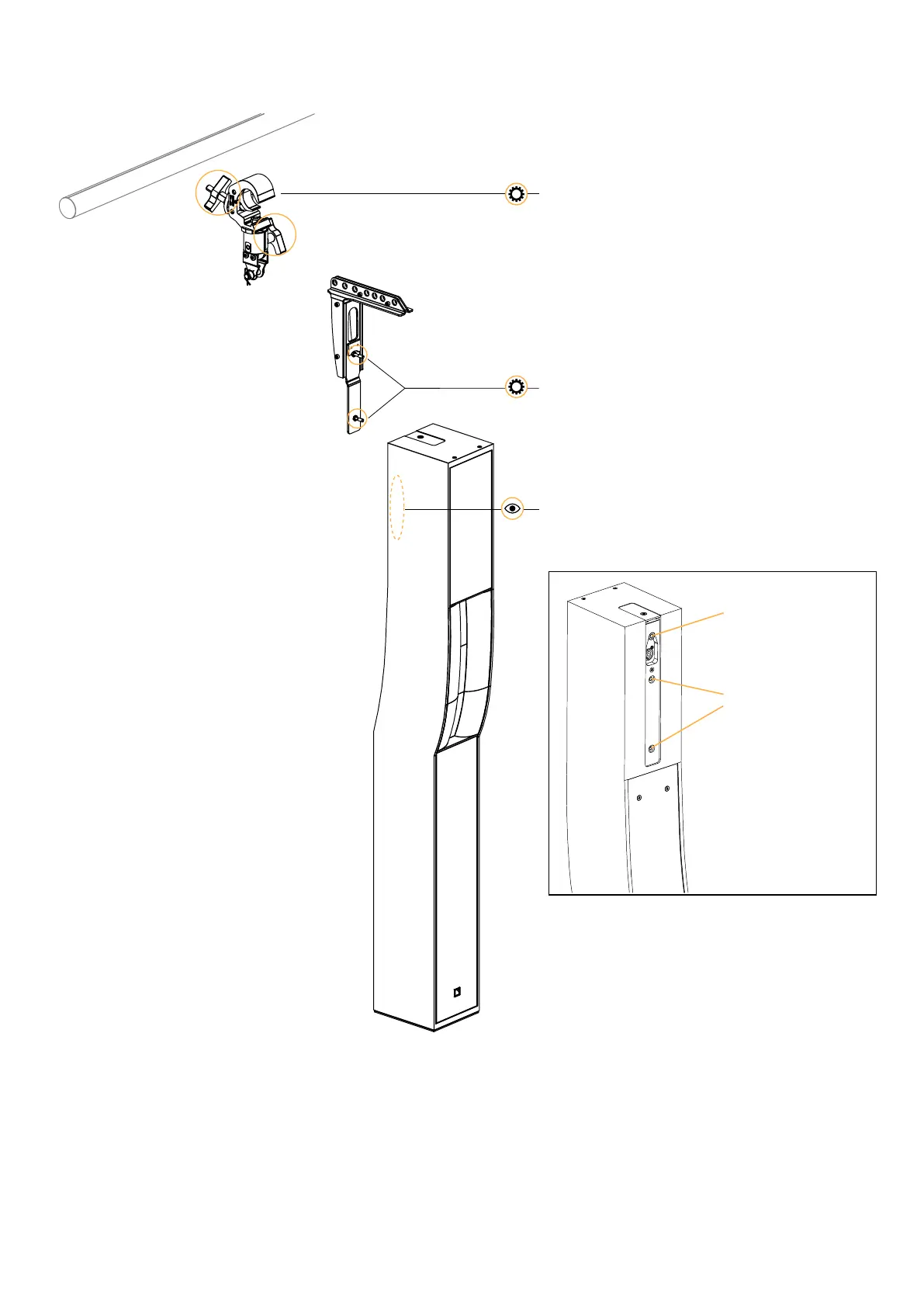

Inspection and preventive maintenance
Flown with Syva Bar and CLAMP250
the wing knobs can be tightened and loosened
by hand
linking points are tightened
inserts are not damaged
secondar
y safety is present
safety
point Ø
M8
linking
points
Syva
owner's
manual
(EN)
version
1.0
35
34
36
Table of Contents
Table of Contents
3
Safety
5
Instructions
5
Introduction
7
Syva Colinear Source
7
How to Use this Manual
8
Revision History
8
System Components
9
Electro-Acoustical Description
12
Preset Description
13
Connectors
14
Rigging System Description
16
Syva
16
Syva Low and Syva Sub
18
Rigging Elements
19
Syva Wall
19
Syva Base
20
Syva Pole
20
Syva Bar
21
Syva Cov and Syvalf Cov
22
Mechanical Safety
23
Loudspeaker ConGurations
25
Syva Colinear Source
25
With LF Extension
26
With LF Extension and Subwoofer
28
Inspection and Preventive Maintenance
31
How to Do Preventive Maintenance
31
Rigging Part Inspection
32
Mechanical System Overview
33
Wall-Mounted with Syva Wall
34
Flown with Syva Bar and CLAMP250
35
Pole-Mounted with Syva Pole
36
Stacked on Syva Low with Syva Base
37
Inspection References
38
Ball-Locking Pins
38
Rigging Check
39
Acoustical Check
40
Rigging Procedures
44
Wall-Mounting Syva
44
Flying Syva
48
Pole-Mounting Syva
49
Stacking Syva on Syva Low
50
Mounting a Truss Clamp on Syva Wall
51
Storing Syva Low / Syva Sub in Syvalf Cov
52
Connection to la AmpliEd Controllers
53
Corrective Maintenance
57
Syva
57
Cabling Syva
63
Syva Low
64
Syva Sub
67
SpeciCations
70
APPENDIX A: Recommendation for Speaker Cables
79
Other manuals for L-Acoustics S Series
User Manual
46 pages
Rigging Manual
36 pages
