L-Acoustics S Series User Manual

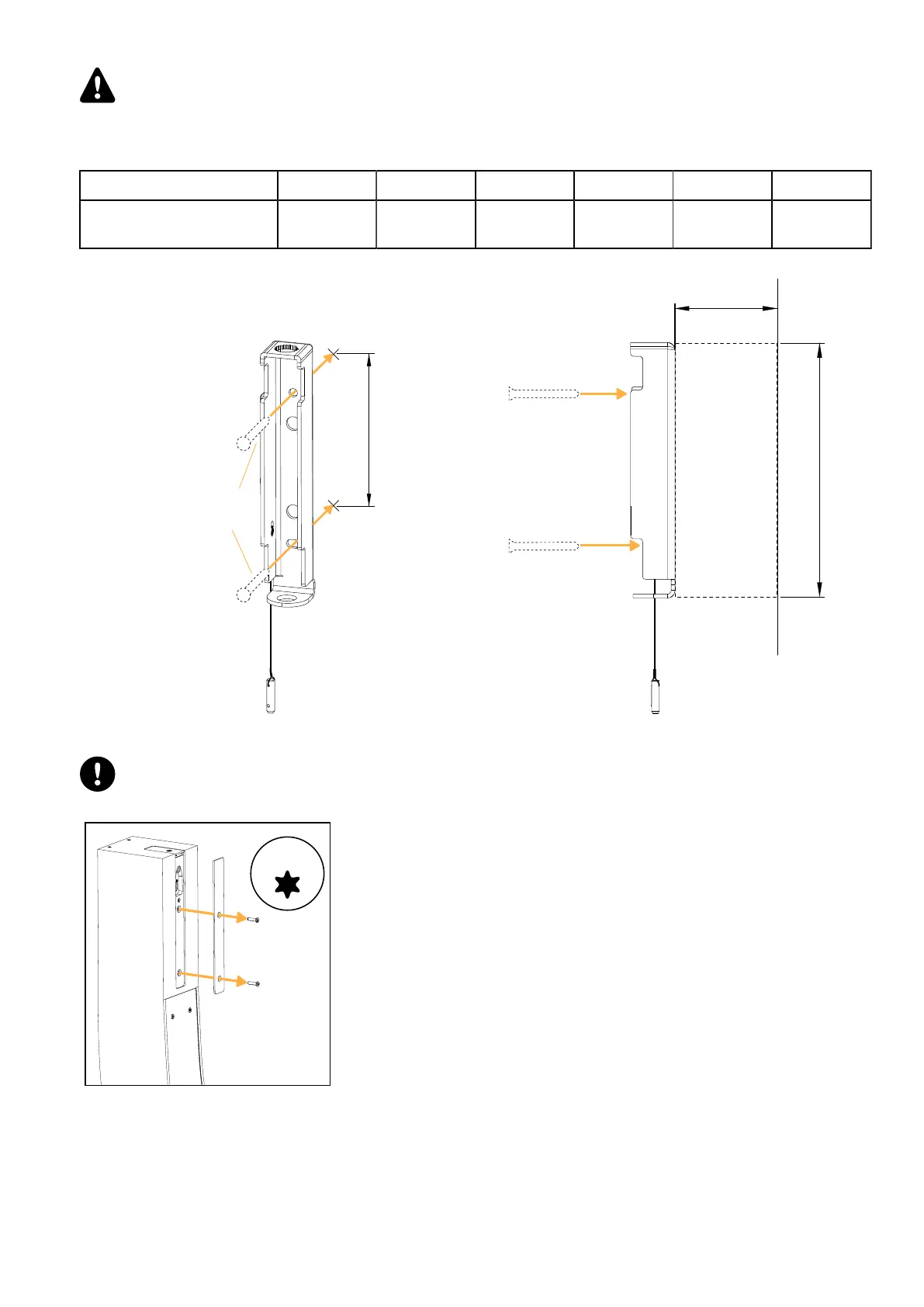

Rigging procedures
Syva on Syva Wall applies a load of 350 N on the anchoring points.
2. Secure the base to the wall.
Use a wedge to allow an azimuth angle.
Azimuth angle 15° 30° 45° 60° 75° 90°
Wedge depth 16 mm /
0.6 in
32 mm /
1.2 in
45 mm /
1.8 in
55 mm /
2.2 in
70 mm /
2.8 in
80 mm /
3.1 in
120 mm / 4.7 in
Ø 6 mm /
0.2 in
16 - 80 mm /
0.6 - 3.1 in
201 mm / 7.9 in
3. Remove the backplate from Syva.
Store plates and unused screws in Syva Cov.
T30
Syva owner's manual (EN) version 1.0 45
