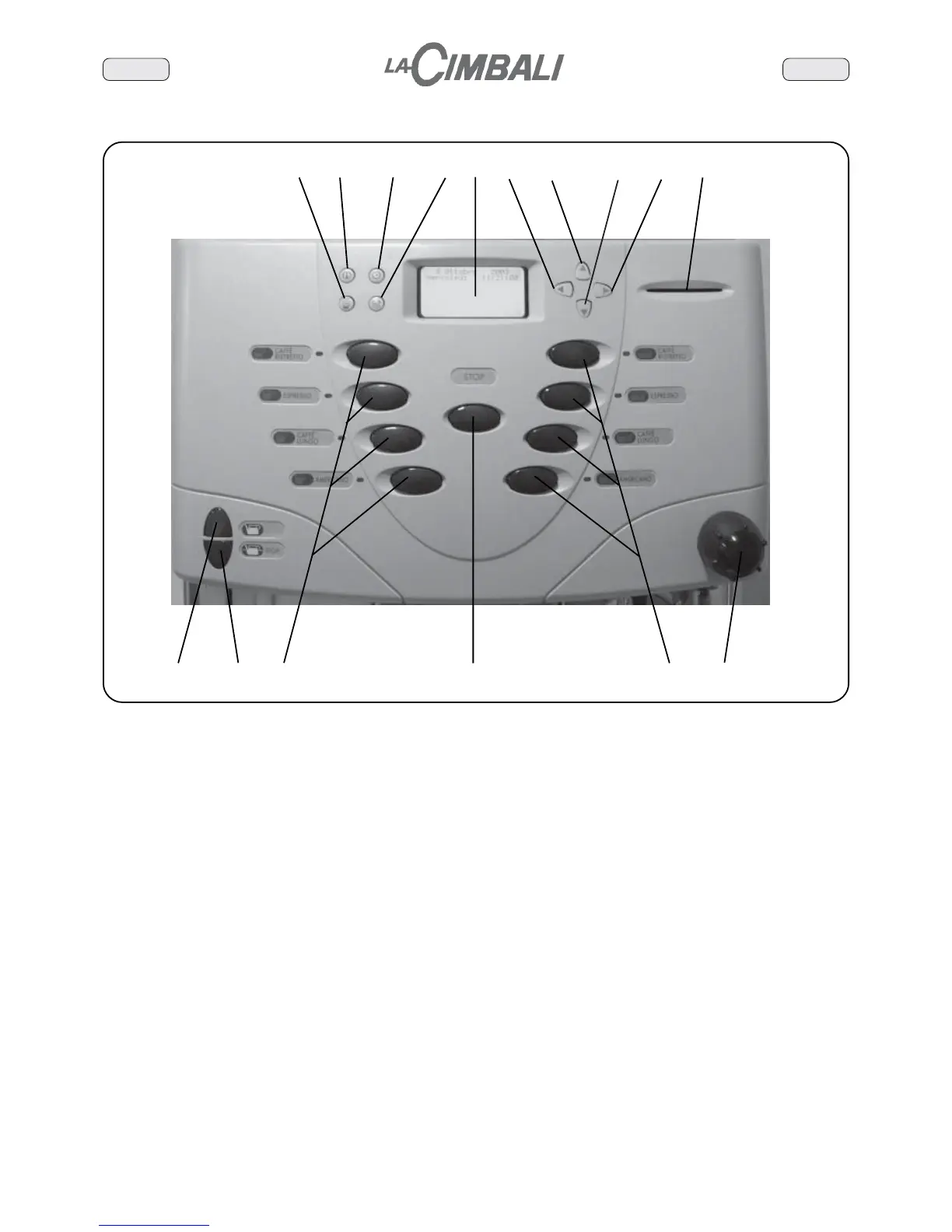

2. Description of the control panel
DESCRIPTION OF THE COMPONENTS
5 Graphical display
12 Hot water button
13 Steam dispensing knob (Turbosteam selector *)
24 RES key (to quit programming mode/confirm data)
26 Coffee circuit flushing key / fast wash
27 "i" key (displays the number of cycles)
28 Milk circuit wash key - automatic wash
29 "PRG" key (to access programming mode/menu)
30 "+" key (to modify parameters/clock)
31 "-" key (to modify parameters/clock)
32 Beverage selector key
33 STOP button (stops products from being dispensed)
34 "CUSTOMER PARAMETERS" key
35 Hot water STOP-CONTINUOUS key
39 Card services slit (technical programming)
The components - * - are applied only in some produit configurations
