13. System confi gration tutorial
21. Repeat step 16 and 20 for the B module. On the Output EQ/Crossover, tap the Aux Output Functions
button on the menu bar and then tap LPF Enable button. Drag the Low pass Ä lter control object on the
frequency slider just above the menu bar to an appropriate crossover frequency for the sub, e.g. 100 Hz.
22. Use the control options mentioned in 17 to tune your loudspeakers. For larger systems, modules can be
placed in groups (Groups menu from the MAIN page) for control of multiple units.
23. Some features like RPM can only be conÄ gured from within CAFÉ software. Return to AMPLIFIER EVENTS
& CONTROL; from the main area hit MODULES button, select a module (e.g. Module A), tap I/O ConÄ g, tap
AMPLIFIER EVENTS & CONTROL, and navigate to the Control tab. The CAFÉ button (next to bottom) opens
the CAFÉ application and imports and highlights the current ampliÄ er and its RPM view.

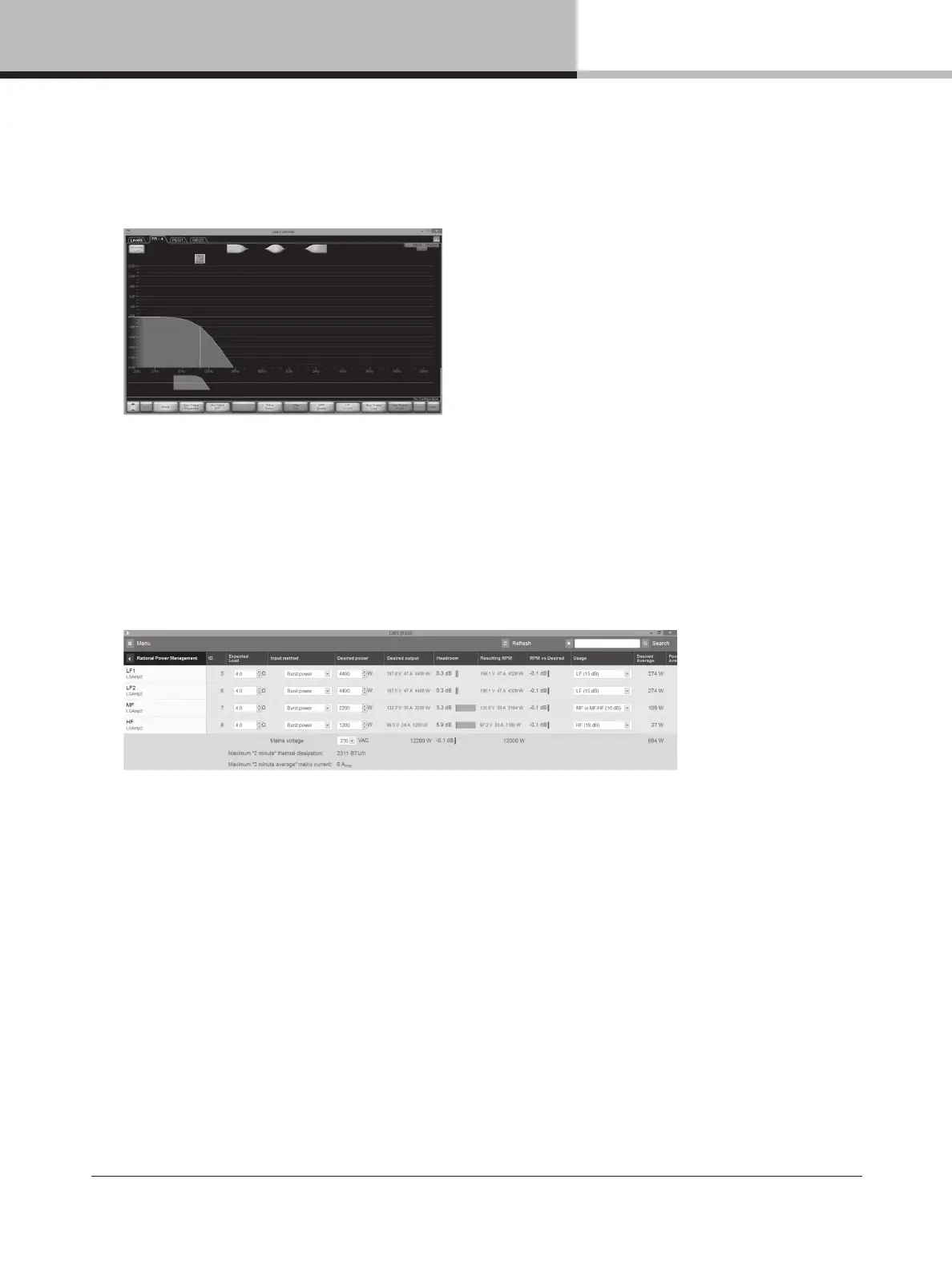

CAFÉ, RPM view – Enter power requirements and impedances for the channels to conÄ gure RPM.
13.4. Additional Software Reference Material
Additional information regarding conÄ guration of Lake Controller for speciÄ c loudspeaker systems is available in the
Lake Controller Operation Manual, available for download in PDF format at www.labgruppen.com/support.
Additional information on conÄ guration of CAFÉ software is available in an integrated guide in the software program
and in the CAFÉ Coach videos posted on the Lab.gruppen web site and on the Lab.gruppen channel on YouTube.
Output EQ control - Add LPF/HPF and EQ Ä lters and drag to adjust.
