Labom PASCAL CS - Overview of the Menu Tree

BTA 060, Rev 1K1 Page 18/18

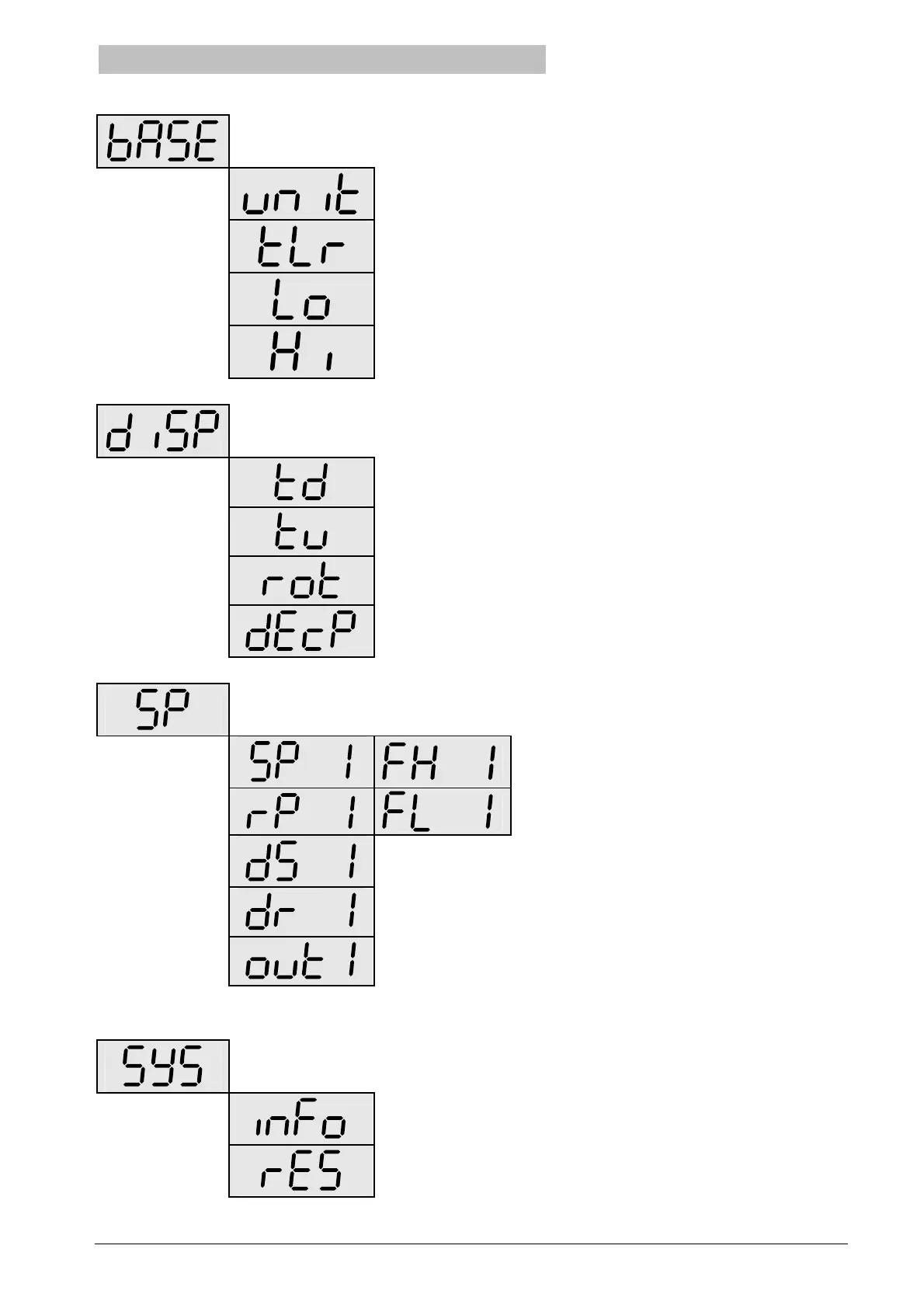

6.7 Overview of the menu tree
Main menu Sub menu Description
Menu with basic functions
Setting the measuring unit (bar, mbar, PSI, %, kPa,
MPa, mA)
Setting the lower range (4 mA) to the applied pressure
Display resp. delete the min. pointer
Display resp. delete the max. pointer
All settings relating to the display
Setting the display period for the unit
Setting the display period for the measured value
Display direction (0° = normal, 180° = turned)
Setting the decimal places (zero to three fixed decimal
places or automatic)
Configuring the switching outputs (only if available)
Switch-point or upper frame limit of
the first switching output
Reset-point or lower frame limit of the
first switching output
Output delay at the switch point of the
first switching output
Output delay at the reset point of the
first switching output
Output function of the first switching
output (Hno, Hnc, Fno, Fnc)
Menu items for the second switching output
System information and reset
Hard- and software versions, serial number
Reset to factory settings
