LaCie 12big Rack Network Rack Kit Reference Drawing
User Manual page 53
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
A A
B B
C C
D D
E E
F F
G G
H H
I I
J J
K K
L L
Parts List
BAGDESCRIPTIONPART NUMBERQTITEM
TAPPED HOLE RACKM5 SPRING WASHER
15275-0181
SQUARE HOLE RACKATX RACK SLIDE WASHER SQUARE HOLE56178-0282
ROUND HOLE RACKATX RACK SLIDE WASHER ROUND HOLE57599-0283
M5 x 12 CSK PHILLIPS PATCHLOCK
64376-0184
TAPPED HOLE RACKSCREW 10-32 UNF SPECIAL PHILLIPS64377-018
5
ATX RACK BRACKET ASSEMBLY UNIVERSAL
71997-0226
TAPPED HOLE RACK10mm SPANNER
72046-0117
ATX REDUCED RAIL KIT REFERENCE DRAWING82864-0118
PART NO.
± 0.5
± 0.2
± 0.1
± 0.5°
REV DATE SIG ECN No. REV DATE SIG ECN No.
REV SHEE T NO.
TITLE
DIMENSIONS
CHECKED
DRAWN
APPROVED
DATE
DATE
DATE
SCALE
SURFACE TEXTURE
MATERIAL
FINISH
P
A
R
T
N
O
.
R
E
V
S
H
E
E
T
N
O
.
IF IN DOUBT ASK
SIZE
0
mm
TOLERANCES UNLESS STATE D
0 DECIMAL PLACE :
1 DECIMAL PLACE :
2 DECIMAL PLACES :
ANGLES :
RADII UNLESS STATED :
MAX EDGE BREAKS :
THIS PART/AS SEMBLY SHALL BE MANU FACTURED FROM RoHS COMPLIANT
MATERIALS/CO MPONENTS, IN ACCORDAN CE WITH EU DIRECTIVE 2002/95/EC.
SEE PARTS
N Hunt
18/08/2006
1:1
82864-01 A 1 OF 1
ATX REDUCED RAIL KIT
8
2
8
6
4
-
0
1
A
1
O
F
1
01-A
18/08/2006
NH 25440
LEFT HAND ASSEMBLY SHOWN
ROUND HOLE RACK
FRONT RACK POST
REAR RACK POST
ASSEMBLY INSTRUCTIONS
1. PERFORM THIS STEP ONLY IF INSTALLING INTO A TAPPED HOLE RACK:-
REMOVE THE NUT SHOWN IN FIGURE 1 USING THE SPANNER SUPPLIED.
2. ASSEMBLE (2x) ITEMS 6 (NOT HANDED) TO RIGHT AND LEFT SIDES OF RACK.
FIT THE LOCATION PIN AT THE REAR END OF RAIL ITEM 6 INTO THE REAR RACK POST.
EXTEND THE RAIL TO FIT BETWEEN THE FRONT AND REAR RACK POSTS,
ATTACH TO BOTH THE FRONT AND REAR OF RACK USING SCREW & WASHER COMBINATION:
ROUND HOLE - ITEMS 3 AND 4, SQUARE HOLE - ITEMS 2 AND 4, TAPPED HOLE - ITEMS 1 AND 5
SCREWS SHOULD BE LEFT LOOSE ENOUGH TO ALLOW RAIL SIDEWAYS MOVEMENT ON ITS SLOTS.
TIGHTEN (2x) CLAMPING SCREWS
3. MOUNTING CHASSIS INTO RACK.
LIFT CHASSIS AND ALIGN WITH RACK RAILS, CAREFULLY INSERT CHASSIS SLIDES INTO RACK RAILS AND PUSH FULLY HOME.
TIGHTEN REAR SCREWS, WITHDRAW CHASSIS UNTIL IT REACHES HARD STOPS (APPROX 400mm). TIGHTEN FRONT SCREWS.
RETURN CHASSIS TO FULLY HOME POSITION AND ATTACH TO RACK USING CAPTIVE FASTENERS ON FRONT FLANGES.
4. CHASSIS REMOVAL.
THE CHASSIS RAILS HAVE FEATURES TO RESTRICT IT'S WITHDRAWAL WHILST STILL ALLOWING ACCESS TO THE FAN TRAY.
TO REMOVE IT COMPLETELY, PULL THE CHASSIS OUT UNTIL IT REACHES ITS STOPS, THEN THE BLUE LATCHES MUST BE
ROTATED (RIGHT HAND UP, LEFT HAND DOWN), THE CHASSIS CAN THEN CONTINUE TO BE FULLY WITHDRAWN.
34
CLAMPING SCREWS
SQUARE HOLE RACK
FRONT RACK POST
TAPPED HOLE RACK
FRONT RACK POST
12
REMOVE THIS NUT
IF INSTALLING INTO
TAPPED HOLE RACK
USE SAME SCREWS
AND WASHERS ON
FRONT AND REAR POSTS
FIGURE 1
SUPPLY COMPONENTS IN
BAGS MARKED AS SHOWN.
THIS DRAWING
6
5
1
4
2
RAIL KIT CAN BE ADJUSTED TO FIT RACKS
OF SIZES (BETWEEN INTERNAL FACES):
MINIMUM: 685mm, MAXIMUM: 889mm

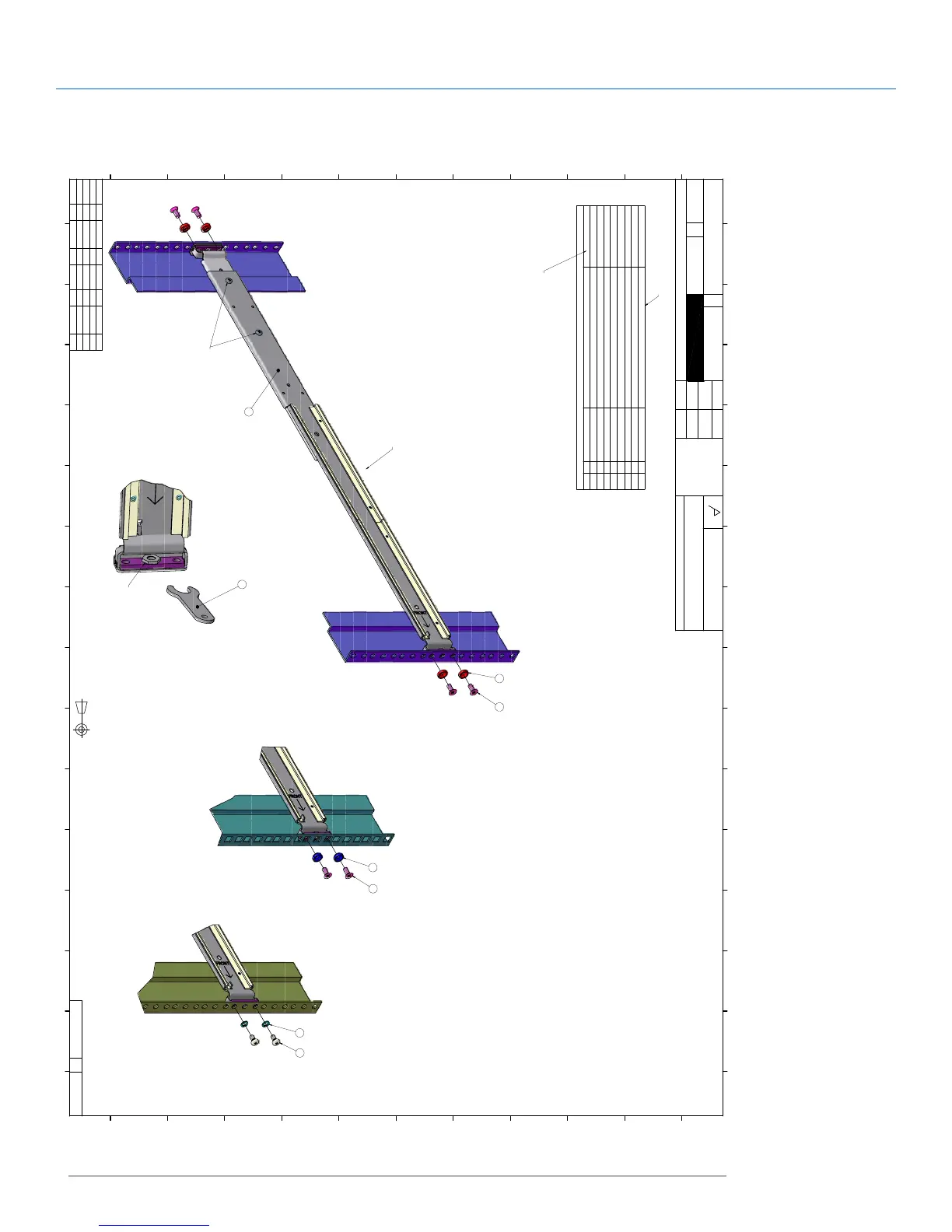

Fig. 38 - Rail Kit Installation Drawing
