LACROIX Sofrel S4W - 8 AI-T Expansion Module Details; 8 AI-T Temperature Input Connection; 8 AI-T Technical Specifications

8AI-T Expansion module
8AI-T Expansion module
Connection of AI (Temperature) modules
The ‘AI-T’ modules interface with the following temperature probes:
• Pt 1000 type DIN43760 (IEC60751)
•
Ni 1000 type TCR5000 (Siemens probes)
•
Ni 1000 type DIN43760 (IEC60751)

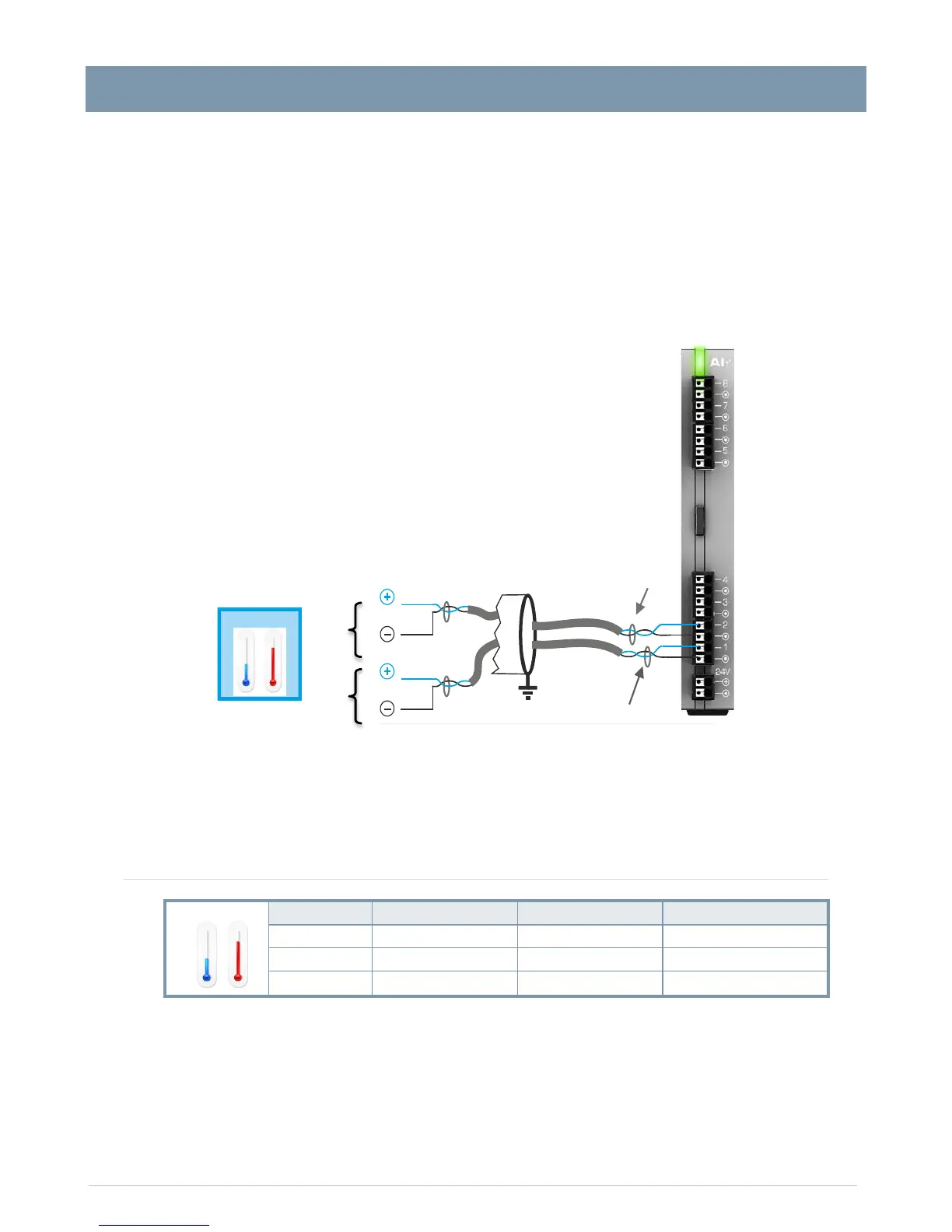

Example for 2 AIs, ‘4-20mA’:
Technical specifications
- 8 ANA inputs
- Temperature measurement
- Precision: from ±0.3% to ±0.4% according to the probe type
- Resolution: 16 bits
- Types of compatible probes:
•
CRIMP
TYPE STANDARD T RANGE PRECISION
•
Pt 1000
DIN43760 (IEC60751) between -50°C and +400°C ±0.3% (±1.35°C) at 25°C
•
Ni 1000
TCR5000 (Siemens probes) between -50°C and +150°C ±0.4% (±0.8°C) at 25°C
•
Ni 1000
DIN43760 (IEC60751) between -50°C and +150°C ±0.4% (±0.8°C) at 25°C
1 pair for ANA input no.1
1 pair for ANA input no.2
1 pair for ANA input no.1
1 pair for ANA input no.2
Temperature Probes
