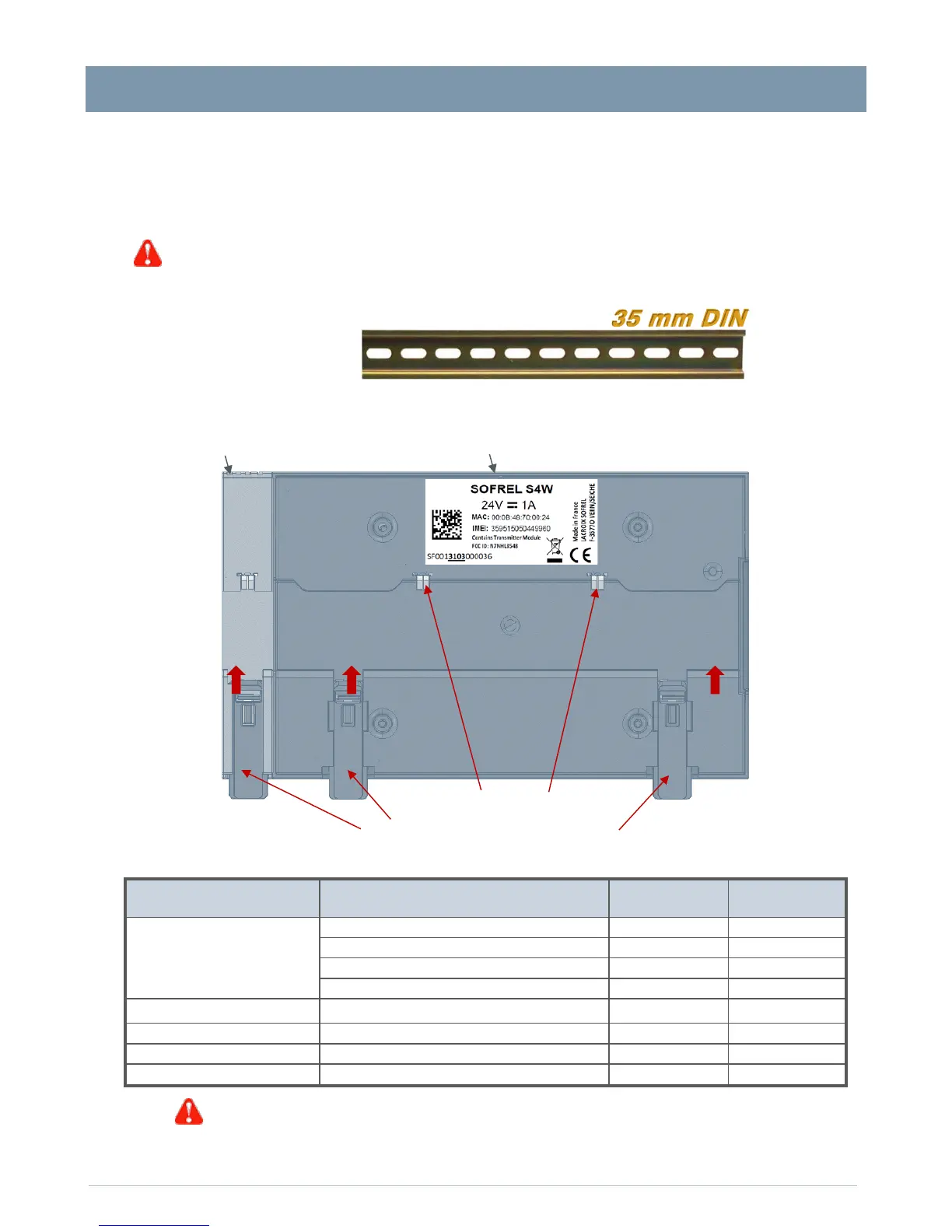

Case - Mounting
Case - Mounting
The SCADA Central Station must be installed by qualified personnel in accordance with local regulations (NF C 15-100 in France,
NEC in the U.S., etc.)
The case must be installed in a fire-resistant enclosure. This enclosure must stay closed during normal operation; it is only accessible
by qualified personnel and requires a key or tool to open it. The case is mounted on a standard metal DIN rail (35 mm).
The DIN rail is required to be connected to Ground; the grounding connection is carried out automatically when
the case is mounted.
To remove the case from the DIN rail, the user will use a screwdriver-type tool.
If the fasteners become unfastened, the user must make sure to replace them to prevent the case from
tipping (this note also applies to each I/O expansion module).
I/O expansion modules and Compact case
Cable sections
Access Cable
Min. section
mm² / AWG
Max. section
mm² / AWG
Inputs / Outputs
single-core cable 0.14 / 26 1.5 / 16
stranded cable without tip 0.14 / 26 1.5 / 16
multi-strand with insulated tip DIN 46228 T4 0.14 / 26 1.0 / 17
multi-strand with non-insulated end DIN 46228 T1 0.14 / 26 1.5 / 16
Power and Battery
monofilament 0.75 / 18 1.5 / 16
multi-strand without tip 0.75 / 18 1.5 / 16
multi-strand with mouthpiece DIN 46228 T4 0.75 / 18 1.0 / 17
multi-strand with non-insulated end DIN 46228 T1 0.75 / 18 1.5 / 16
With multi-strand cable: use crimping ferrules type DIN 46228 T4 or DIN 46228 T1.
For the battery, use Faston crimp lugs 6.35 mm female type insulated red.
Automatic locking on DIN rail
Automatic ground terminals
35 mm DIN
