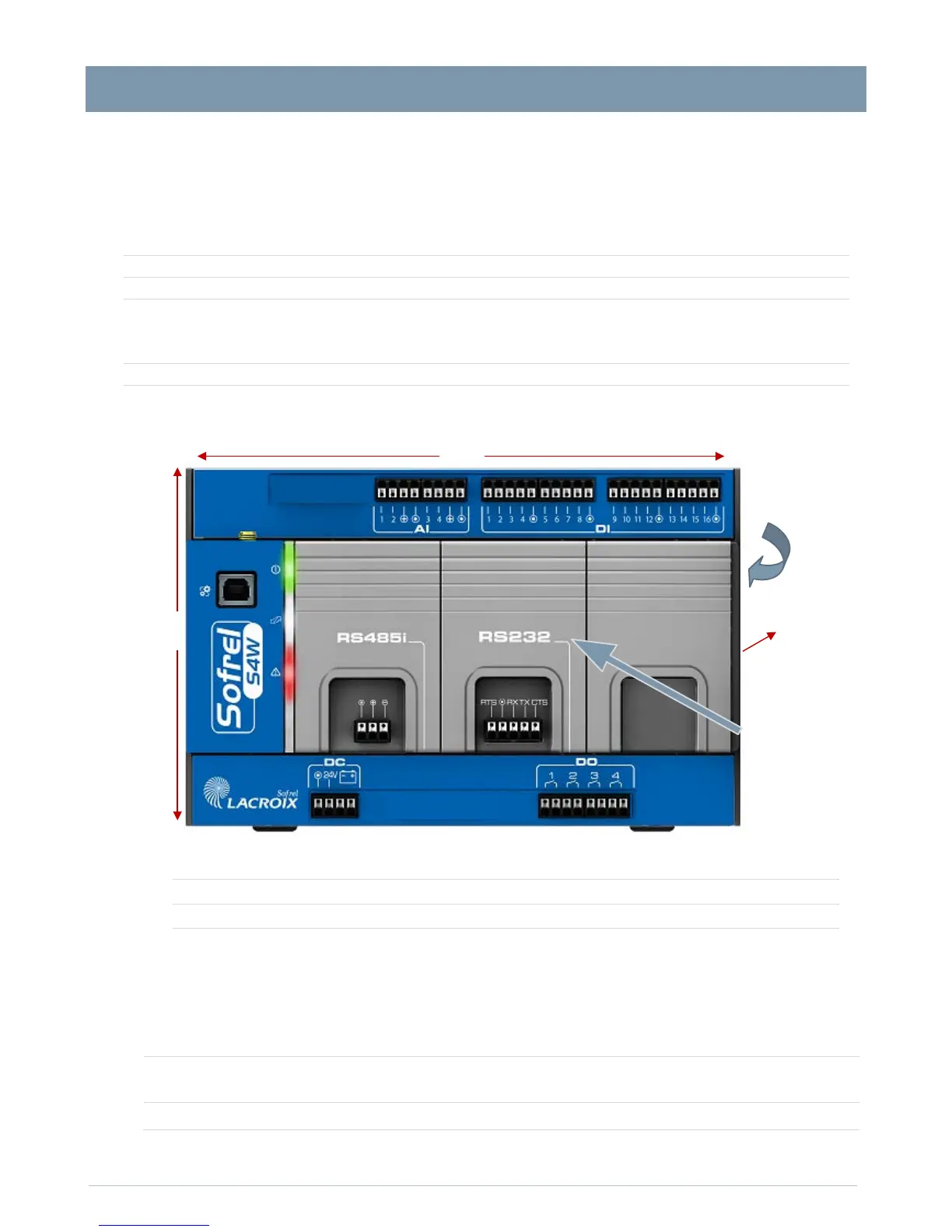

S4W comes standard in a compact case and includes the following:
• DC power supply:
• 1 24 V DC Power supply block (with backup battery)
• I/O:
•
Input/output terminals for connecting: 16 DI, 4 AI (4-20 mA) and 4 DO
• Com:
•
2 integrated communication interfaces: 2G/3G GSM and 100 Mbit/s Ethernet networks
•
Ports:
• 1 USB service port on front-face (for connecting S4W-Tools configuration PC)
• 1 Ethernet port
•
1 USB operational port USB (for connecting the S4-Display)
• Indicators:
•
3 indicators: Power supply (on), IP network (on), Generation Operation (off)
•
Slots:
• For 1-3 additional communication modules
•
Temperature:
• Ambient operating temperature range: -20- +70°C (storage range: -40- +85°C)
•
L =
195 mm
•
H =
125 mm
•
W =
63 mm (+ 7 or 15 mm, depending on the DIN rail)
•
M =
700 g (weight of the compact case with 3 COM modules)
Expansion capacities
For configurations requiring additional resources, the case can be equipped with the following add-ons:
• I/O:
Up to 10 input-output expansion modules from among the following types: 16DI / 8AIT / 8AIMA / 4DO / 8DO / 8AOAV
• Com:
Up to 3 communication modules: RS232 / RS485 / RS485-i / DL / EDF / BADGE
and RDRTU-2 Radio link external modem (869 MHz without licence) connected via a RS485 module
(
∗
)
• Mem:
1 slot for a micro SD memory card (for later usage)
Up to 3 additional COM
modules
Expansion via snap-in
I/O modules
L
H D
M
(
∗
)
: Only available in countries where 869MHz frequency is allowed, check with country’s regulations.
