RS232 communication module
RS232 communication module
This module allows the RTU to communicate via RS232 link (with or without control signals) at an adjustable speed
between 300 and 115,200 bits/s. The RS232 module is protected against short circuits, polarity inversion and accidental connection to
voltage less than 24 V.
• RTS: ’Request to Send’ output
•

: 0V or GND
• RX: ’Data reception’ input
• TX: ’Data transmission’ output
•
CTS: ’clear to send’ input

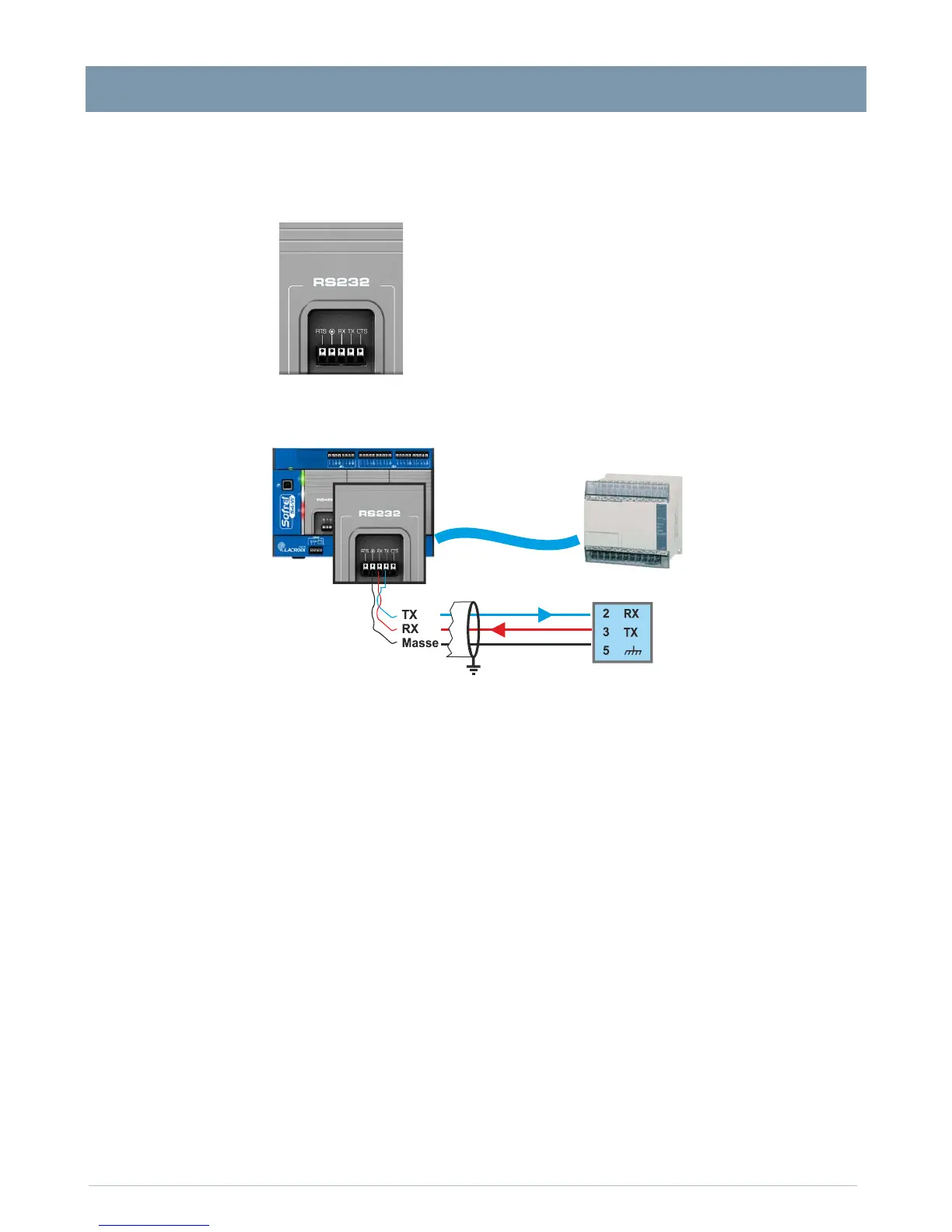

Example of connection:
Technical specifications
- Cable:
- Use a ‘1 pair’ cable , SYT+ AWG24 ∅ = 5/10
ths
(100Ω resistance per kilometre)
- Use the twisted pairs of a cable with screen or shielding per pair of conductors.
- Connect the cable shielding to the Ground on one side only.
- Maximum length = 15 metres.
Remote terminal unit
MODBUS device (PLC or SCADA Central Station)
RS232 link
