LACROIX Sofrel S4W - BADGE Communication Module; BADGE Module Purpose

BADGE communication module
BADGE communication module
S4W allows the use of HID (contactless) badges for the People Identification, "Anti-Intrusion", and "Human
Endangered" functions on monitored network sites.
The + VDC power supply and pilot LED control are provided by the RTU (includes battery backup).
Connecting the HID reader
Technical characteristics
- Cable :
- Use a "1 pair" cable type SYT + AWG24 ∅ = 5 / 10th
- Maximum distance: 100 meters.
- Readers :
- Use a BADGE module per HID reader.
- The RTU can communicate at maximum with 3 readers.

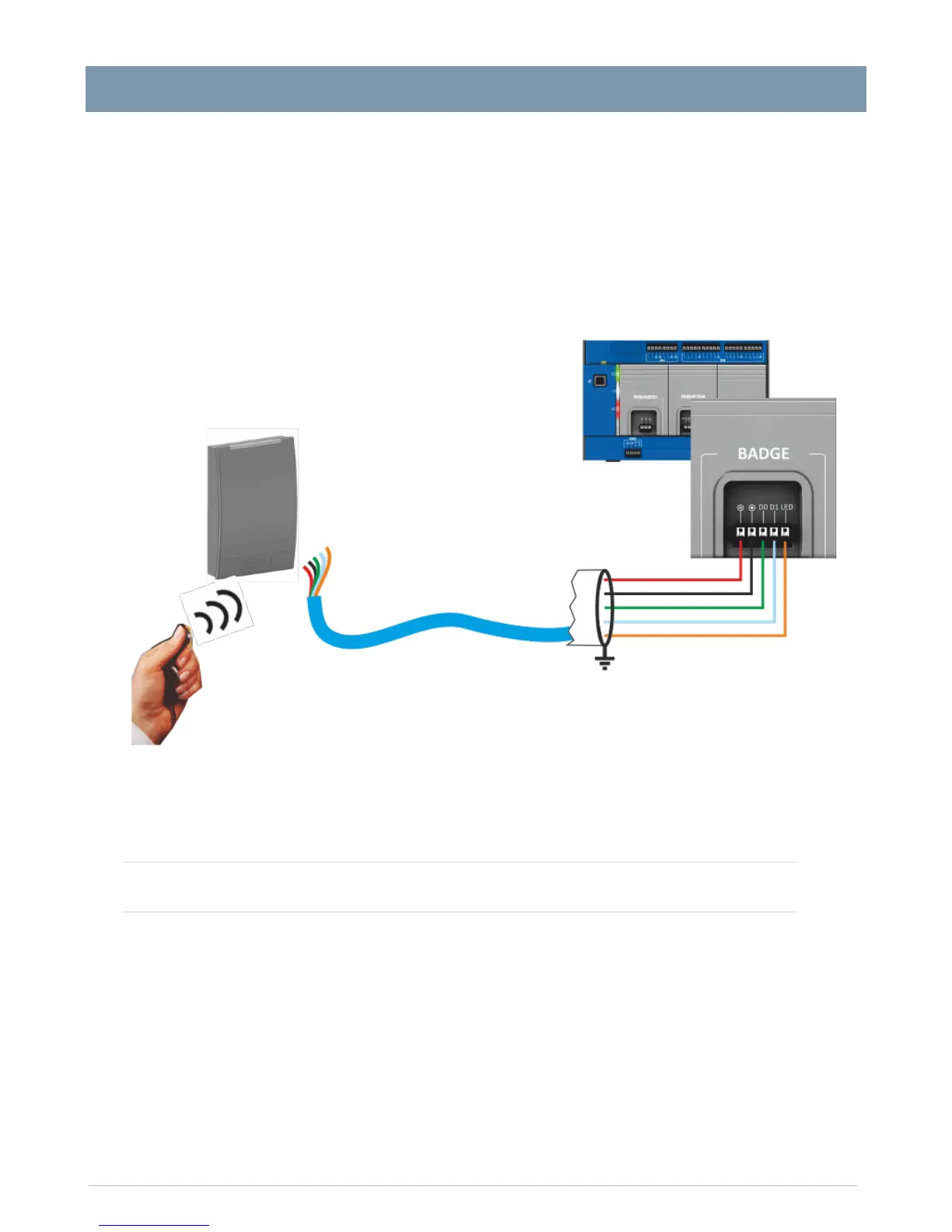

HID badge reader
(Wiegand protocol)
Maximum length: 100 meters
Red / Rouge
Black / Noir
Green / Vert
White / Blanc
Orange / Orange
