24

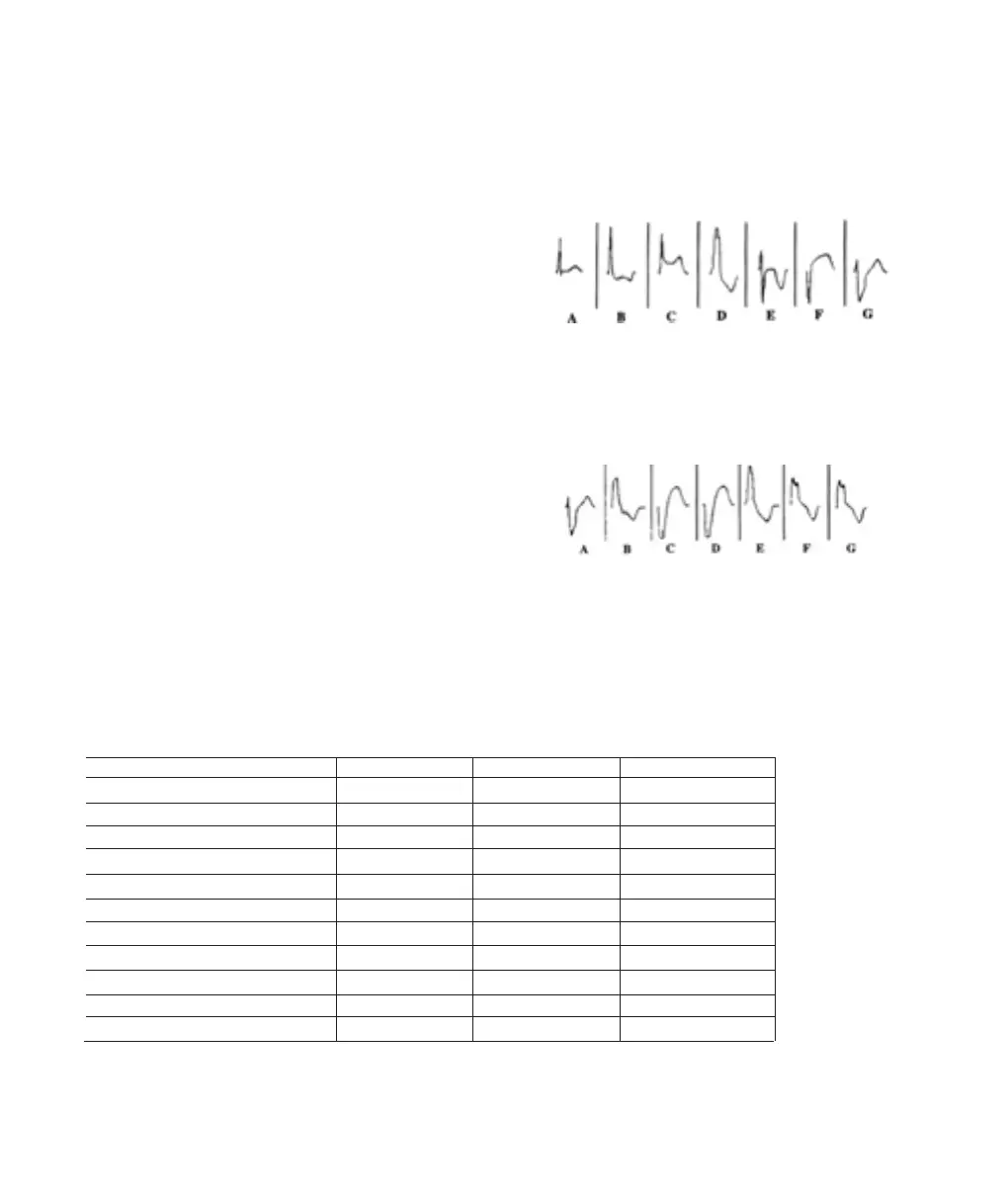

QRS Types:
Seven different QRS waveforms named “A” to “G” can be selected. Available QRS types vary with each basic rhythm.
Supraventricular QRS types for: Sinus,A-tach,A-flutt,A-fib, Junctional, 1°AVB, 2°AVB types 1 and 2, 3°AVB (high rates),
PACs and PJCs
A. Normal upright QRS-T.
B. Upright QRS with ST depression and T inversion.
C. Upright QRS with ST elevation.
D. BBB. Broad R-wave with T inversion.
E. Biphasic QRS with T inversion.
F. QS with ST elevation.
G. BBB. Broad S-wave with upright T.
Ventricular QRS types for: Idioventricular,V.Tach. and PVCs:
A. Broad rS wave.
B. Broad R wave.
C. Broad QS wave
D. Broad QS wave. Same as C.
E. Broad R wave.
F. Broad Rr Wave.
G. Broad Rr Wave. Same as F.
Heart sounds:
Heart sounds are synchronized to ECG.
Adult Child Infant
Heart sounds: Manikin Manikin Manikin
Normal •••
Aortic Stenosis •••
Austin Flint Murmur •••
Mitral Valve Prolapse •
Systolic Murmur •••
Diastolic Murmur •
Friction Rub •
Opening Snap @70 msec •
Stills Murmur ••
Atrial Septal Defect (ASD) ••
Ventricular Septal Defect (VSD) ••
Pulmonary Stenosis •
VitalSim06DfUengelsk 11.09.03 08:14 Page 24
