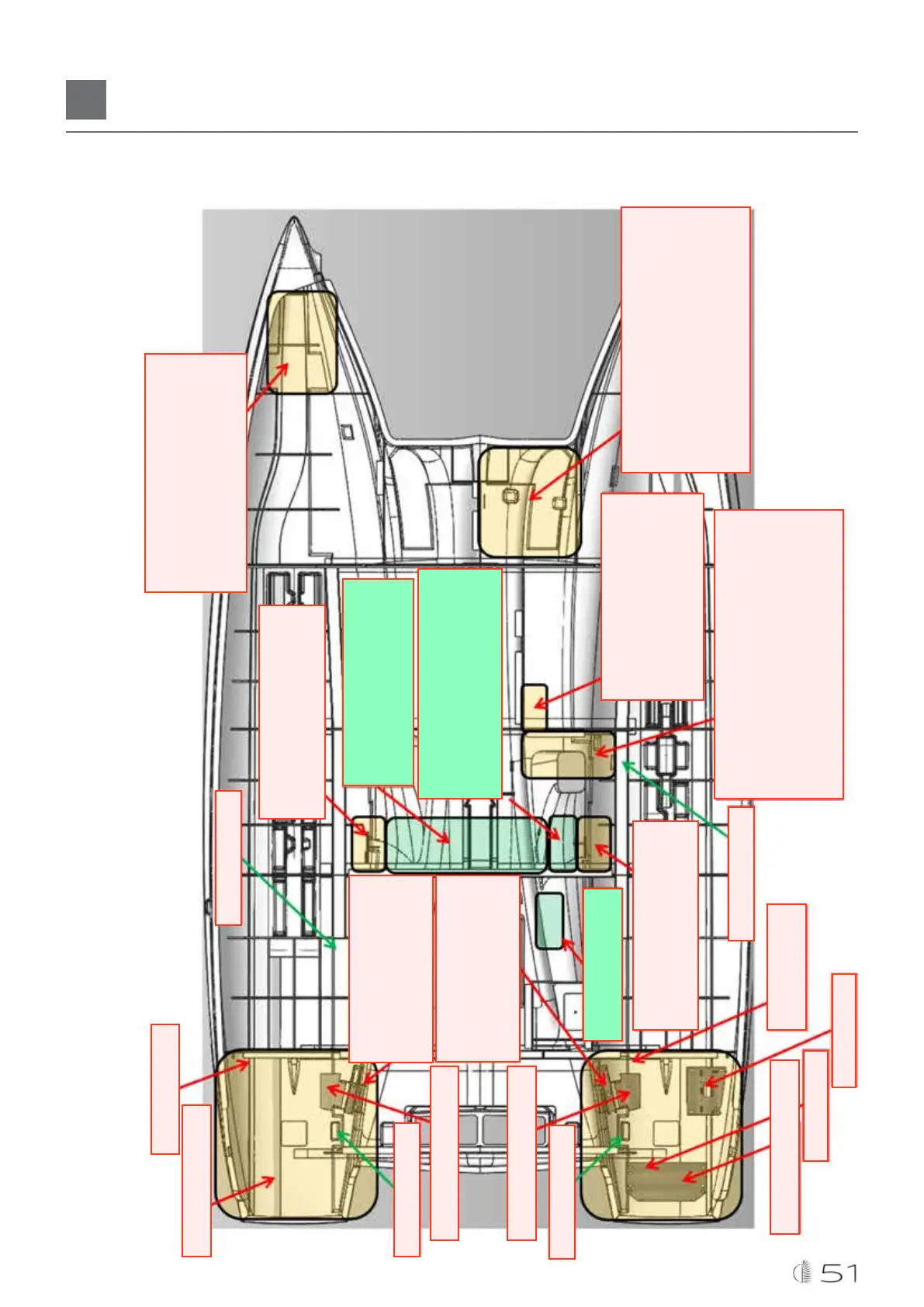

12 V CIRCUIT
MO7 - BOW THRUSTER K13 - THRUSTER BATTERY CUT-OUT F59 - FUSE G13/14/15/16 - THRUSTER BATTERIES F58 - FUSE CF8 U13 - 12 V/24 V CHARGER
FUSE - MISC. EQUIPMMENT FUSE - CABIN EQUIPMMENT ELECTRONIC RELAY + FUSES REFRIGERATOR RELAY + FUSES LIGHTING RELAY LIGHTING UNIT # X30
ROOF FLAP X05-POWER CONSOLE WINCHES FUSES - ROOF EQUIPMENT FUSES - DOWNSTREAM CC ELECTRONICS LIGHTING UNIT #1 X32
ROOF K06-MAINSAIL HALYARD WINCH RELAY K07-PORT WINCH RELAY K08-STARBOARD WINCH RELAY
ROOF (cockpit hatch) K09-LINE DRIVER RELAY
XA02-ANODE PLATE
XA01-ANODE PLATE
XT02-EARTH PLATE
XT02-EARTH PLATE
FUSES - STARBOARD HULL EQUIPMENT X09 FUSES - STARBOARD CAB EQUIPMENT X08 UNIT 7#0 / LIGHTING UNIT#4 X31 X34
X01-MAIN BUSBAR K05-SERVICE BATTERY CUT-OUT X02-SERVICE BUSBAR K01-ENGINE BATTERY CUT-OUT U03-LOAD SPLITTER
UO4-LOAD SPLITTER KO2-ENGINE BATTERY CUT-OUT KO3-COUPLING BATTERY CUT-OUT X20-PILOT COMPUTER PRT03-AIR CON AC BOX
XO3-SERVICE BUSBAR U12-INVERTER 2000 W 12 V DC PANEL (CONTROLS° Q03-INVERTER + RELAY CIRCUIT BREAKER PANEL S01-SOURCE SELECTOR GEN / SHORE S02-SOURCE SELECTOR GEN / AIR CON PRT01/02-MAIN CIRCUIT BREAKER PANEL X21-EARTH SPLITTER
G09-GENERATEUR G12 - GE STARTER BATTERY K04 - GE STARTER BATTERY CUT-OUT UO5 - GE STARTER BATTERY CHARGER M01 - WINDLASS MOTOR K12 - WINDLASS RELAY F53 - WINDLASS CIRCUIT BREAKER Q02 - GENERATOR PROTECTION BOX
U01-CHARGER 60A U01-CHARGER 40A
MO9-PILOT PUMP
MO8-TENDERLIFT PUMP
G11-STARTER BATTERY G10-STARTER BATTERY
BATTERY BANK #2
BATTERY BANK #1
BATTERY BANK #3
FUSES PORT HULL EQUIPMENT FUSES PORT CAB EQUIPMENT UNIT 7#1 / LIGHTING UNIT#3
