HOISTING AND TRANSPORT

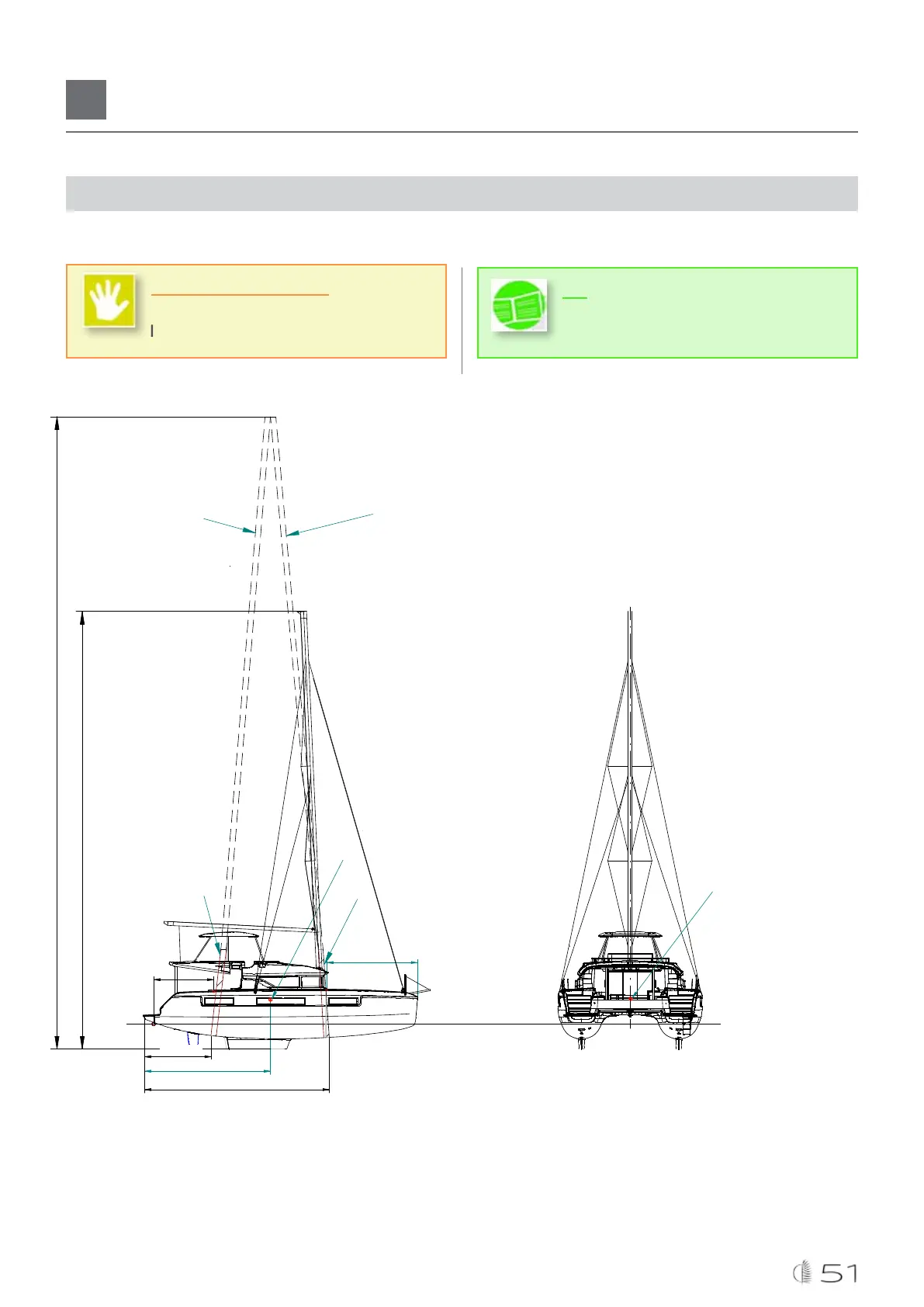

6.1 . DIAGRAM, DIMENSIONS AND POSITIONS OF THE HOISTING BELTS
6. Hoisting and transport
ATTENTION
Make sure that the boat is stable on its tow
lines, both lengthways and widthways.
ADVICE-RECOMMENDATIONS
Call on a diver for the strainers and sea-
cocks fittings.
The necessary hoisting belts are described below:
- Two lifting slings with flat straps
- Four carrying bands
- Two folded eyes – CAT2
CMU: 16 T
Working length: 17M30 (AFT) and 16M86 (BOW)
LAGOON 51
3710
7050
10330
3350
5090
CDG : Mmo : Déplacement en condition minimale
Sangle 16.86 M
Sangle 17.30 M
Sangle 30 M
Sangle 30 M
CDG : Mmo : Déplacement en condition minimale
3710 mm
10330 mm
7050 mm
