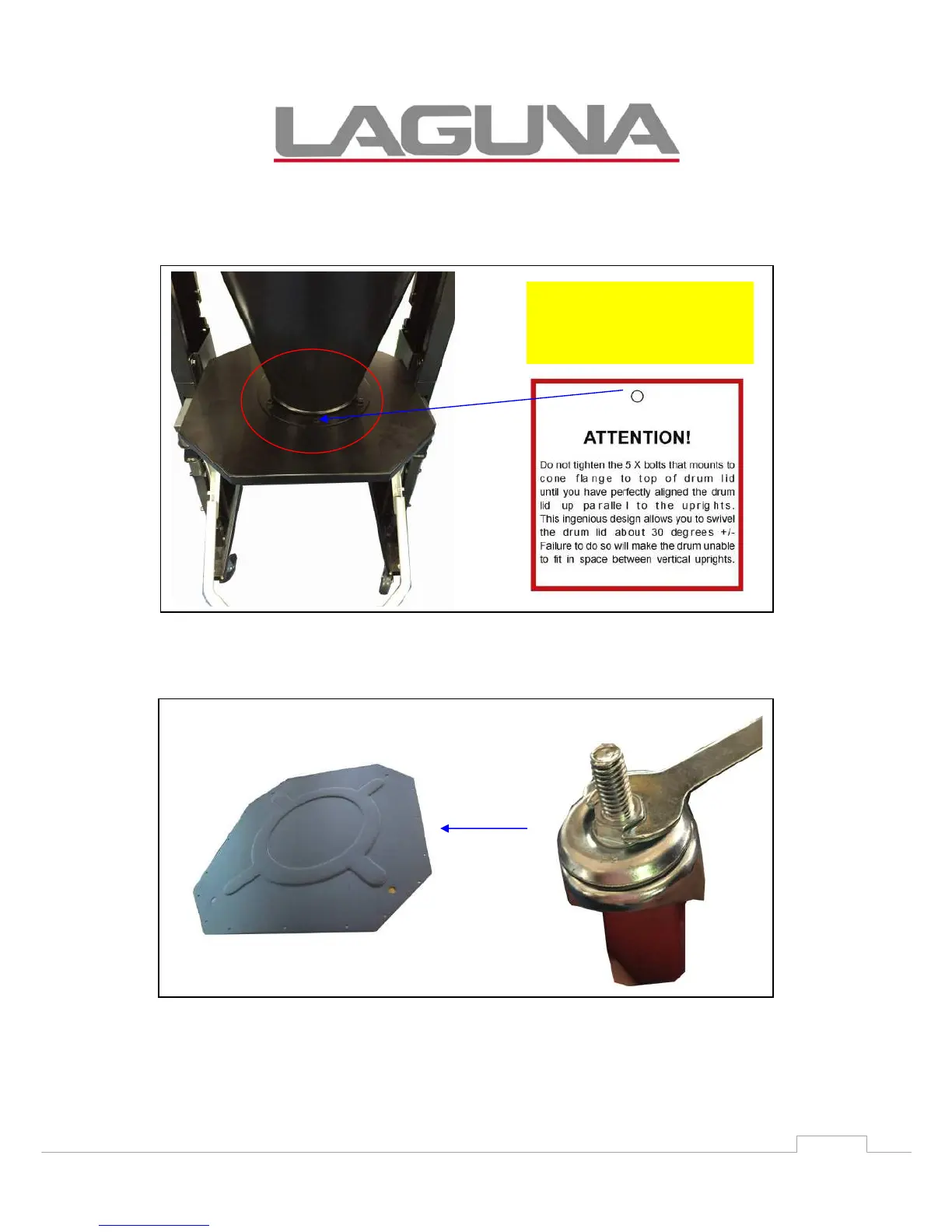

Step Eighteen: Secure the Octagon drum lid to the cyclone funnel using (8)
5/16”*3/4” hex bolts, (16) 5/16”*OD18*2t flat washers and (8) 5/16” hex nuts..
Make sure to first attach all the bolts on before tightening the bolts. Failure to do
will result in the drum lid not being able to align with the drum.
Step Nineteen: Assemble the wheels to the Octagon drum. Take the (4) 3”
wheels and secure to Octagon drum base panel (N) using (8) 3/8”*OD23*2t
flat washers and (4) 3/8” hex nuts.Use the flat wrench provided to fasten tightly.
