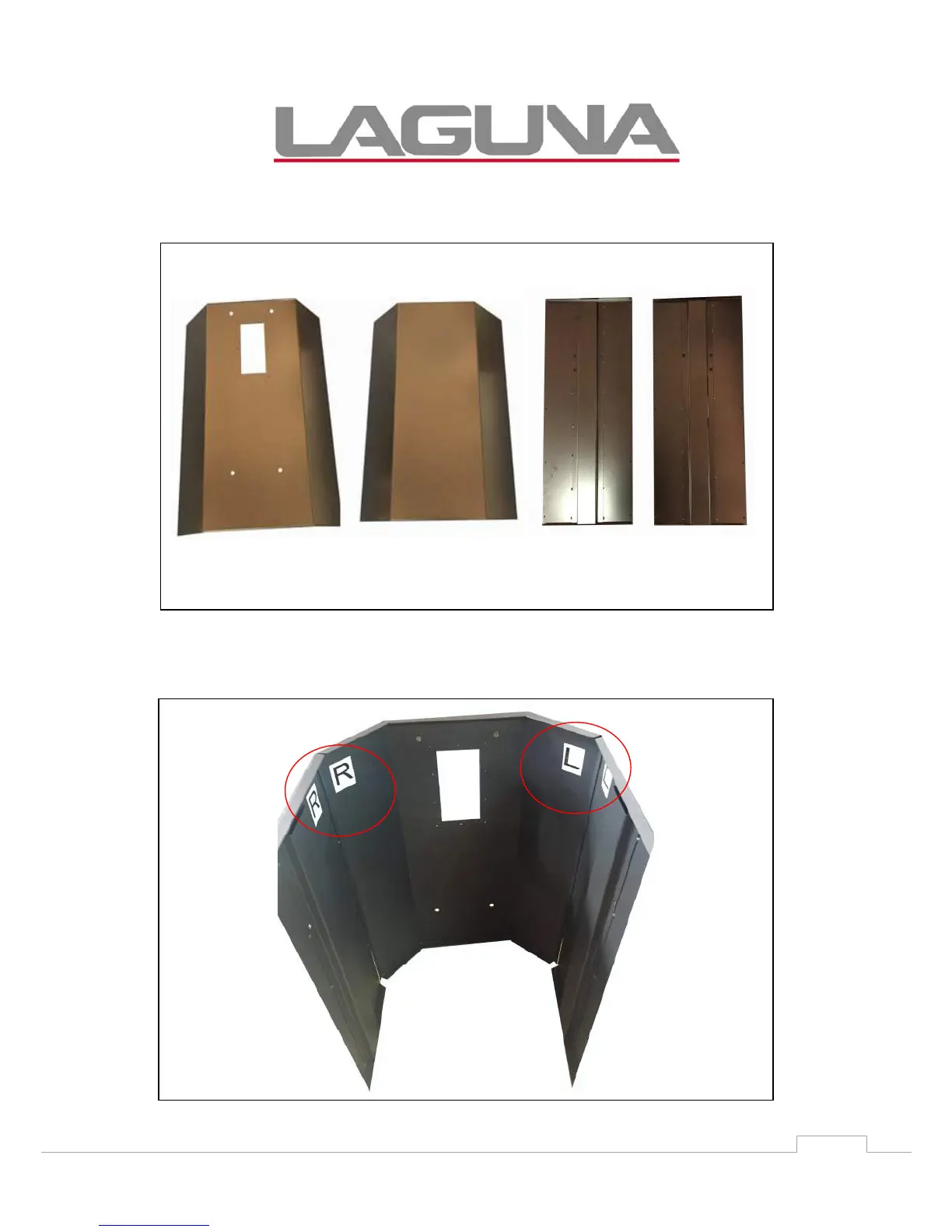

Step Twenty: Take the Octagon drum side panels and assemble together,
secure with (40) M4*12mm sheet metal thread bolts. Take note of the left and
right panels; do not assemble the incorrect sides. Refer to the next step..
Step Twenty One: The panels have labels R and L on them to show you which
panels should be bolted together to prevent any confusion. Please assemble
them together per photo below.
