3HP Mobile Dust Cyclone Manual
31

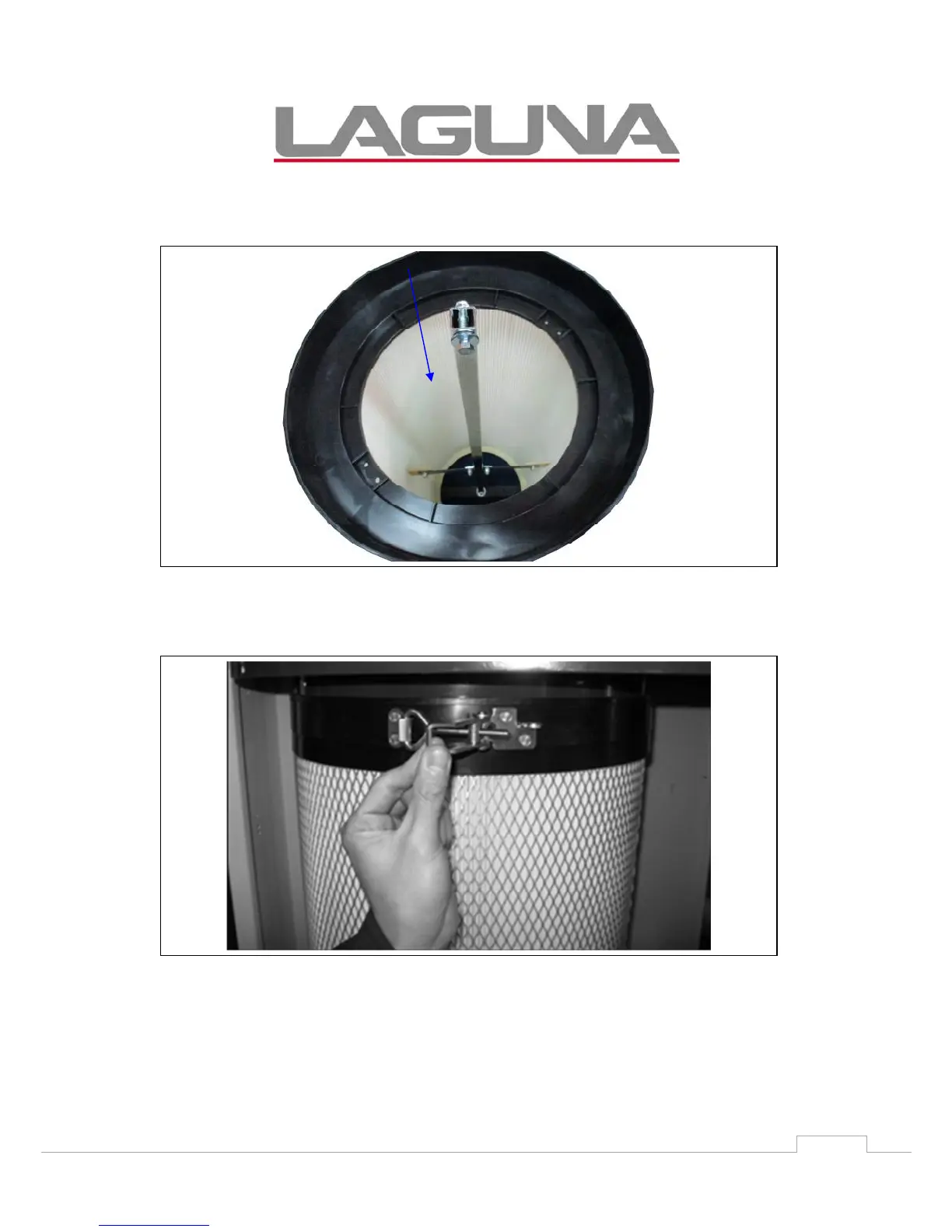

Step Thirty Five: Insert the rotation shaft assembly into the canister filter. Slightly
bend the paddles to get them into the canister filter.
Step Thirty Six: Assemble the canister filter to the dust chute. Tighten the band
clamp and adjust the tightness accordingly to ensure the canister filter is tightly
fitted onto the dust chute.
