laguna MDCCF32201 - Page 33

3HP Mobile Dust Cyclone Manual
32

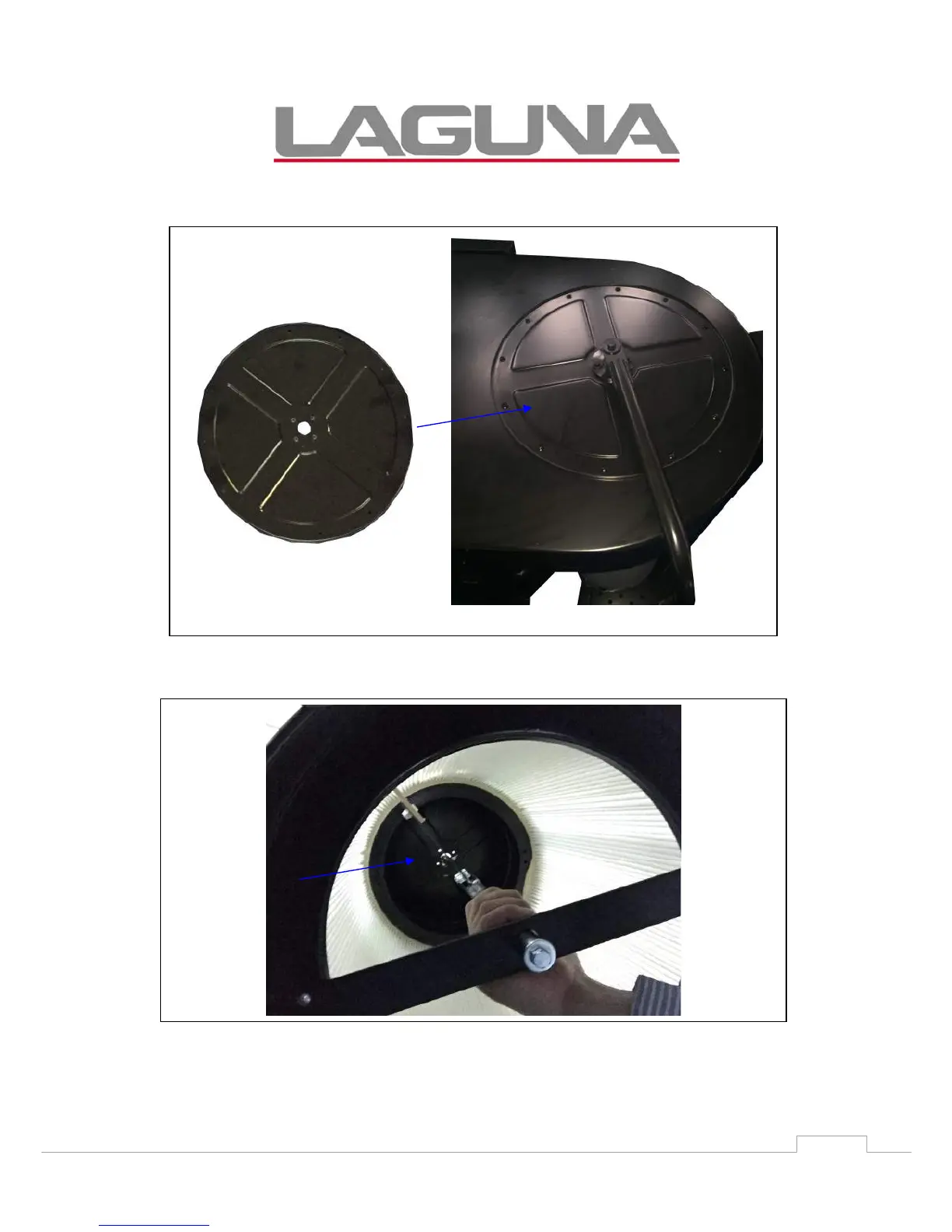

Step Thirty Seven: Attach the canister cover plate to the dust chute using (12)
3/16”*1/2” sheet metal thread bolts.
Step Thirty Eight: From the bottom of the canister filter, push the rotation shaft
through the hole in the middle of the canister cover plate.
