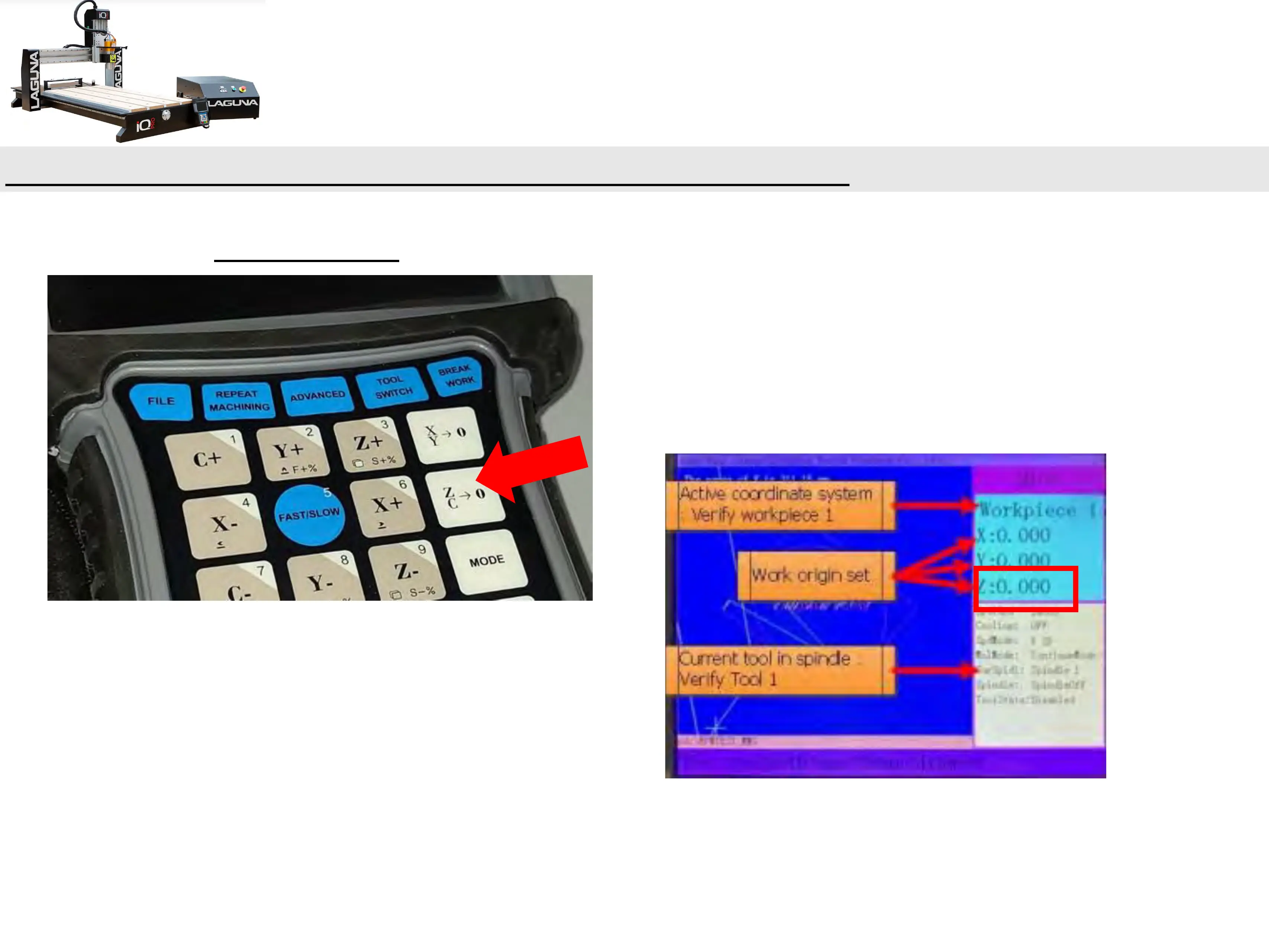

MULTIPLE TOOL PROGRAM (Cont’d.)-SETTING Z WORK ORIGIN
b. Press the “ZC-->0 Button”.
c. On the controller, you will see the Z-Axis coordinate go to zero (Figure #1).
Figure #1-Control Screen after Loading
Program and Setting Work Origin.
