LAI Games Slam'N'Jam User Manual

Operator's Manual – Slam'N'Jam
© LAI GAMES
Page 9

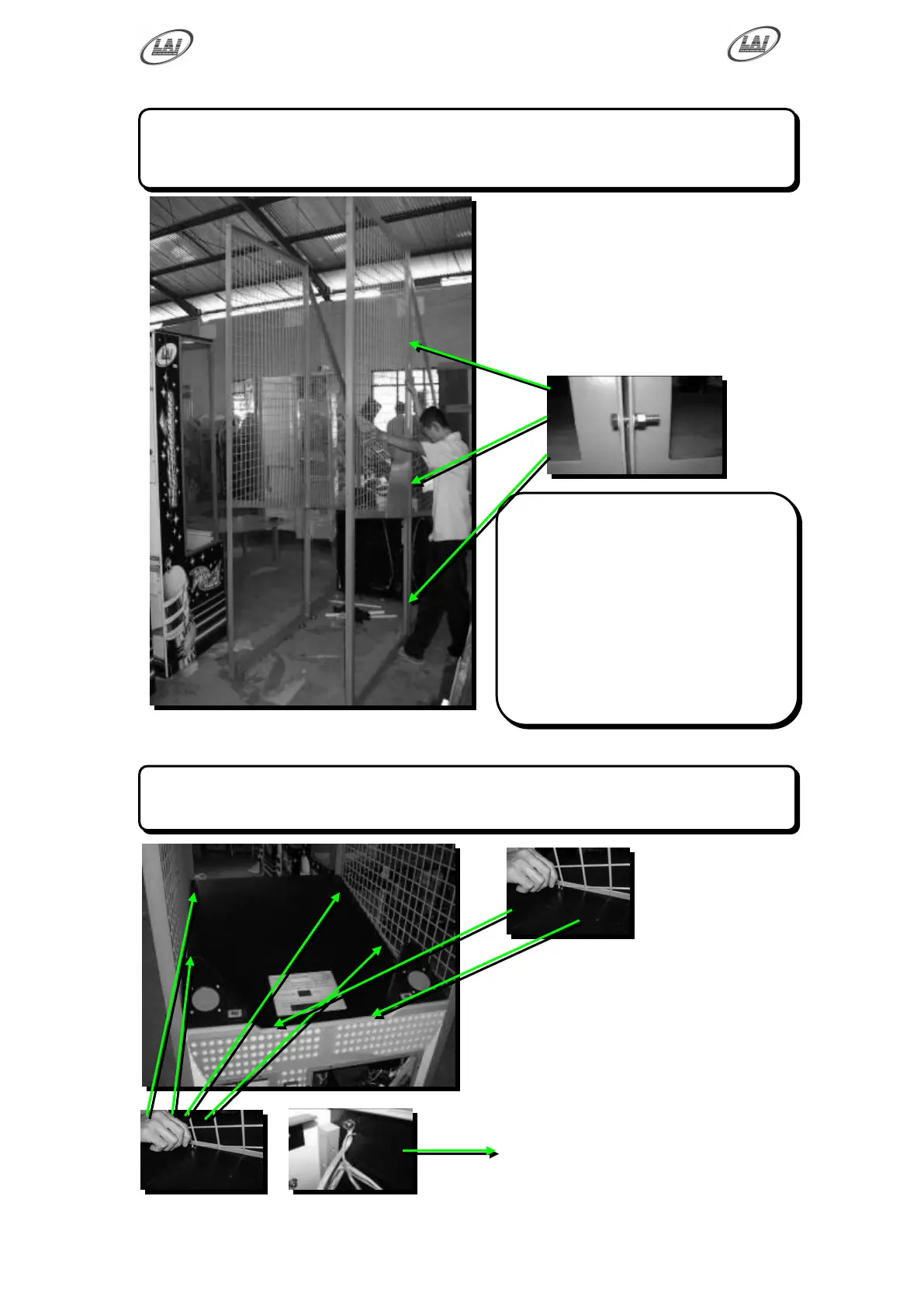

STEP TWO: Attaching Rear Side Frames.
STEP THREE: Attaching the Front Playfield.
* NOTE! *
 This job is easiest to complete using two people. One to hold the frame, and one
to bolt the frame in place.
 Attach to the two rear frames four of
the *Rubber Feet (Frame Glides)
supplied
 Bolt the two rear side frames to the
front frames using the *eight M8 x
30mm bolts, washers, spring
washers and nuts supplied.
* HINTS! *
Adjust the rubber feet on the frames
to align them for easier assembly.
To help in alignment of panels don‟t
tighten bolts until most of the
assembly is completed.
Don‟t place the bolts in the third
hole from the bottom; this is for the
barrier mesh.
* NOTE! *
 DON‟T FORGET to remove the keys from inside the game cabinet.
 Fit the front playfield to the front
side frames, and bolt in place using
the *six M6 x 50mm Knockdown
bolts, washers, Nylon lock nuts
supplied, access to four of the bolts
is through the front door.
 Also plug in the 6 PIN, left and
right speaker cables into the game
cabinet, and remember to attach the
earth connector to each of the
speaker Pods.
