LAI Games Slam'N'Jam User Manual

Operator's Manual – Slam'N'Jam
© LAI GAMES
Page 15

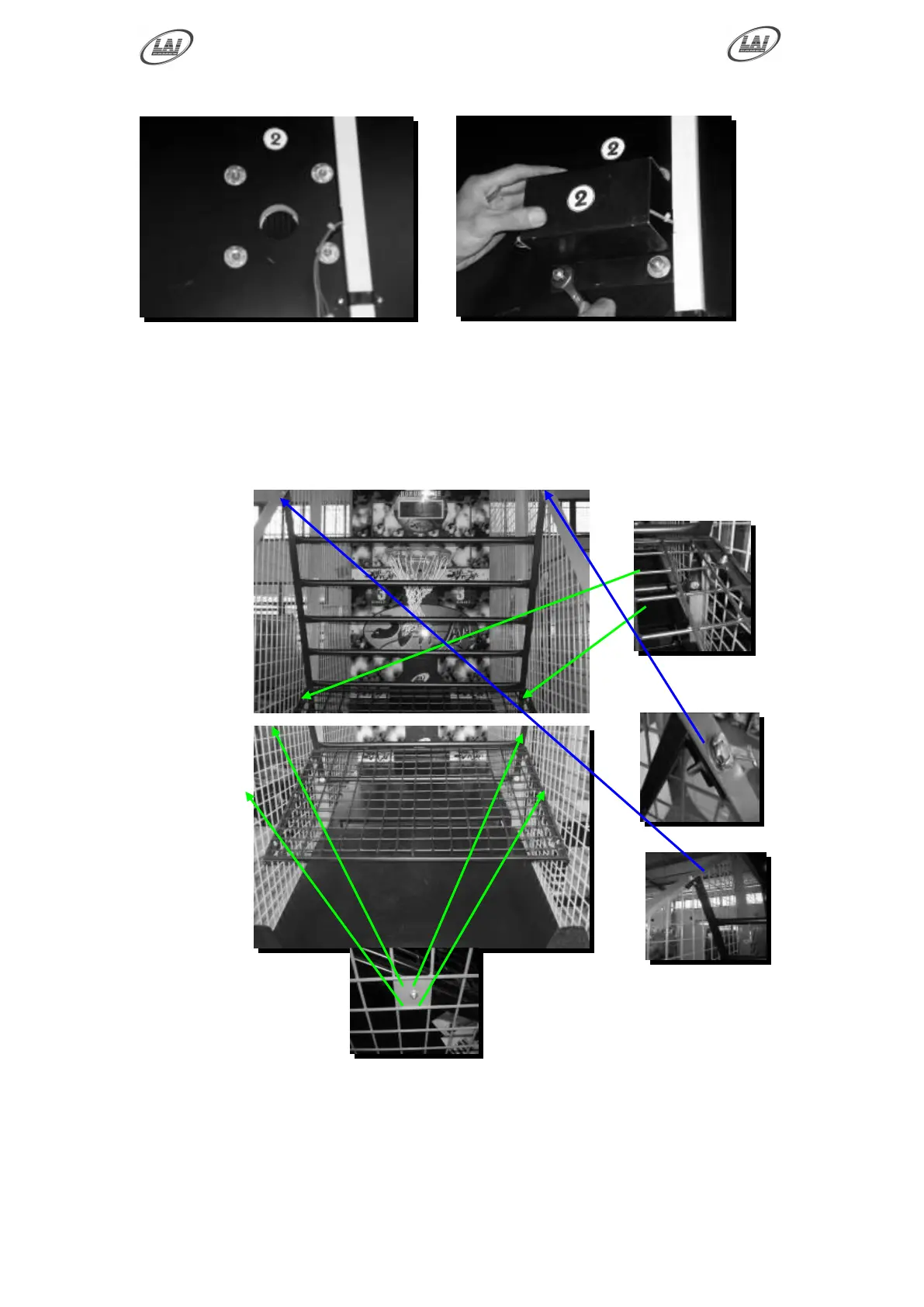

STEP TEN: Fitting Sensor Cover.
 Fit the sensor cover onto the four bolts from the ball hoop using the *four sets of
M8 washers, spring washers and nuts supplied.
STEP ELEVEN: Fitting the 1
st
barrier and 2
nd
barrier.
 Attach the barrier panel assembly at the top bolt holes using the *two, M8 x
30mm bolts, flat washers, spring washers and nuts supplied.
 Next attach at the bottom bolt holes together with the ball stop bar using the *two,
M8 x 30mm bolts, flat washers, spring washers and nuts supplied.
