LAI Games Slam'N'Jam User Manual

Operator's Manual – Slam'N'Jam
© LAI GAMES
Page 55

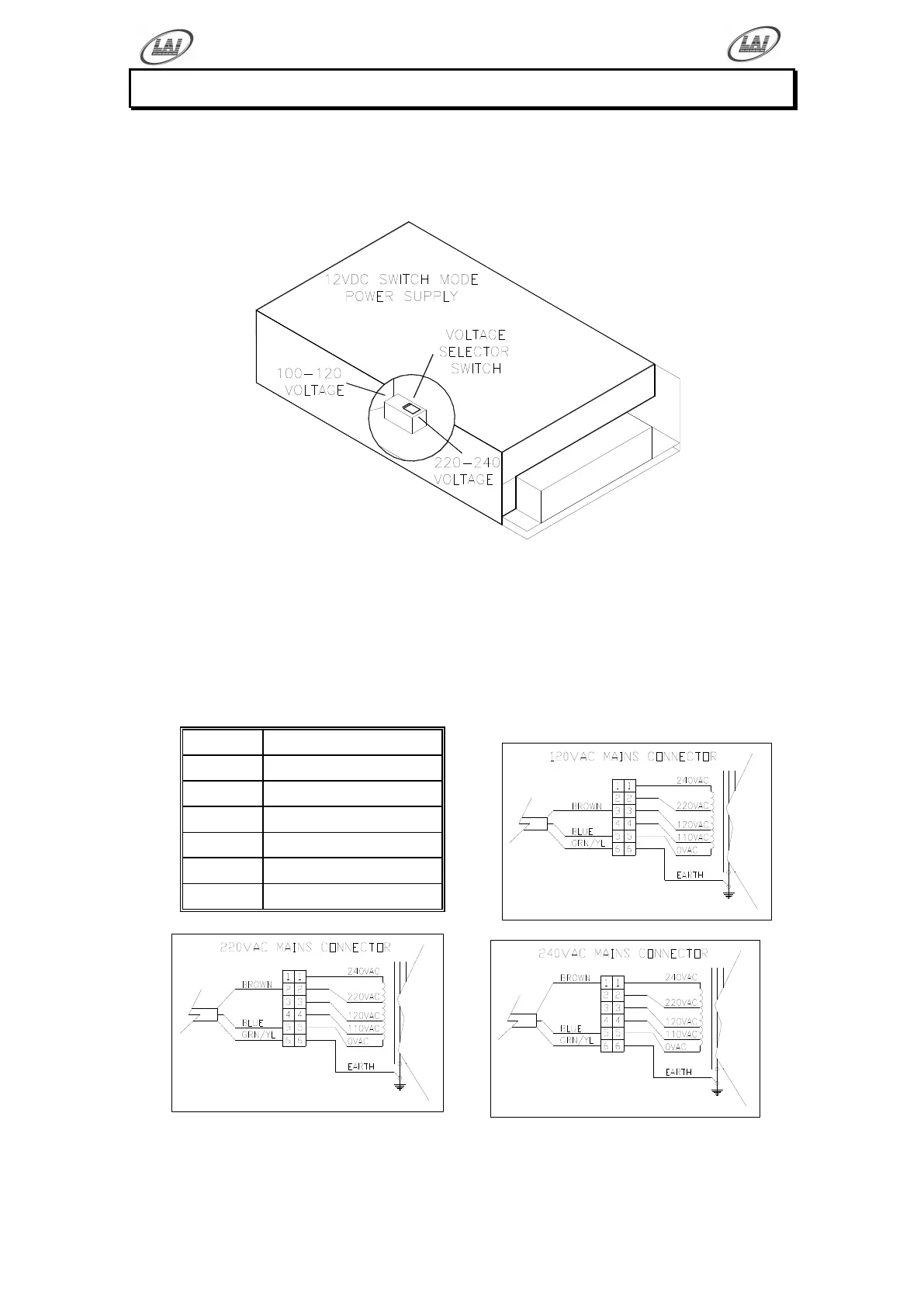

MAINS VOLTAGE ADJUSTMENT
 POWER SUPPLY
The Switch Mode Power Supply has a switch to set the mains voltage range. It is
located at the rear of the game cabinet, and is accessed via the back door. Use a
thin blade screwdriver to move the selector switch to the desired mains voltage
(See Diagram Below)
 TRANSFORMER CONNECTORS
Locate the machine transformer(s) in the base of the cabinet. If unsure of the
location of the transformer(s), refer to Parts location diagram of this manual.
Change the position of the „ACTIVE‟ or „HOT WIRE‟ input, (marked brown on
the diagram), to the position for the desired mains voltage. (See Diagram Below)
6 WAY CONNECTOR PINOUT
PIN
FUNCTION
1
240VAC
2
220VAC
3
120VAC
4
110VAC
5
0VAV (NEUTRAL)
6
EARTH
For More Information, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200
