Installation Manual 2013 Riv 2 9
Wiring Instructions
Warnings
This unit must be installed to conform with all relevant local standards and
regulations by suitably qualified engineers.
This unit must be earthed.
Please ensure this unit has a suitable, dedicated power supply/supplies, and is not
susceptible to frequent power loss via time clocks or other devices, etc.
Suitably rated and protected cables should be used.
Isolators should be double pole.
Isolate both units during maintenance and repairs.

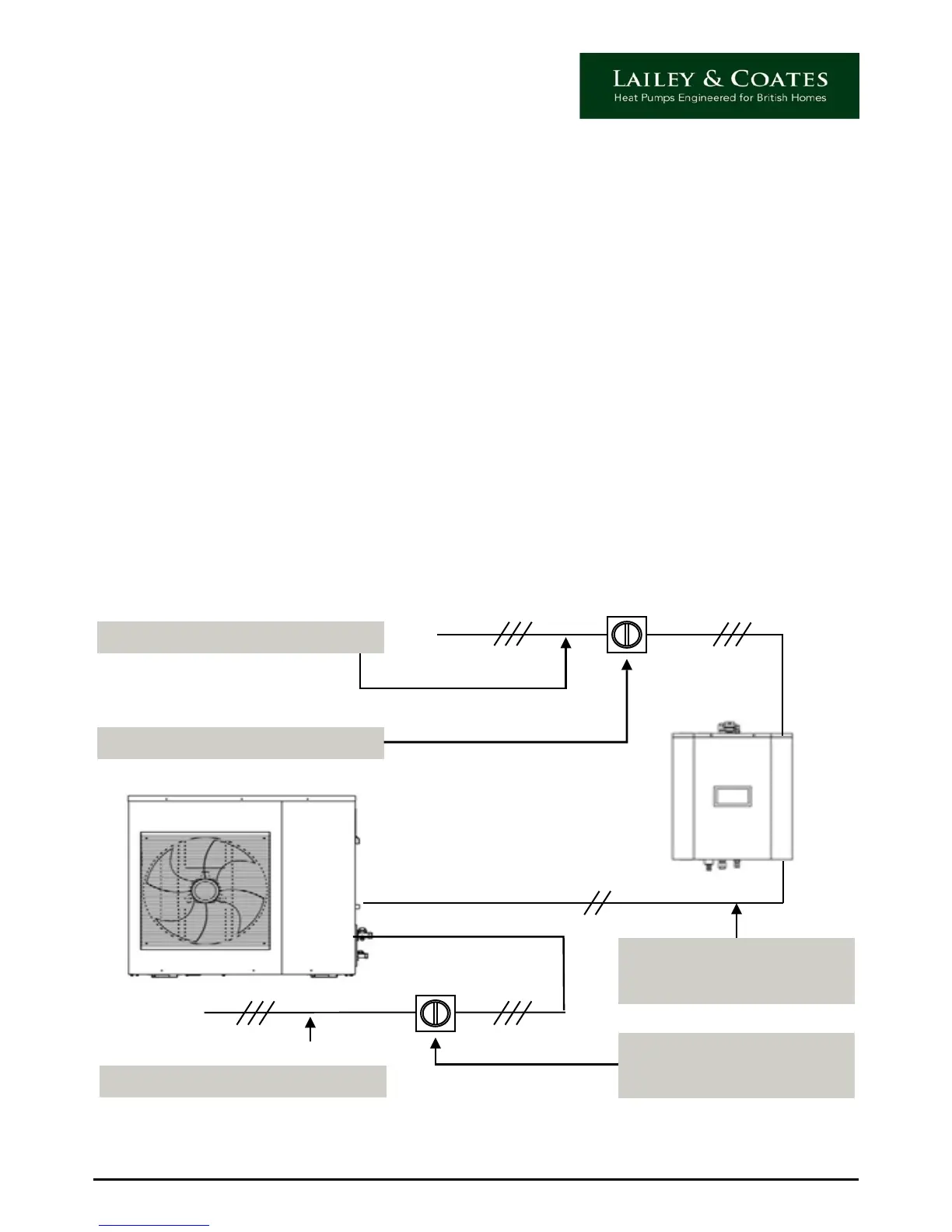

Power Input and Communication Cables:
3 Core 0.75mm screened
AGB terminals
3 Core Cable from MCB LNE
Suitably Rated Internal Isolator
3 Core Cable from MCB LNE
Suitably rated
weather-proof isolator
To Next Page
