ASSEMBLY ONTO THE BOILER

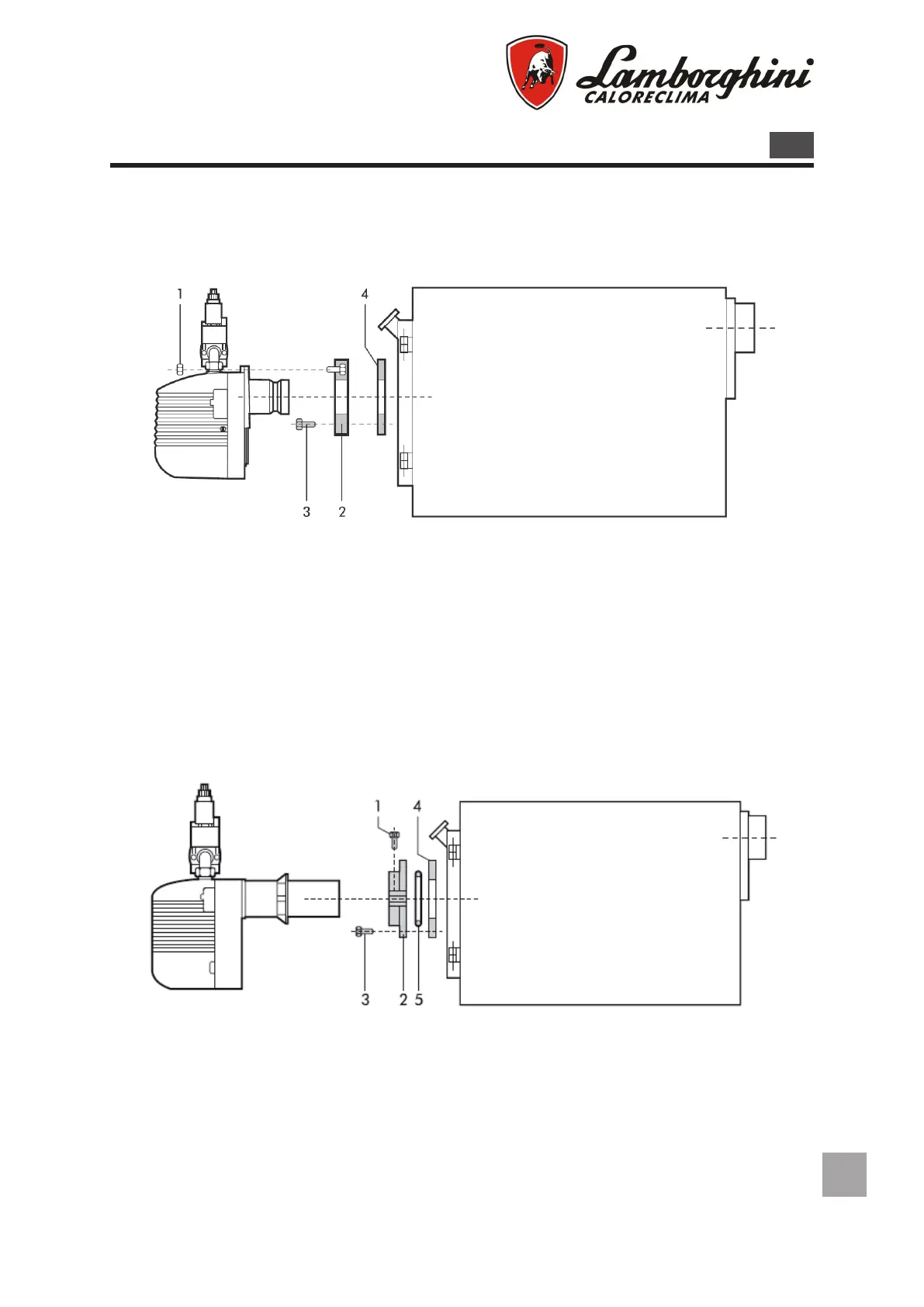

Fix ange 2 to the boiler using 4 screws 3 interposing the insulation gasket 4 and the possible
insulating cord 5. Insert the burner in the ange so that the draught tube penetrates into the
combustion chamber by the length suggested by the boiler manufacturer. Tighten screw 1 to
lock the burner in position.
Fix ange 2 to the boiler using 4 screws 3 interposing the insulation gasket 4. Insert the burner
in the ange so that the draught tube penetrates into the combustion chamber by the length
suggested by the boiler manufacturer. Tighten nut 1 to lock the burner in position.
