Lamona LAM7151 - Retaining Bracket Fitting

24

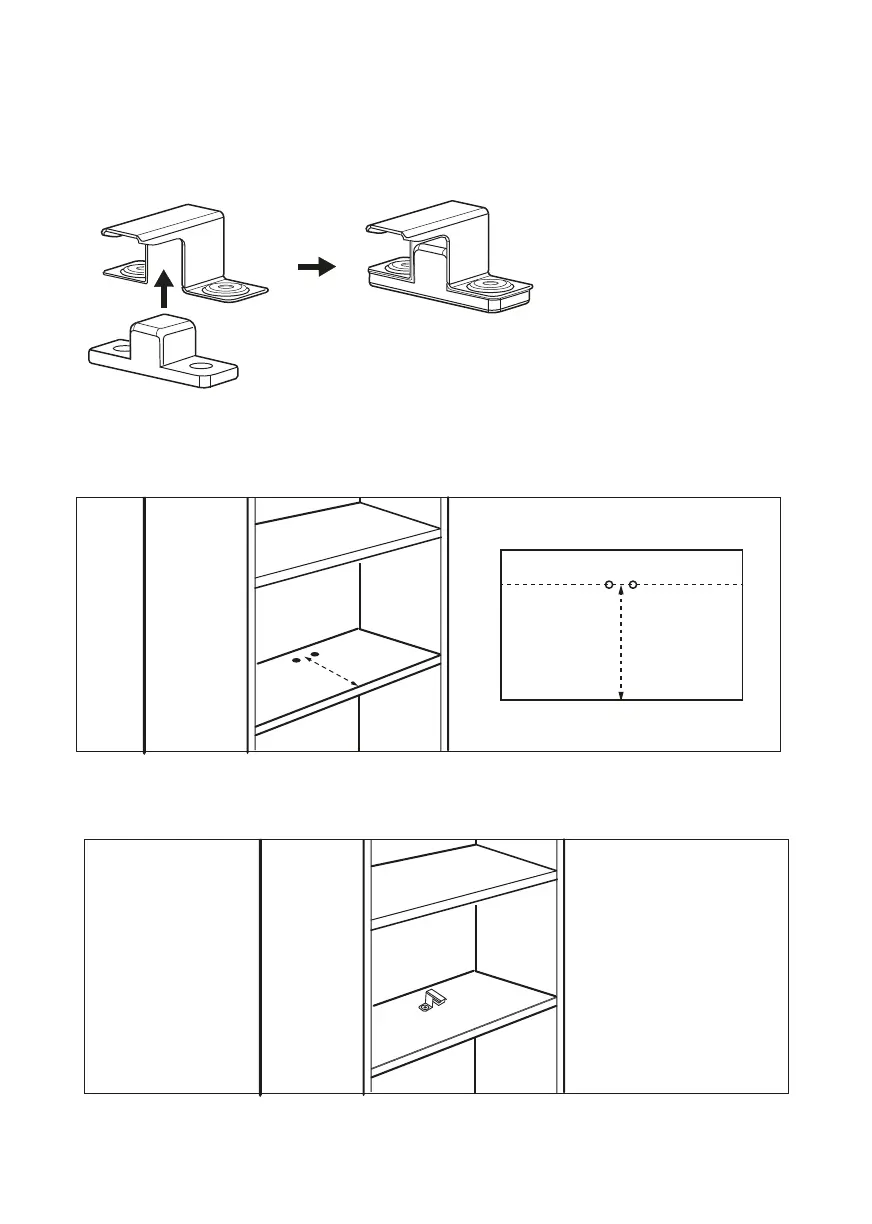

B - Retaining bracket fitting
1. Fit the 6mm rubber spacer to the anti-tilt bracket if additional height is required.
(Note: Shelf and fascias may need to be trimmed to suit).
3. Fix the subassembly with screw A.
2. Mark the shelf of cabinet according to drawing below for the position of the rear
retaining bracket.
350mm
350mm
Centre line
