14
COLOUR HOLDING TIME SETTING
Setting the dip-switches 8, 9, 10, 11, it is possible to choose the colour holding time (from 1 second to 8 hours).
Dip 8 Dip 9 Dip 10 Dip 11
Seconds
off off off off 1
ON off off off 5
off ON off off 10
ON ON off off 20
off off ON off 30
Dip 8 Dip 9 Dip 10 Dip 11
Minutes
ON off ON off 1
off ON ON off 2
ON ON ON off 5
off off off ON 10
ON off off ON 15
off ON off ON 30
Dip 8 Dip 9 Dip 10 Dip 11
Hours
ON ON off ON 1
off off ON ON 2
ON off ON ON 4
off ON ON ON 6
ON ON ON ON 8

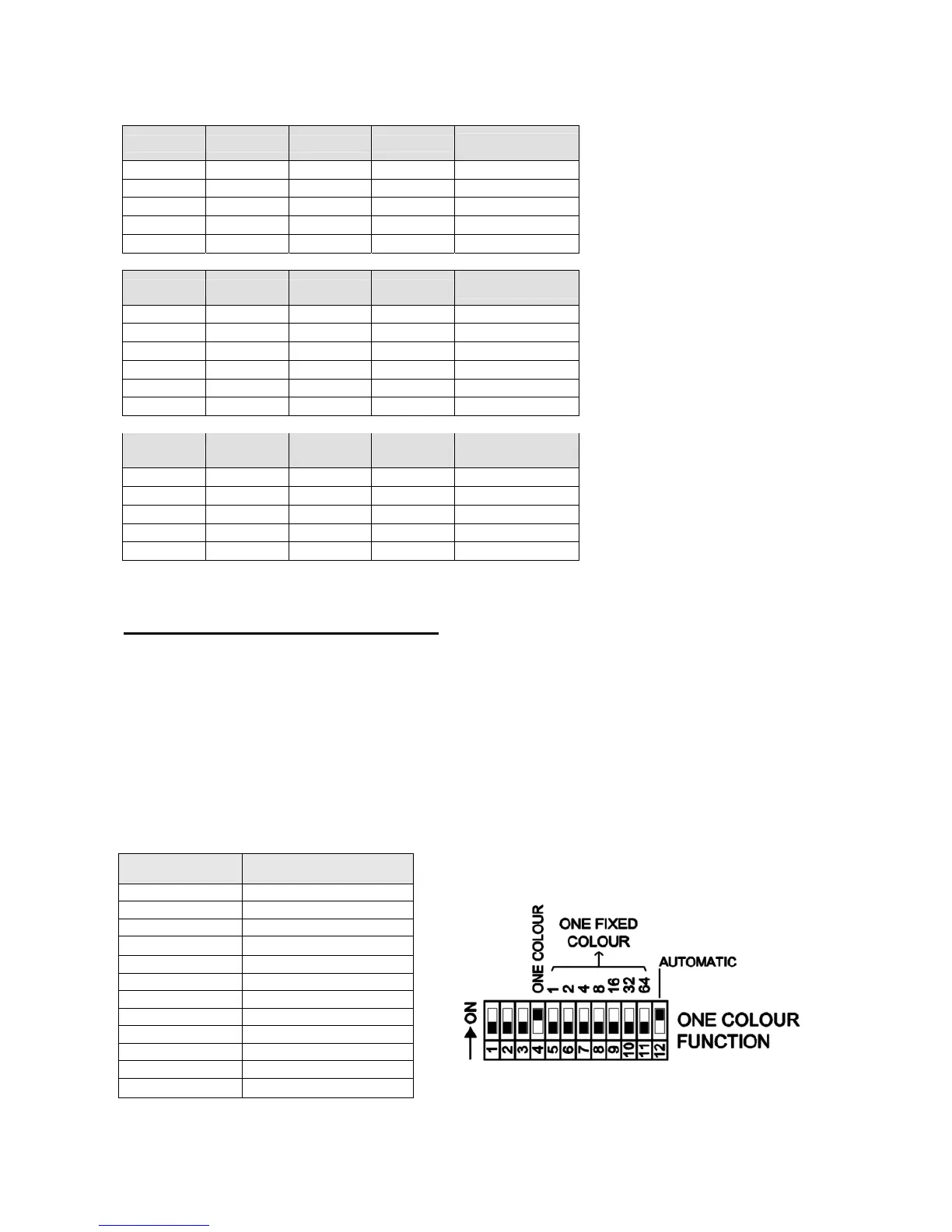

Stand alone mode (one fixed colour)
For the stand alone mode (STAND ALONE/MASTER), the dip-switch 12 has to be on the ON position. When the projector is
switched on, it will execute the functions set on the dip-switches.
If the projector has to execute one fixed colour, the dip-switch 4 has to be on ON position.
WARNING: The projector in stand alone mode becomes a DMX generator, it is necessary to disconnect that projector
by DMX controller or by the other projector MASTER because generates conflict in the signal.
Setting the dip-switches 5, 6, 7, 8, 9, 10, 11 it is possible to choose the fixed colour to project.
DIP-SWITCH VALUES
Dip 1 Not used
Dip 2 Not used
Dip 3 Not used
Dip 4
ON
Dip 5
1
Dip 6
2
Dip 7
4
Dip 8
8
Dip 9
16
Dip 10
32
Dip 11
64
Dip 12
ON
