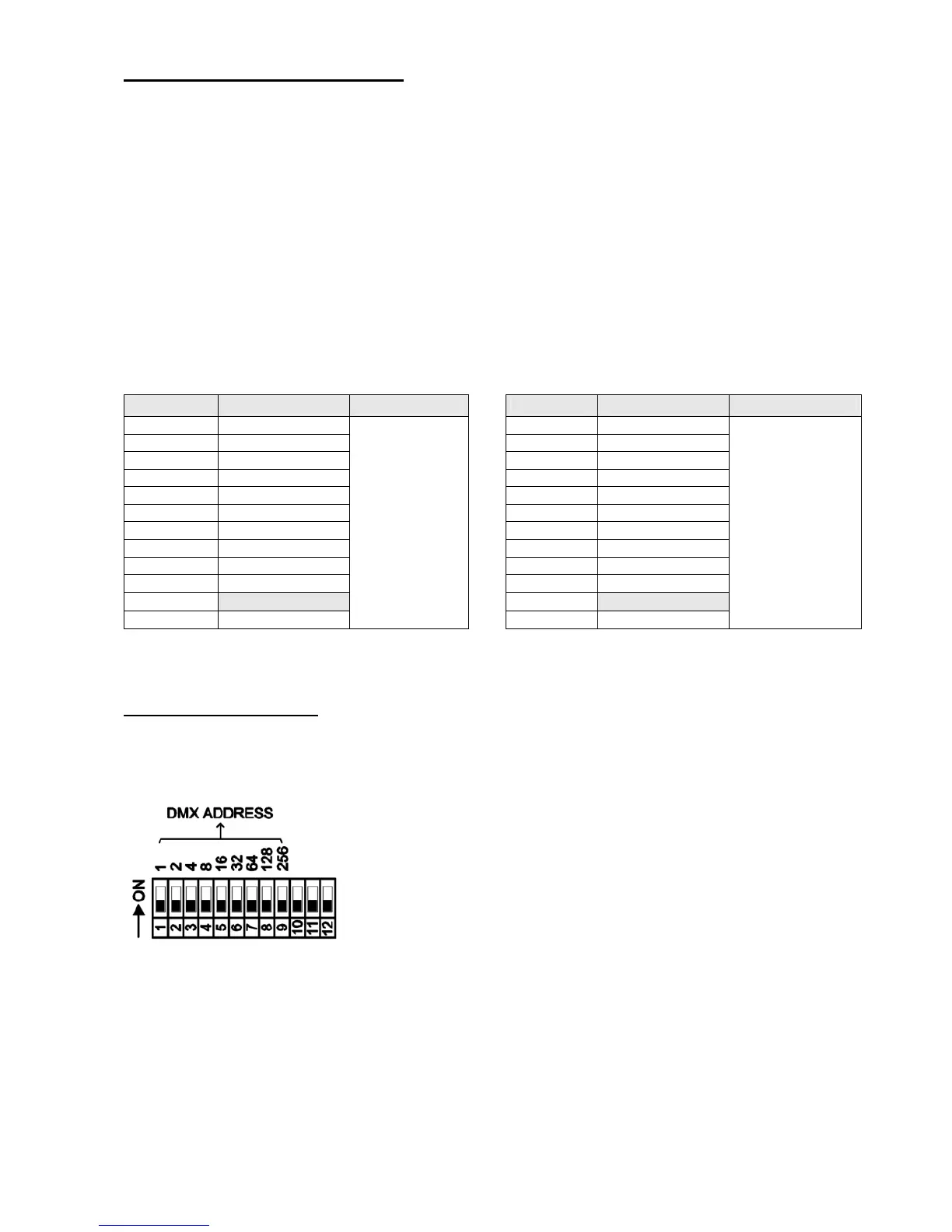

DMX specifications of projector
How to operate in “MODE 1” the colour will change from the white to the ending colour, the projector uses one DMX
CHANNEL, from 0 to 255.
How to operate in “MODE 2” the colour will change to use 3 DMX CHANNELS, ideal if you want a rainbow effect with
manual console:
- Set the three DMX channels (CH1, CH2, CH3) equal to ZERO.
- Set CH1 to get the starting colour
- Set CH2 to get the ending colour
- Set CH3 to get the desired time of the fading from the starting colour to the ending colour (see the following tabs)
The colour will change from the starting colour to the ending colour than back again to the starting colour and so on.
To change the fading time, you must set first the CH3 equal to ZERO, than you can set CH3 at a different value.
When the value of CH3 is closed to zero, the two channels CH1 and CH2 acts on the projector in the same way (the higher
value over-writes the lower).
MODE 1 MODE 2
Dip-switch FUNCTION MODE 1 Dip-switch FUNCTION MODE 2
Dip 1 DMX Add. (1) Dip 1 DMX Add. (1)
Dip 2 DMX Add. (2) Dip 2 DMX Add. (2)
Dip 3 DMX Add. (4) Dip 3 DMX Add. (4)
Dip 4 DMX Add. (8) Dip 4 DMX Add. (8)
Dip 5 DMX Add. (16) Dip 5 DMX Add. (16)
Dip 6 DMX Add. (32) Dip 6 DMX Add. (32)
Dip 7 DMX Add. (64) Dip 7 DMX Add. (64)
Dip 8 DMX Add. (128) Dip 8 DMX Add. (128)
Dip 9 DMX Add. (256)
DMX512
specifications:
the projector uses
one
DMX channel.
Dip 9 DMX Add. (256)
DMX512
specifications:
the projector uses
three
DMX channels.
Dip 10 Not used Dip 10 Not used
Dip 11
OFF
Dip 11
ON
Dip 12 OFF
Dip 12 OFF
DMX starting address
To pilot the projector with a DMX signal, it is necessary to assign a DMX address to the projector.
The projector is sold with DMX address set on 1.
To each dip-switch correspond a number, the sum of these values decides the first DMX channel of control.
For example, to set a projector on DMX starting address 39, you must set dip-switches values 32, 4, 2, and 1 to the ON
position, because 32+4+2+1=39
To pilot the projector by any DMX controller or by projector in stand-alone mode (STAND ALONE/MASTER) set on OFF
the dip-switches 12 (DMX/SLAVE).
Here following the dip-switches setting of each DMX address
