7
The sequences and the colours has to be the same on each projector, do not change the sequences

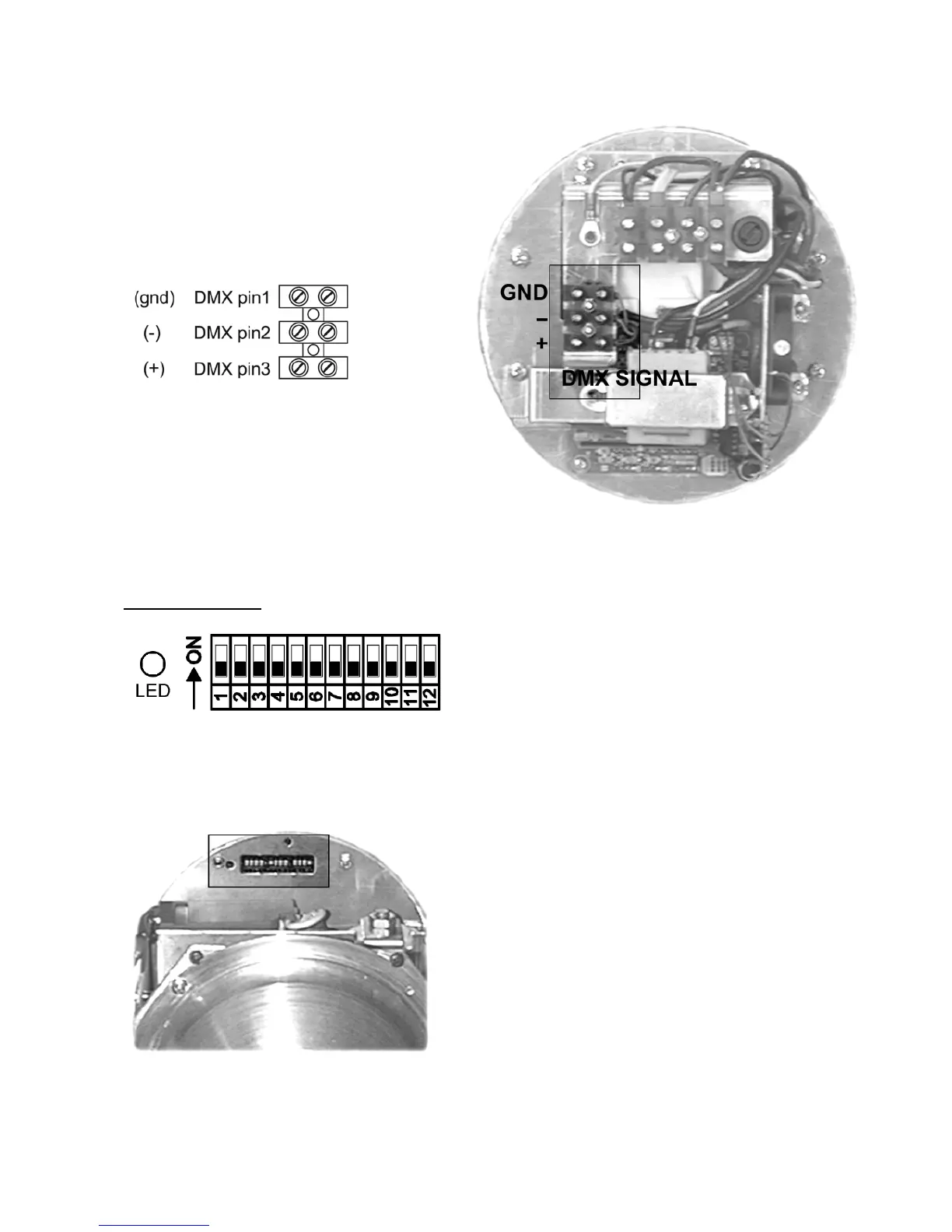

The IN and OUT signal cables must be connected directly to the terminal block inside the projector.
User’s interface
The LED lighted indicates the presence of DMX signal.
The LED flashing indicates the absence of DMX signal.
To modify the DMX address and the settings, it is necessary to move the dip-switches on ON or OFF position, following the
tables and the drawings of this manual.
