5 Operating Control and Displays
NOTICE
The points are approached from above by using the overshoot-function. If you use the over-
shoot-function in operation, you must program all points from above. Only if you do so, the
required position will match the actual position.
5.6.3 Other Displays

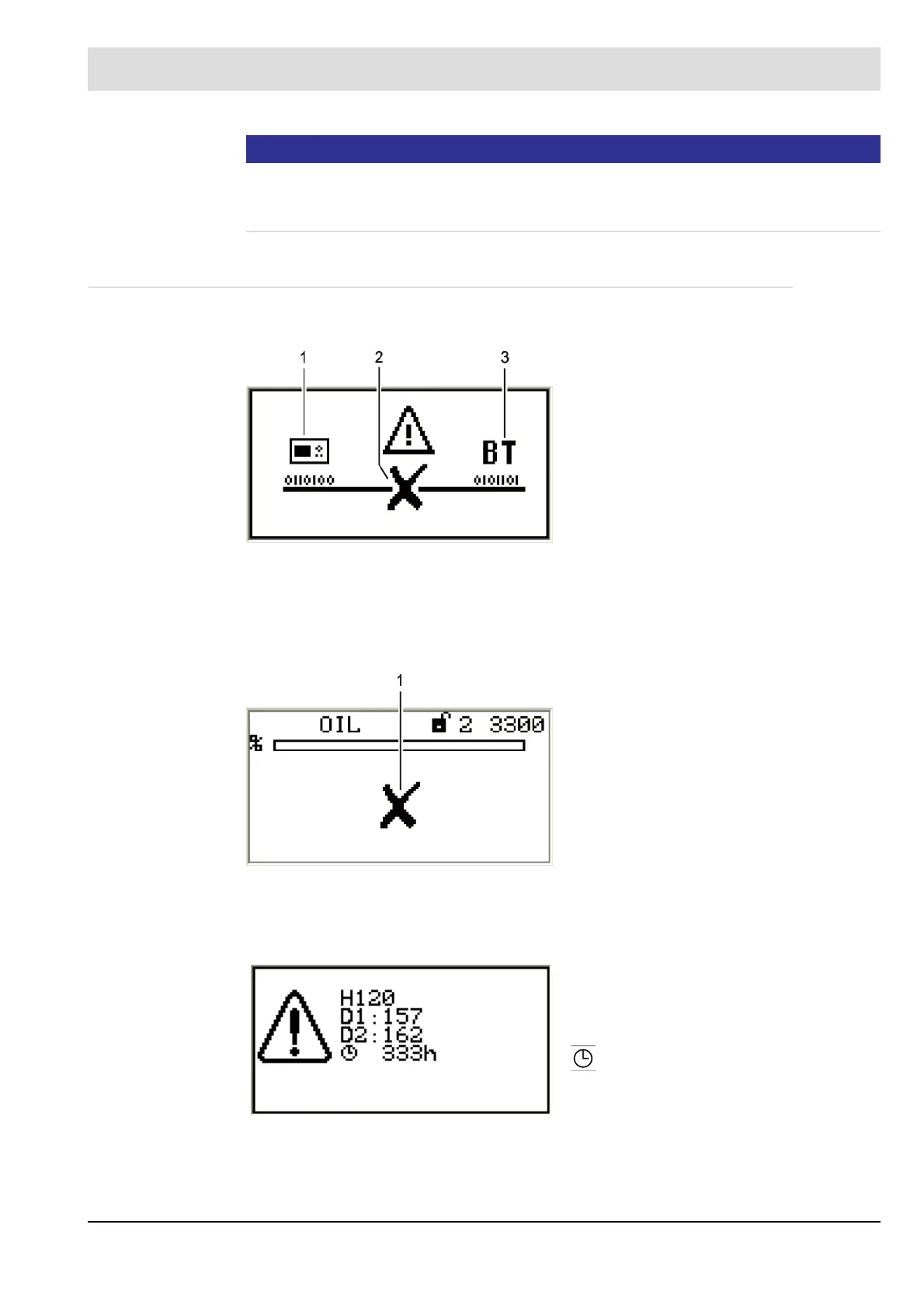

No connection between UI300 and BT300
Display shown e.g. when using LSB remote software and communication between BT300 and
UI300 is temporarily unavailable.
Termination
Error Mode
Fig. 5-7 No connection
1 UI300 User Interface pictogram
2 No connection symbol
3 BT300 burner control
Fig. 5-8 Termination
1 Communication error pictogram
connection unavailable
Fig. 5-9 BT300 ferror mode
H120 Failure number
D1 Diagnostics 1
D2 Diagnostics 2
Failure occurs at that time
