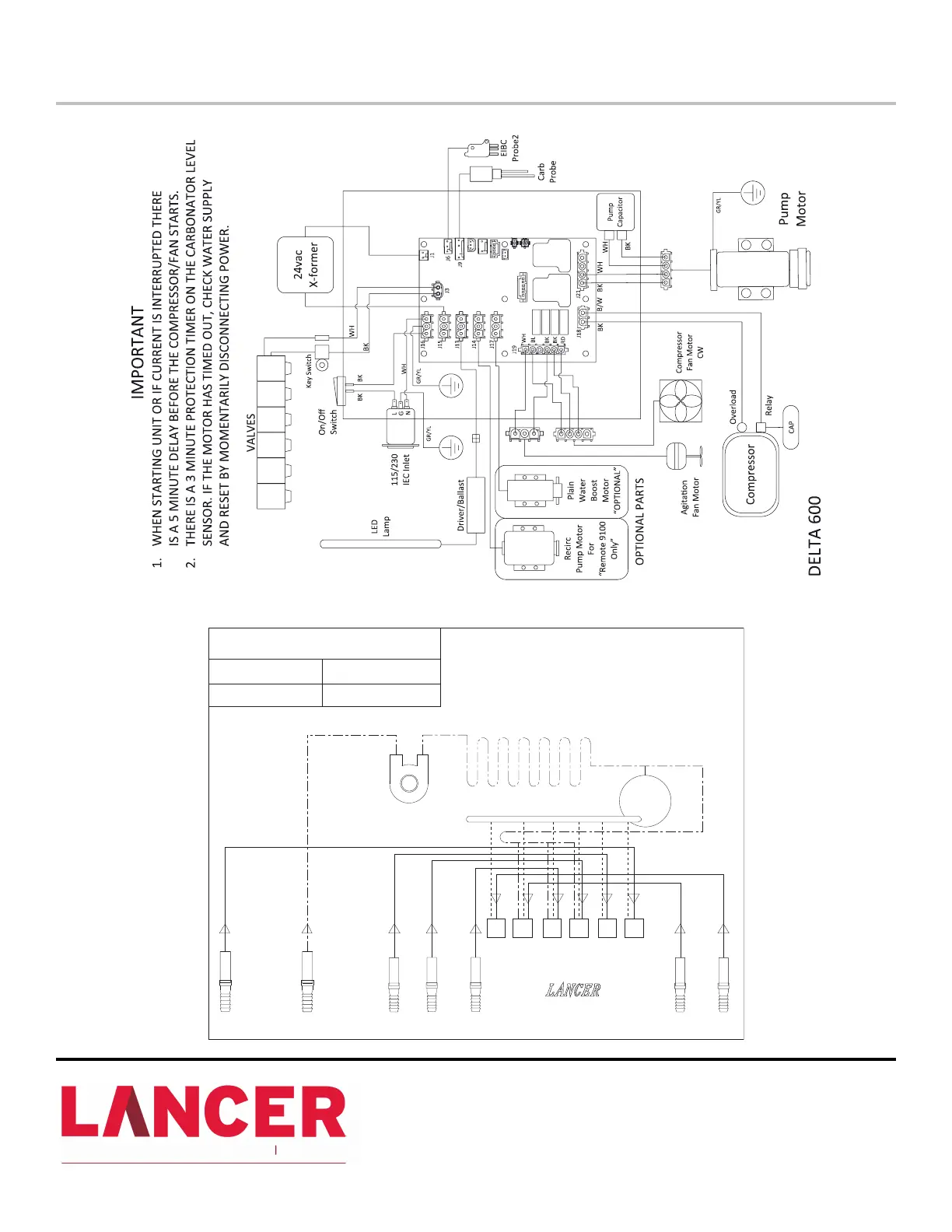

WIRING/PLUMBING DIAGRAMS
Plumbing Diagram
PLAIN WATER
COILS
CARB.
HIGH PRESSURE
WATER PUMP
V6 V5 V4 V3 V2 V1
S2S1 S3 S4 S5 S6
PRESSURE SETTINGS
CO 75 psi
50 psiWATER
2
PLAIN WATER INLET
TO CARBONATOR
PLUMBING DIAGRAM
DELTA III 9000
®
Wiring Diagram
