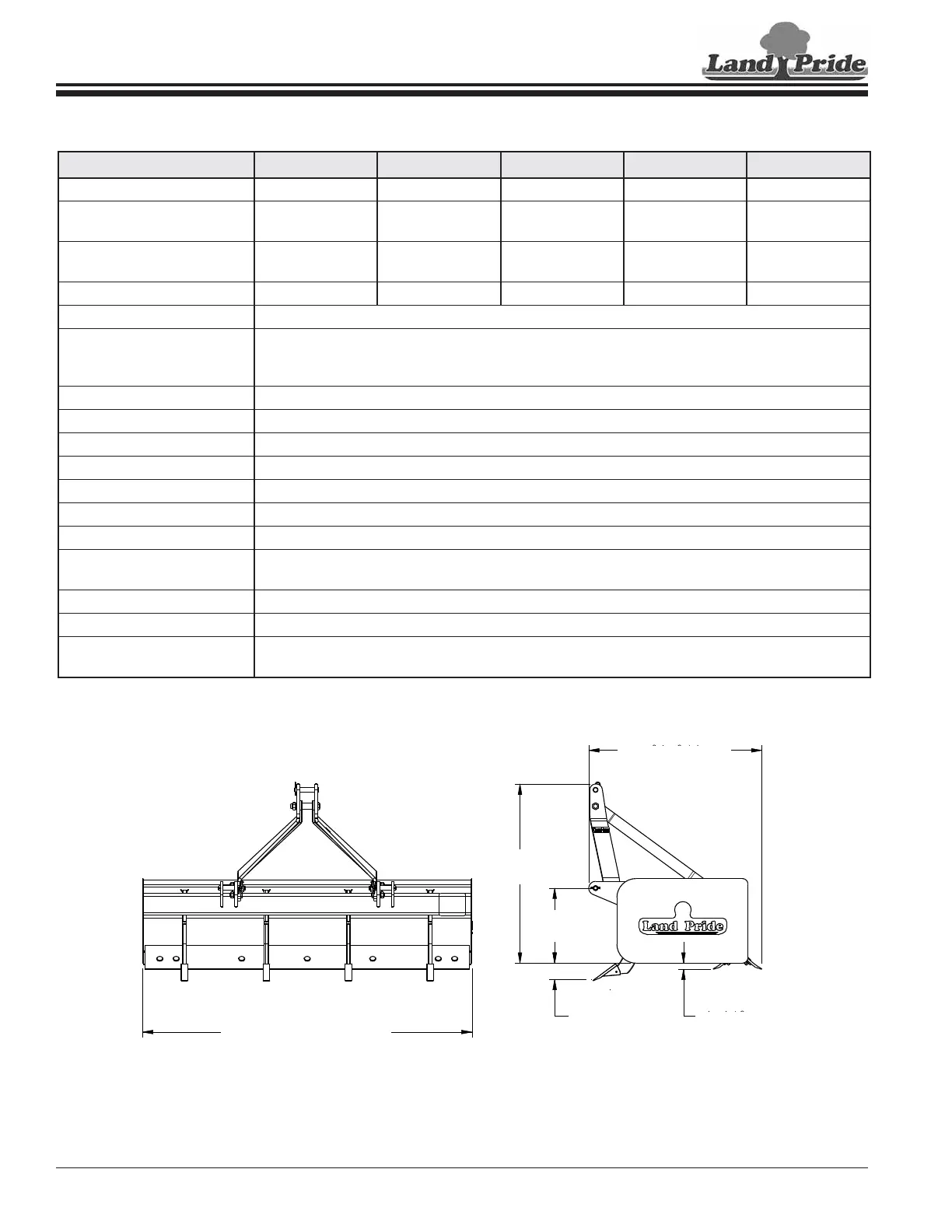

Section 5: Specifications & Capacities
30737
BB12 Series
BB1248 BB1254 BB1260 BB1266 BB1272
Working Width 48" (1.22 m) 54" (1.37 m) 60" (1.52 m) 66" (1.68 m) 72" (1.83 m)
Capacity
9.4 cu. ft.
(0.27 cu m)
10.57 cu. ft.
(0.30 cu m)
11.75 cu. ft.
(0.33 cu m)
12.92 cu. ft.
(0.37 cu m)
14.1 cu. ft.
(0.40 cu m)
Weight
316 lbs
(143.3 kg)
325 lbs
(147.4 kg)
346 lbs
(156.9 kg)
370 lbs
(167.8 kg)
404 lbs
(183.3 kg)
Number of Shanks 44456
Shank Material 3/4" x 2 1/2" x 15" (1.9 cm x 6.4 cm x 38.1 cm) heat treated spring steel
Vertical Shank Positions
3- positions
(2 1/4" (5.7 cm) above scraper end plates; 1/4" (6 mm) and 2 3/4" (7.0 cm) below scraper end
plates)
Shank Tip Construction Replaceable heat treated dimpled-on tips
Shank Beam 4" x 4" x 1/4" (10.2 cm x 10.2 cm x 0.6 cm) Manufactured shank tube
Shank Lift Mechanism Manual lift with spring retainer at each shank
Moldboard Bumped-formed moldboard 15 3/8" (39.1 cm) vertical height
Side Panels 3/16" (5 mm) thick x 16" (40.6 cm) high x 24" (61.0 cm) deep
Depth of Bucket 23 1/8" (58.7 cm)
Bucket Reinforcement Two welded braces to rear of bucket
Cutting Blades
2 ea. 3/8" x 6" (10 mm x 15.2 cm) high carbon, heat treated cutting edges; reversible and
replaceable
Maximum H.P. Rating 30 Hp (22.4 kw)
A-Frame Material 1/2" x 3" (13mm x 76 mm)
3-Point Hitch Type
Double strap lower hitch
Cat. I (Fits Land Pride Quick Hitch)
BB1248 = 48 3/8" (1.23 m)
BB1254 = 54 3/8" (1.38 m)
BB1260 = 60 3/8" (1.53 m)
BB1266 = 66 3/8" (1.69 m)
BB1272 = 72 3/8" (1.84 m)
31 3/4" (80.6 cm)
32 7/8"
(83.5 cm)
13 3/4"
(34.9 cm)
3" (7.6 cm)
1 1/8" (2.9 cm)
