User Guide User Guide
Page 16 PP307 Page 16 PP307

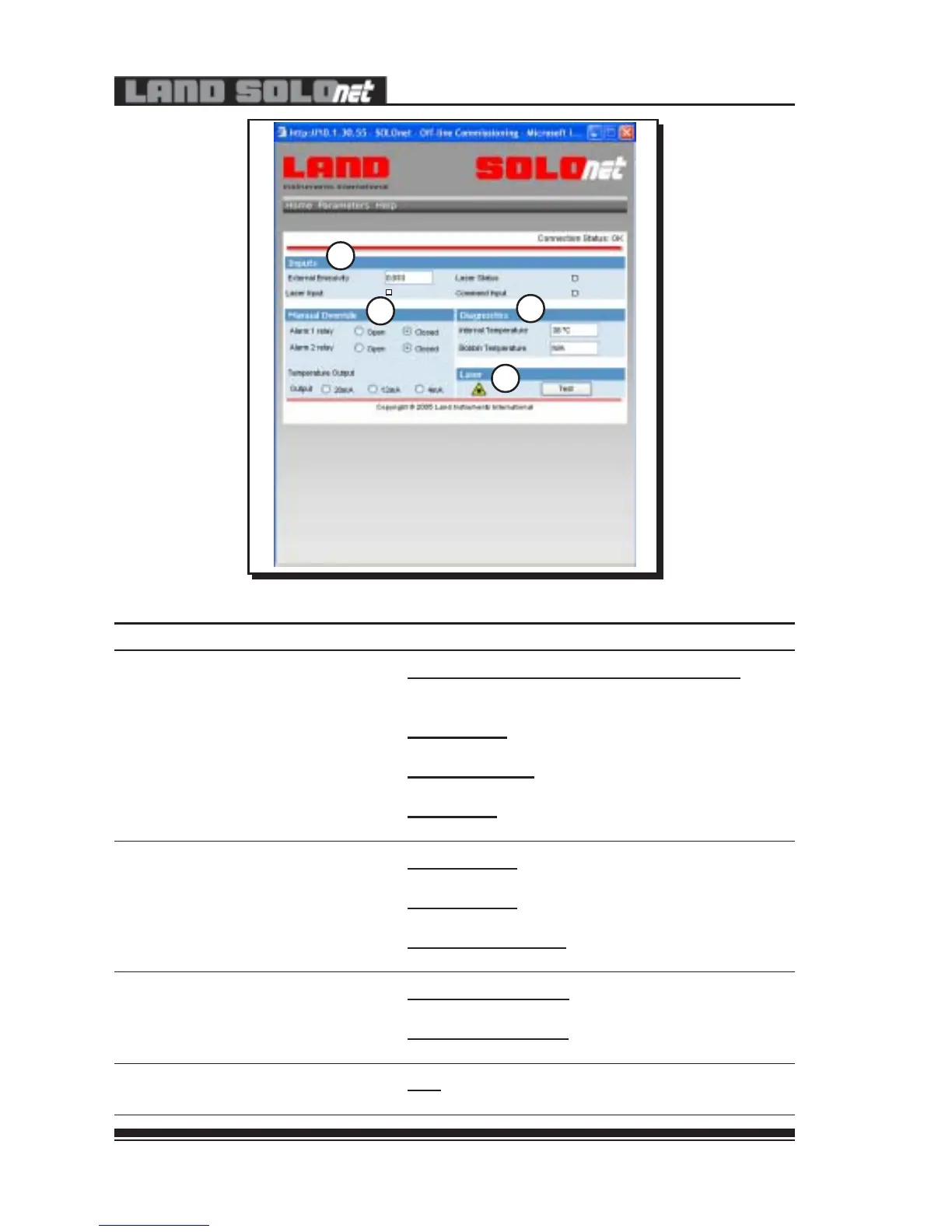

Fig. 12 - SOLOnet web interface ‘Off-line Commissioning (Restricted)’ screen
1
2
3
4
307012
Item Description Function
1 Inputs External Emissivity/External Non-greyness - set by
user, via external 0 to 20mA current (valid range 2 to
20mA - display 0.05 when no signal applied).
Laser Status - White LED (laser passive),
Red LED (laser active).
Command Input - White LED (command input
passive), Red LED (command input active).
Laser Input - White LED (laser contacts open),
Red LED (laser contacts closed)
2 Manual Override Alarm 1 Relay - Open/Closed: User selectable to
allow relay 1 state to be changed and tested externally
Alarm 2 Relay - Open/Closed: User selectable to
allow relay 2 state to be changed and tested externally
Temperature Output - 20mA/12mA/4mA: User
selectable output drive current
3 Diagnostics Internal Temperature - Dynamic internal temperature
of thermometer
Bobbin Temperature - Dynamic bobbin temperature
(ratio thermometers only)
4 Laser Test - Laser activation test (linked to laser switch
input LED)
Fig. 12 - SOLOnet web interface ‘Off-line Commissioning (Restricted)’ screen
1
2
3
4
307012
Item Description Function
1 Inputs External Emissivity/External Non-greyness - set by
user, via external 0 to 20mA current (valid range 2 to
20mA - display 0.05 when no signal applied).
Laser Status - White LED (laser passive),
Red LED (laser active).
Command Input - White LED (command input
passive), Red LED (command input active).
Laser Input - White LED (laser contacts open),
Red LED (laser contacts closed)
2 Manual Override Alarm 1 Relay - Open/Closed: User selectable to
allow relay 1 state to be changed and tested externally
Alarm 2 Relay - Open/Closed: User selectable to
allow relay 2 state to be changed and tested externally
Temperature Output - 20mA/12mA/4mA: User
selectable output drive current
3 Diagnostics Internal Temperature - Dynamic internal temperature
of thermometer
Bobbin Temperature - Dynamic bobbin temperature
(ratio thermometers only)
4 Laser Test - Laser activation test (linked to laser switch
input LED)
