Fibroptic Thermometer
Fibroptic Thermometer
3.6 Replacing the chassis into the thermometer cover
When all internal controls have been set to suit your requirements, replace the
thermometer chassis into the cover.
(i) Ensure that the gasket is fitted correctly on the inner face of the thermometer
rear panel and slide the chassis into the thermometer cover.
(ii) Refer to Fig. 5. Tighten the four captive screws (A) using the 2.5mm Hex
screw driver.
3.7 Electrical Connections
NOTE
Do not connect UNO thermometers to Land
System 4 Signal Processors.
The electrical connections for the thermometer power supply, Peak picker reset and
temperature output are made via the 6-way socket on the rear of the thermometer. See
Fig. 13.

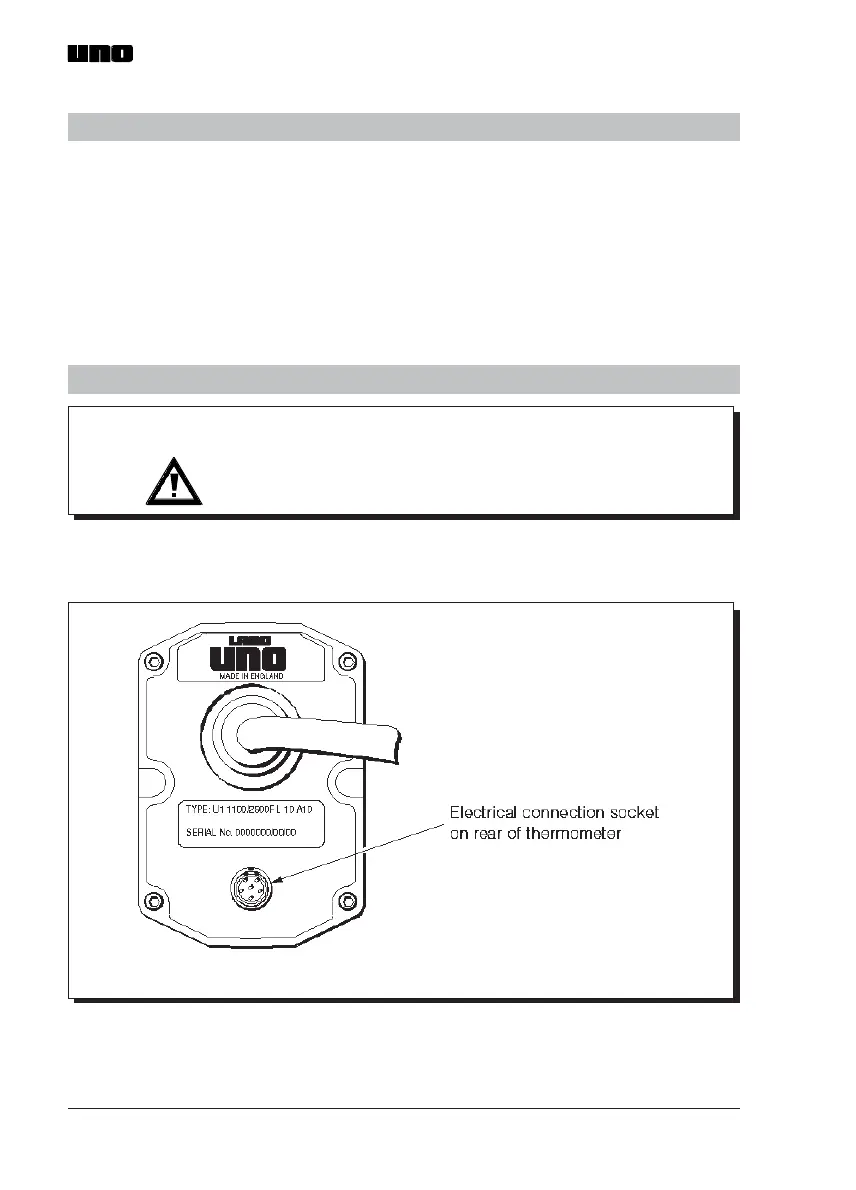

Fig. 13 Location of 6-way electrical connection socket UN970330
Electrical connection to the thermometer must be made by either the pre-wired plug
(LAND Part Nº 029.673) or via the plug housed in the Back Cap (LAND Part Nº 091.562).
3.6 Replacing the chassis into the thermometer cover
When all internal controls have been set to suit your requirements, replace the
thermometer chassis into the cover.
(i) Ensure that the gasket is fitted correctly on the inner face of the thermometer
rear panel and slide the chassis into the thermometer cover.
(ii) Refer to Fig. 5. Tighten the four captive screws (A) using the 2.5mm Hex
screw driver.
3.7 Electrical Connections
NOTE
Do not connect UNO thermometers to Land
System 4 Signal Processors.
The electrical connections for the thermometer power supply, Peak picker reset and
temperature output are made via the 6-way socket on the rear of the thermometer. See
Fig. 13.
Fig. 13 Location of 6-way electrical connection socket UN970330
Electrical connection to the thermometer must be made by either the pre-wired plug
(LAND Part Nº 029.673) or via the plug housed in the Back Cap (LAND Part Nº 091.562).
